LCN

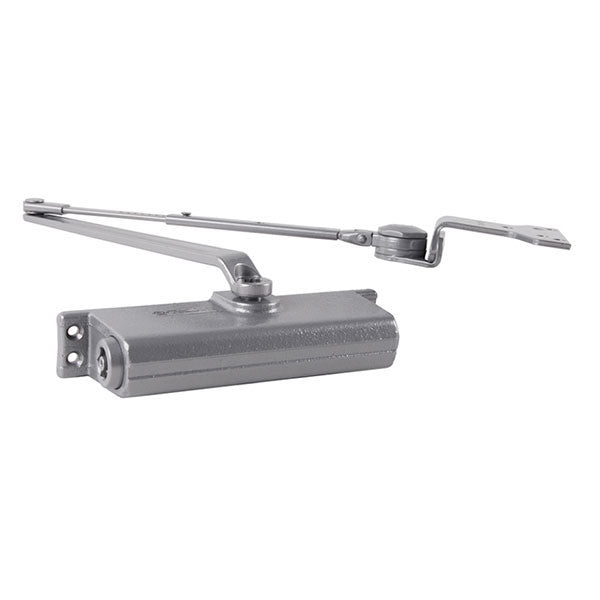

LCN 1261 Hw/PA Door Closer with Hold Open Arm

$231.56
Usually Ships:  1-2 Business Days
  • ANSI Grade-1 Certified
  • Cast Iron Body, Includes Hold Open Arm

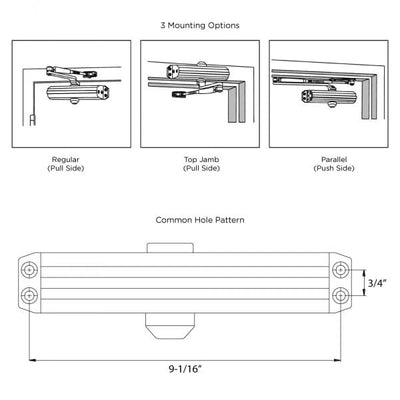

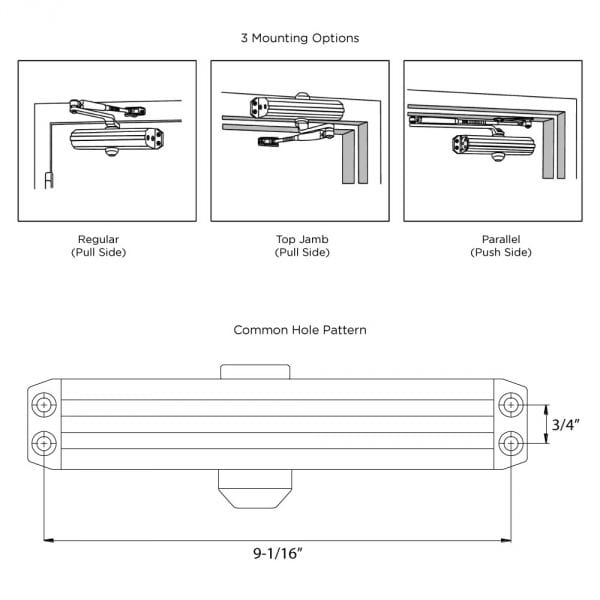

  • Regular, Top Jamb or Parallel Arm Mount

Available Options:

Clear

Product Overview

LCN 1261-Hw/PA Grade 1 Surface Door Closer, Hold Open Arm, PA Shoe, Push or Pull Side Tri Mount Mounting, Size 1 to 5, No Cover, All Weather Fluid

The 1260 Series is designed for light- to medium-duty applications as a fit for the most common commercial footprint, meeting ANSI/BHMA A156.4 Grade 1 and ADA reduced opening force requirements.

Body construction

  • Cast iron cylinder with full-complement bearing
  • 1-3/8 ” diameter piston
  • Heat-treated steel pinion journal

Quality and durability

  • All-weather fluid
  • Forged steel arm
  • 20-year warranty

Installation

  • Universal non-handed
  • Standard Tri-Pack for Regular Pull Side, Top Jamb or Parallel Arm Mounting
  • Peel-n-stick template and optional Quick Fix bracket kit
  • Adjustable spring sizes 1-5
Body Construction

Cast Iron Body
Brand

LCN
Buy American Act Compliance

Meets BAA - Buy American Act
Certifications

Tested and certified under ANSI Standard A156.4 - Grade-1
Cover

None
Door Application

Hollow Metal Wood or Aluminum
Fasteners

Standard Universal Screw Pack includes Self Reaming and Tapping Screws (SRT) Machine Screws Wood Screws and Thru Bolts
Finish

AluminumDark BronzeLight BronzeBrassBlack
Finishes

691 Light Bronze693 Black696 Brass689 Aluminum695 Dark Bronze
Fluid

All Weather Fluid
Handing

Non-Handed
Mounting Options

Regular (Pull Side)Parallel Arm (Push Side)Top Jamb (Push Side)
Spring Size

Adjustable Spring Size 1-5
Templating (Hole Pattern)

3/4" x 9-1/16"
Usage

Standard Duty
Warranty

20 Year Limited
