Product Overview

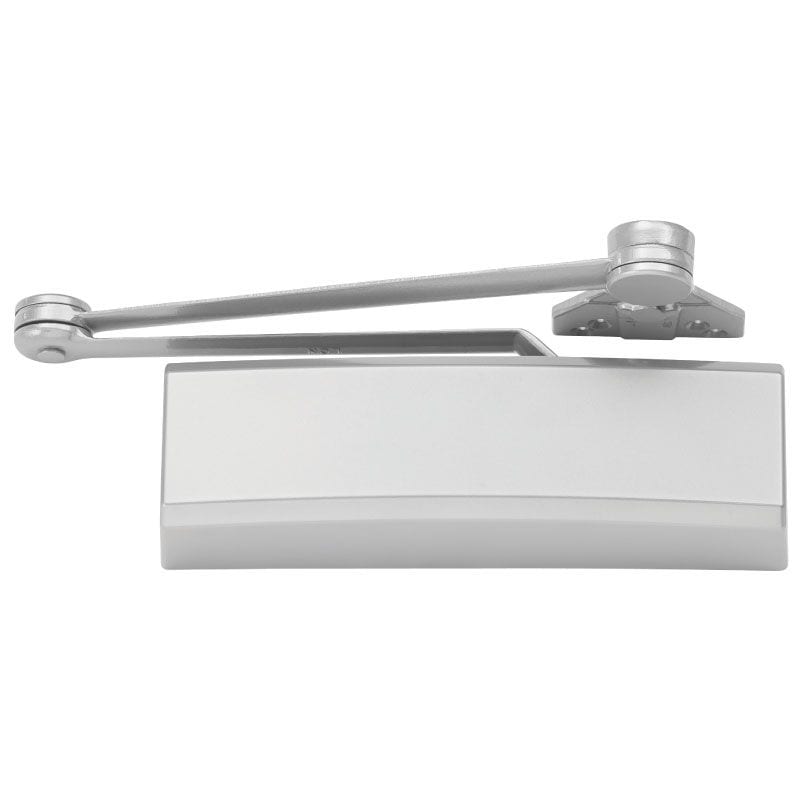

LCN 4050A EDA Grade-1 Door Closer with Extra Duty Arm
The 4050 Series cast aluminum closer is engineered for durability and built tough to excel in the harsh environments of high frequency, highly abusive traffic areas. It is ideal for commercial building applications and competitive specification situations that demand a combination of quality, reliability and value.
This cast aluminum door closer offers premium features like powder coating, a full complement bearing, All Weather Fluid and a 25 year warranty.
- Cast aluminum body
- Includes extra duty arm
- All-weather fluid
- UL 10C Fire-Rated
- Meets BAA – Buy American Act
| Body Construction |
Cast Aluminum Body |
|---|---|
| Brand |
LCN |
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
| Certifications |
Tested and certified under ANSI Standard A156.4 - Grade-1 |
| Cover |
Full Cover |
| Door Applications |
Hollow Metal or Wood |
| Finish |
Dark BronzeBrassBlackAluminumLight Bronze |
| Finishes |
695 Dark Bronze691 Light Bronze693 Black696 Brass689 Aluminum |
| Fire Rating |
UL and cUL Listed - up to 3 Hours (Non-Rated with Hold Open Arms) |
| Fluid |
All Weather Fluid |
| Handing |
Non-Handed |
| Mounting Options |
Parallel Arm (Push Side) |
| Special Feature |
Extra Duty Parallel Arm |
| Spring Size |
Adjustable Spring Size 1-6 |

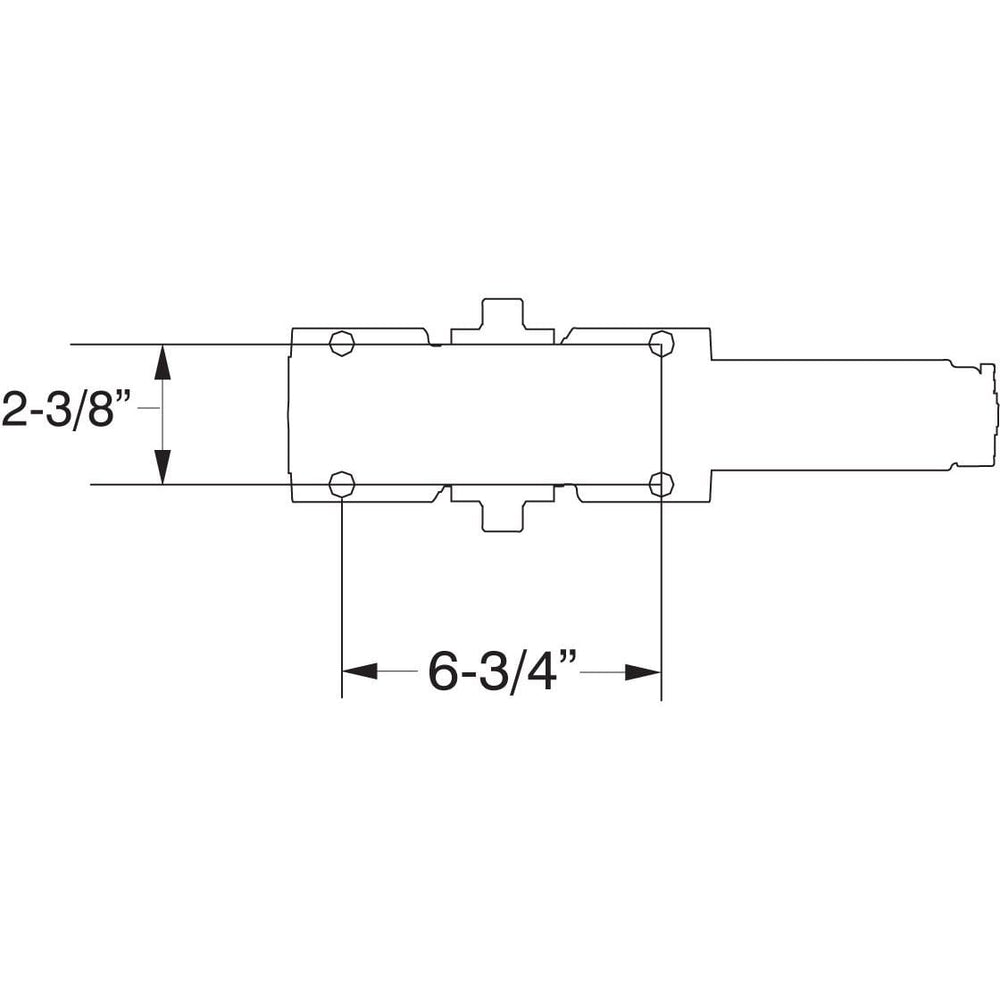

| Templating (Hole Pattern) |
2-3/8" x 6-3/4" |
| Usage |
Heavy Duty |
| Warranty |
25 Years |
