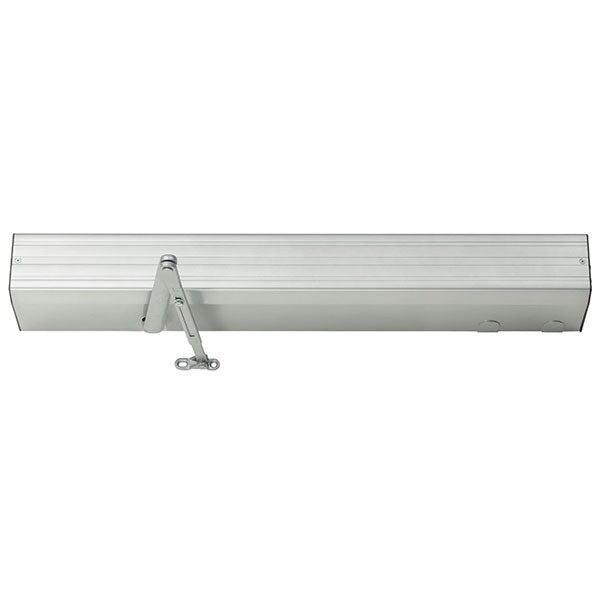

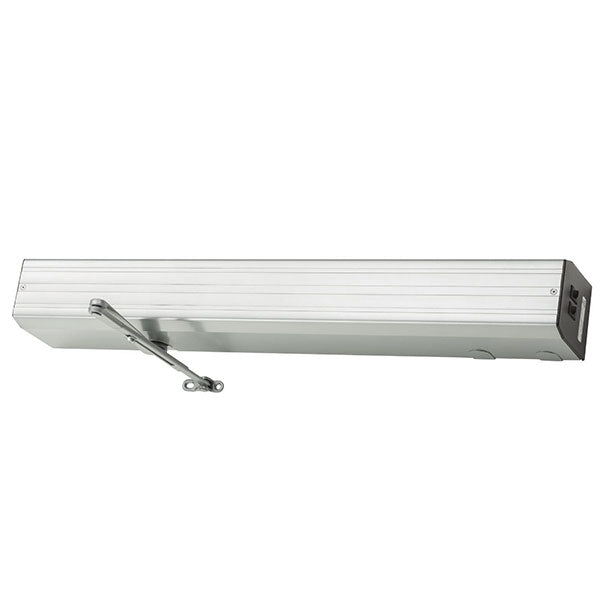

LCN 4642 Auto Equalizer Power Operator - Push Side Mount

$4,651.29
This item ships FREE! Usually Ships:  3-5 Business Days
  • On-board power supply, Plug-and-play connections
  • Integrates a modified heavy-duty 4040XP Series cast iron cylinder
  • Non-handed, push-side mount

Available Options:

Clear

Product Overview

LCN 4642 Grade 1 Regular Arm Auto Equalizer Door Operator, Push Side Mounting, Electrohydraulic

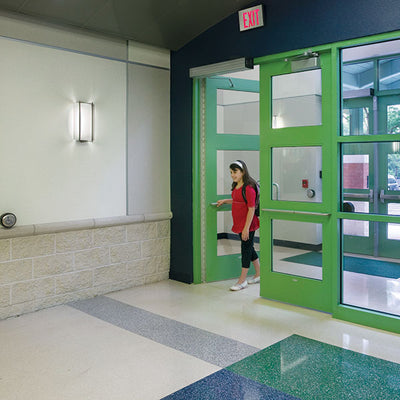

The 4640 auto equalizer is LCN’s smart and reliable electrically powered low-energy automatic operator. It provides easy access for people with disabilities or the elderly. Designed primarily for manual opening applications that occasionally required automatic opening. They are backed by a 2-year limited warranty, are UL and cUL listed, meet ANSI/BHMA 156.19, meet the American Disabilities Act (ADA), and ANSI A117.1 requirements for accessibility.

  • Non-sized cylinders for interior doors to 4’6” and exterior doors to 3’6”
  • Non-handed design
  • Meets ADA requirements (power mode)

Arm Options

  • REG - 4640-3077 Regular Arm (REGARM)
  • LONG - Long Arm (LONG), Includes long rod and shoe, 4640-79LR for deep reveals

CS Option

  • CS - Provides concealed on/off power switch (optional 8310-806K key switch available when CS option is selected)

Arm

LONG (Long Arm)REG (Regular Arm)
Body Construction

Cast Iron Body Full Complement Bearing 1-1/2" Diameter Piston 3/4" Diameter Double Heat Treated Pinion Journal
Brand

LCN
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Certifications

Grade 1 - ANSI A117.1 A156.19 UL 10C ADA 100 Hour Salt Spray Meets BAA - Buy American Act
Cover

Metal
Fasteners

Wood and Machine Screws
Finish

BlackBrassAluminumLight BronzeDark Bronze
Finishes

695 Dark Bronze691 Light Bronze693 Black696 Brass689 Aluminum
Fluid

All Weather Fluid
Handing

Non-Handed
Mounting

Top jamb (Push Side)
Power Switch

StandardCS Option (concealed on/off power switch)
Spring Size

Adjustable Spring Size 2-5
Usage

Heavy Duty
Warranty

2 Years
