Marks USA IQ7LITE Standalone Electronic Rim Exit Device Keypad Trim

$567.14
This item ships FREE! Usually Ships:  10-20 Business Days
  • Discontinued 2025

Available Options:

Clear

Product Overview

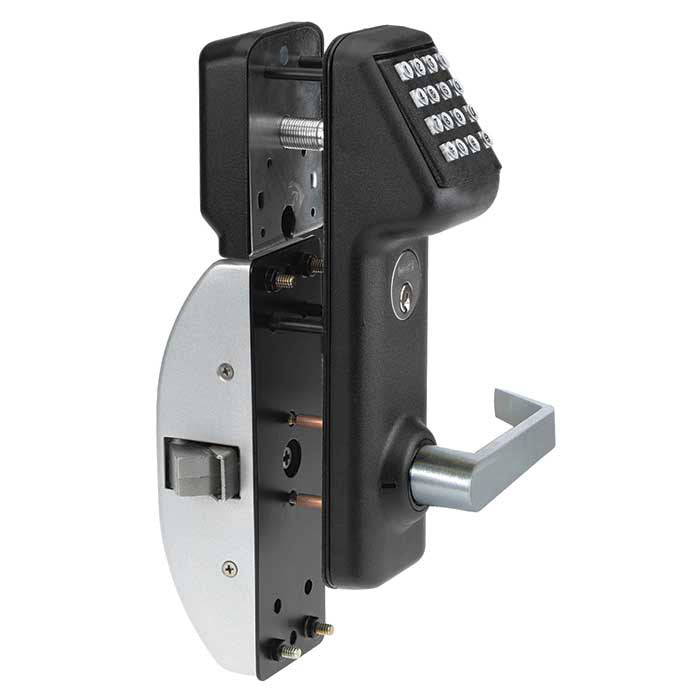

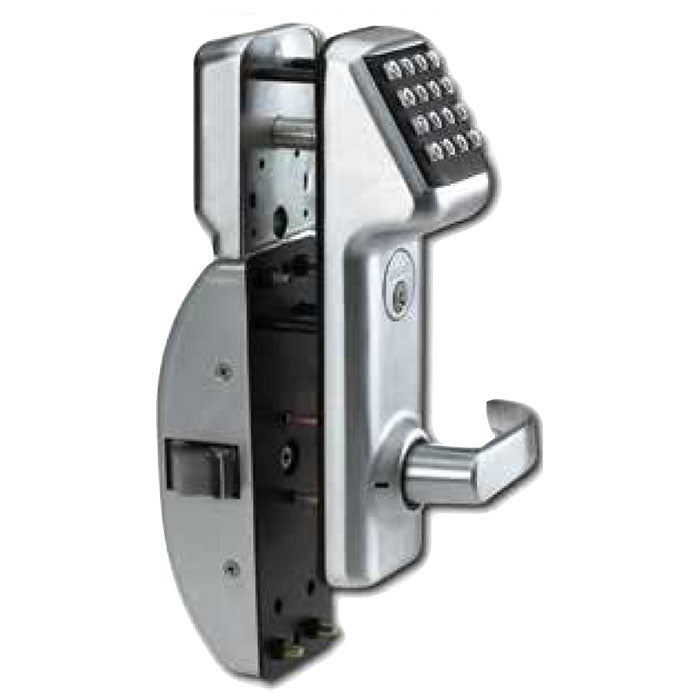

Marks IQ7LITE Rim Exit Device Interface, Standalone, Keypad Programmable, Passage & PIN Only Modes, 2-Wire Remote Release, Weatherproof, Less Adapter Plate


No-nonsense access control right out of the box


The i-Qwik Line is Marks USA freestanding access control locksets. They allow doors to be locked or unlocked via a user-programmable keypad, rather than a key. All i-Qwik Line Locksets feature the "CableGard™" to protect the wiring going through the door.
  • Adapter plate required (sold separately)
  • CableGard protects wires for easy installation
  • Key Override: Marks “C” keyway, 6 pin w/2 keys
  • Pre-programmed code
  • Keypad programmable
  • 160 User codes
  • Temporary user codes
  • Passage mode
  • Pin only mode
  • Double code entry for maximum security
  • Two-wire remote release
  • 16 Digit tactile metal keypad
  • Weatherproof standard
  • Audible & visible entry indicator
  • Audible low battery alert
  • 4 “AA” batteries; 100,000 operations
  • Easy installation
Adapter Plates
Rim exit device interface with a choice of adapter plates to fit most rim exit devices (available separately) are listed below:
  • E7071 - Adapter Plate for Von Duprin 98/99 Rim Devices / Marks M9900 / Detex Advantex 10 Rim Device
  • E7073 - Adapter Plate for Yale/Accentra 7100 Rim Device / Corbin Russwin ED5200 Rim Device
  • E7074 - Adapter Plate for Dorma 9300 Rim Device
  • E7075 - Adapter Plate for Sargent 8800/PE80 Rim Devices / Arrow 3800 Rim Device
Brand

Marks USA
Finishes

US19 Flat Black
Lock Type

Exit Device Trim
Lock Function

Pushbutton Keypad
Usage

Medium Duty
ANSI Grade

ANSI Grade-2
Fire Rating

Fire Rated - UL10C - Positive Pressure
ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code
Keyway

Schlage C Keyway
Door Thickness

1-3/4"
Power

4 AA batteries
Compatible Devices

Adapter plates operate most manufacturers rim exit devices. Adapter plates for mounting exit devices are sold separately.
Warranty

Lifetime Mechanical Warranty; 2 Year Electronic
