McKinney

McKinney 1001 Double Acting Spring Hinge for Wood Doors

$83.58
Usually Ships:  3-5 Business Days
  • Permits doors to open in either direction and automatically return to closed
  • Designed for use with wood doors
  • Jamb flange surface applied to jamb

Available Options:

Clear

Product Overview

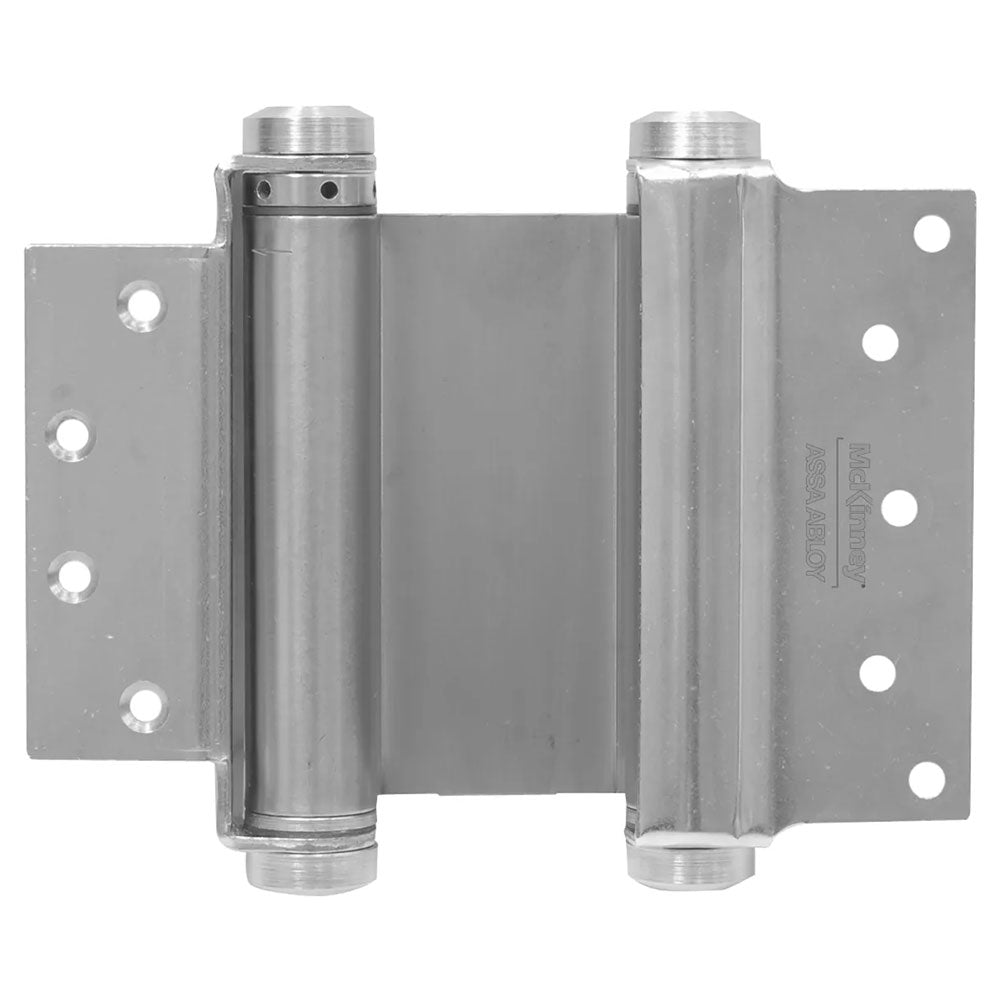

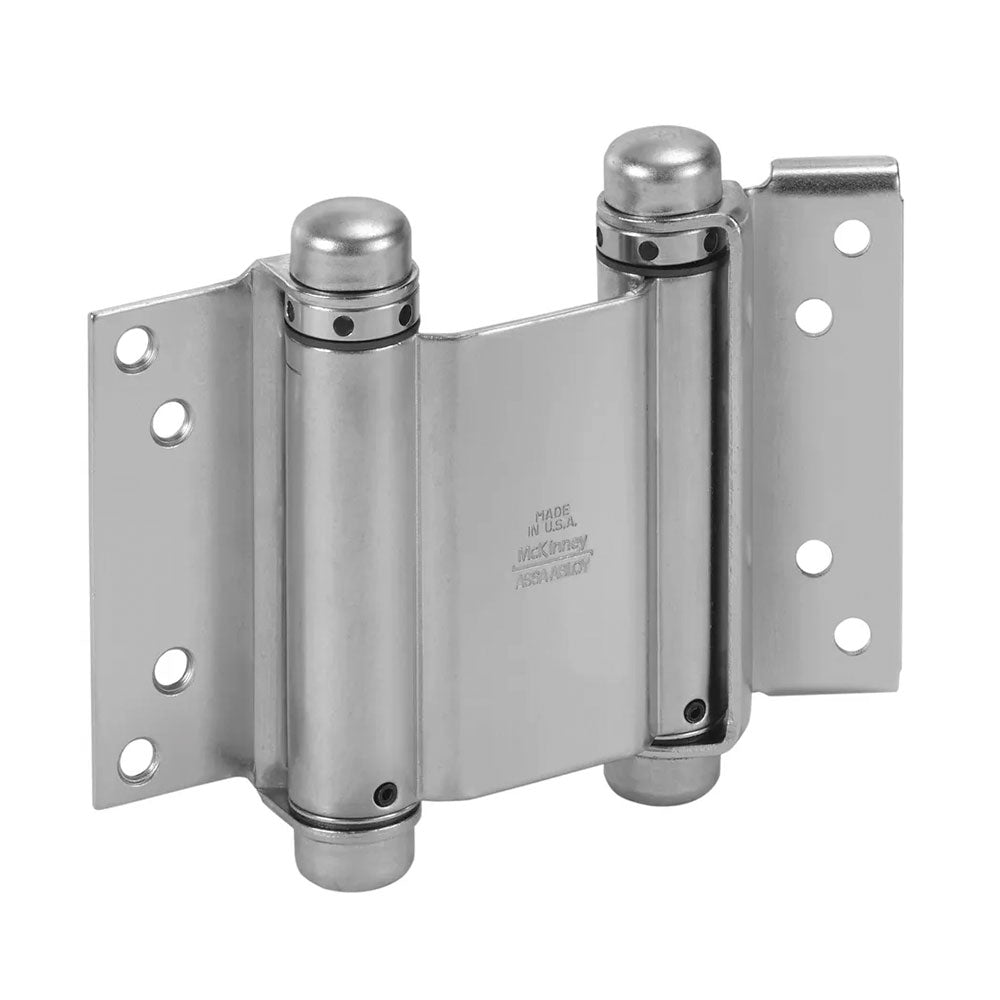

McKinney 1001 Full Mortise Double Acting Spring Hinge, Satin Chrome Finish


The 1001 double-acting spring hinge is a non-handed, non-template hinge made for wood doors. It has a steel base material, and a square corner shape. The jamb flange surface is applied to the jamb and certain models can hold doors up to 145 lbs.
Features
  • Jamb flange surface applied to jamb
  • Non-template
  • Non-handed
  • Do not use on doors with hinge edge beveled
  • US26D Finish
  • Recommended for wood doors not weighted with plate glass or heavy hardware
  • Packed with all wood screws
  • Door flange mortised or surface applied to edge of door
Benefits
  • Steel base material
  • ANSI Cross Reference K81041
  • Square Corner Shape

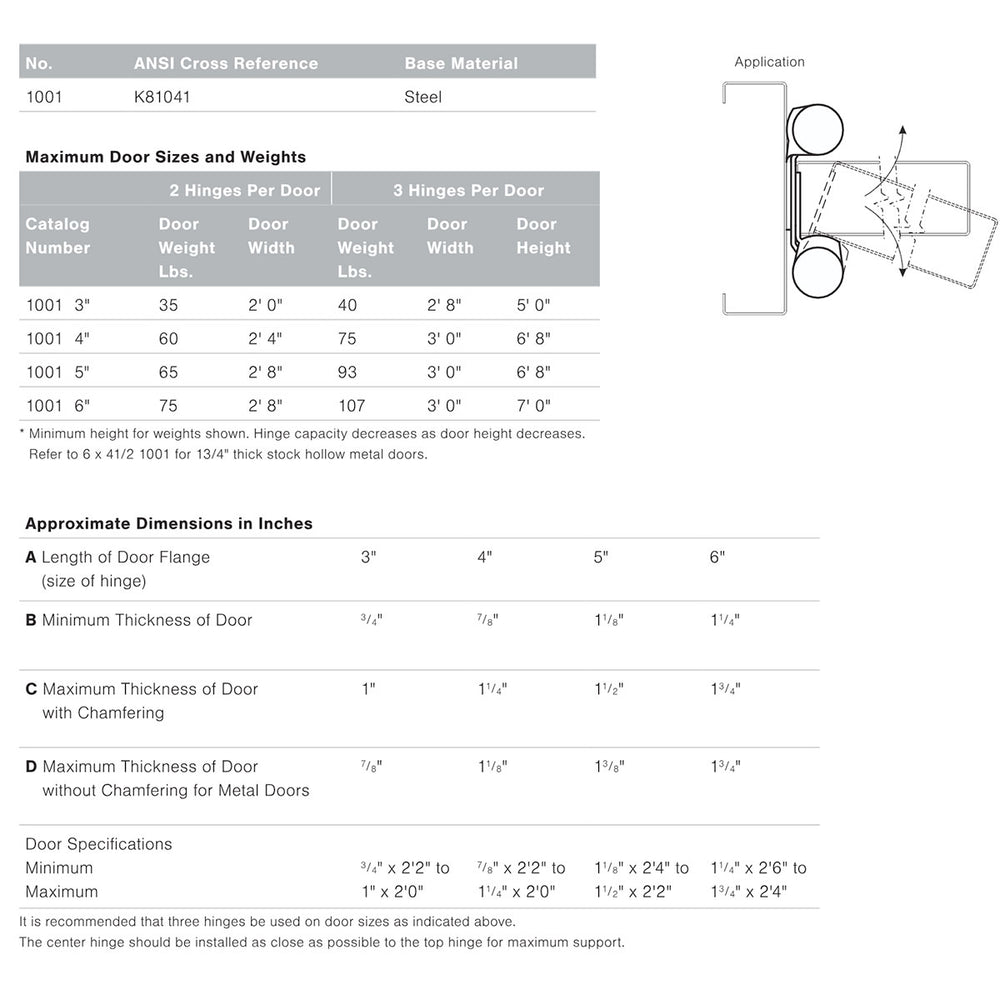

  • For 2' to 3' wide doors
  • Door Thickness can range from 3/4" to 1-3/4" depending on the model
  • Maximum weight of the door can range from 35 lbs to 145 lbs depending on the model and number of hinges used
