Product Overview

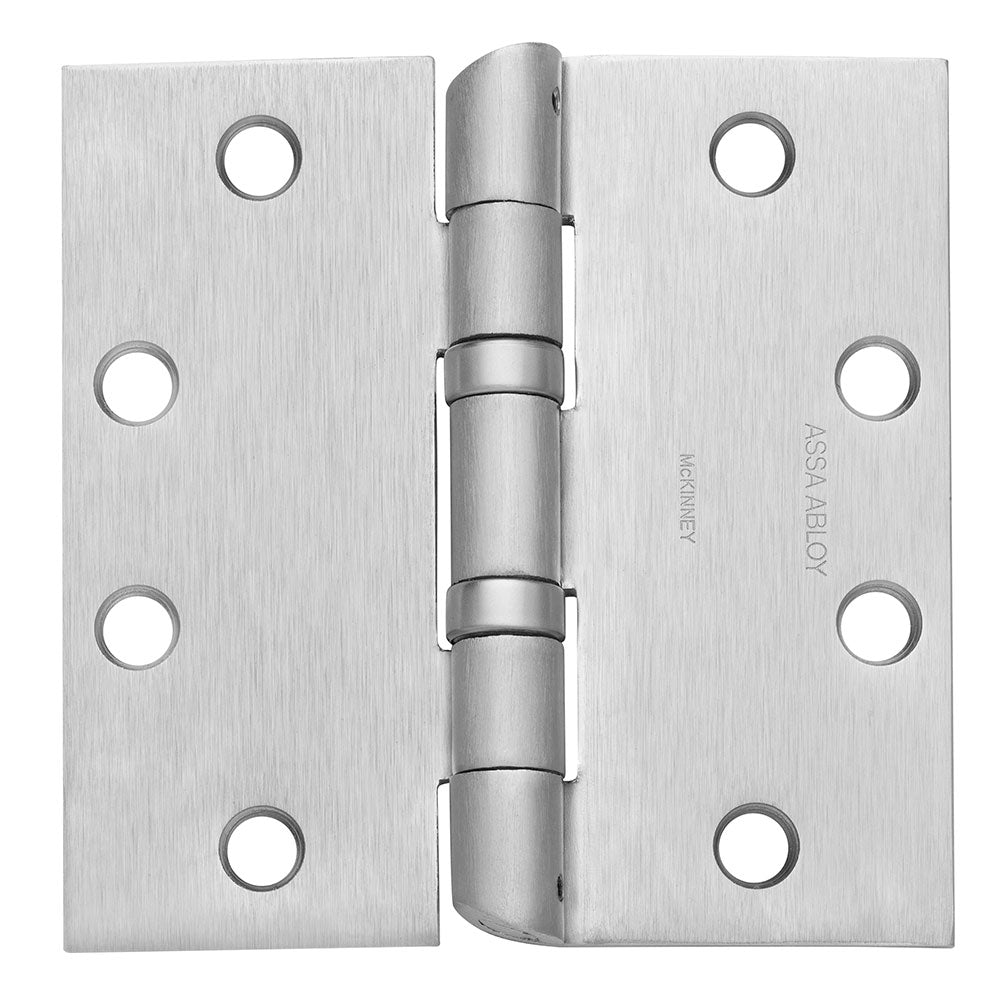

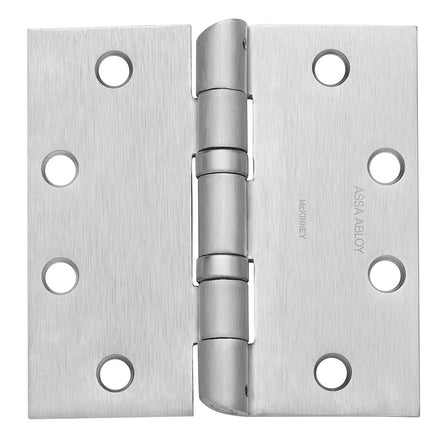

McKinney HTA2714 Full Mortise Steel Five Knuckle Standard Weight Hinge, Hospital Tip
The TA2714 (steel) are standard weight five knuckle full mortise hinges used for common flush door/frame/wall applications and recommended for standard weight, medium frequency doors, or doors with closing devices.
- TA: Oil impregnated bearing hinge
- Dependable and long-lasting
- Recommended for standard weight, medium frequency doors, or doors with closing devices
- Packed with wood and metal screws
- Suites with Rockwood pulls, coat hooks, and door stops
- Pairs well with Corbin Russwin and Sargent decorative levers
- UL listed, NFPA 80 Compliant
| Brand |
McKinney |
|---|---|
| Finishes |
639 Satin Bronze, 652 Satin Chrome |
| Hinge Type |
Full Mortise |
| Special Feature |
Hospital Tip |
| Size |
4.5" x 4", 4.5" x 4.5", 5" x 4.5" |
| Knuckles |
Five |
| Bearings |
Oil Impregnated Bearing |
| Gauge |
0.123 |
| Usage |
Medium Duty |
| ANSI/BHMA Standard |
Meets ANSI/BHMA A156 .1 |
| Fire Rating |
Certified to meet UL standards (3hr) |
| Fasteners |
Packed with wood and metal screws |
