McKinney

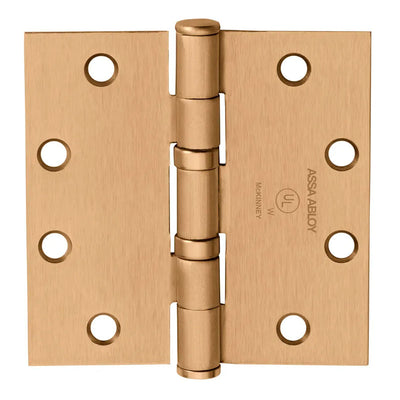

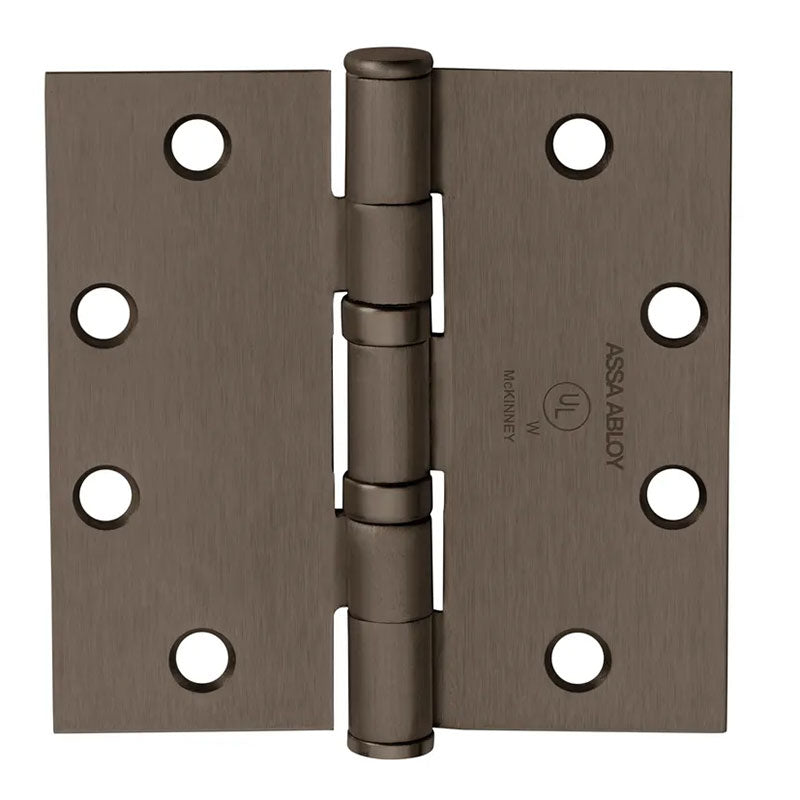

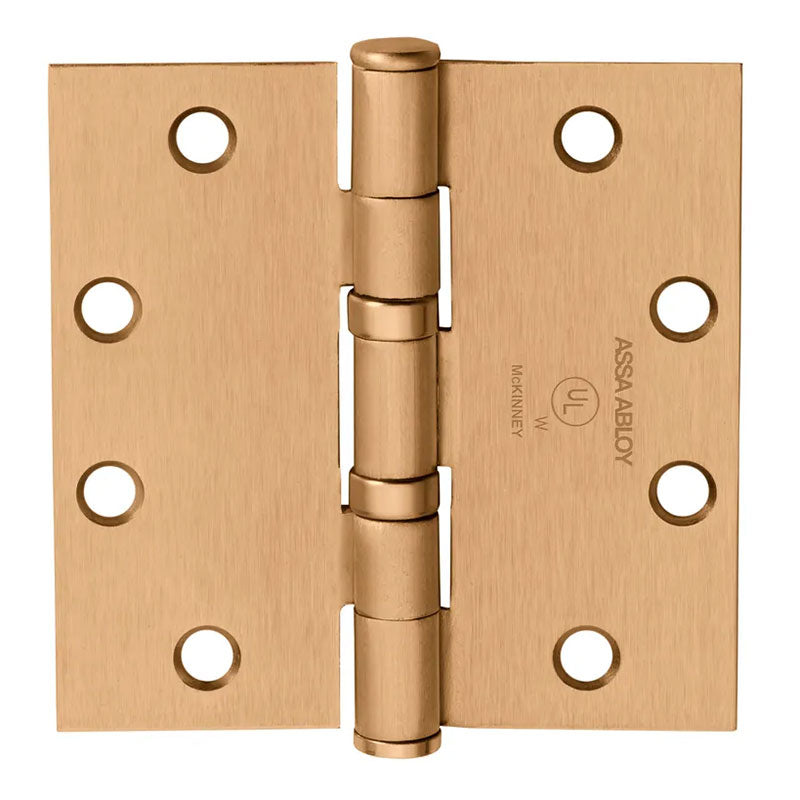

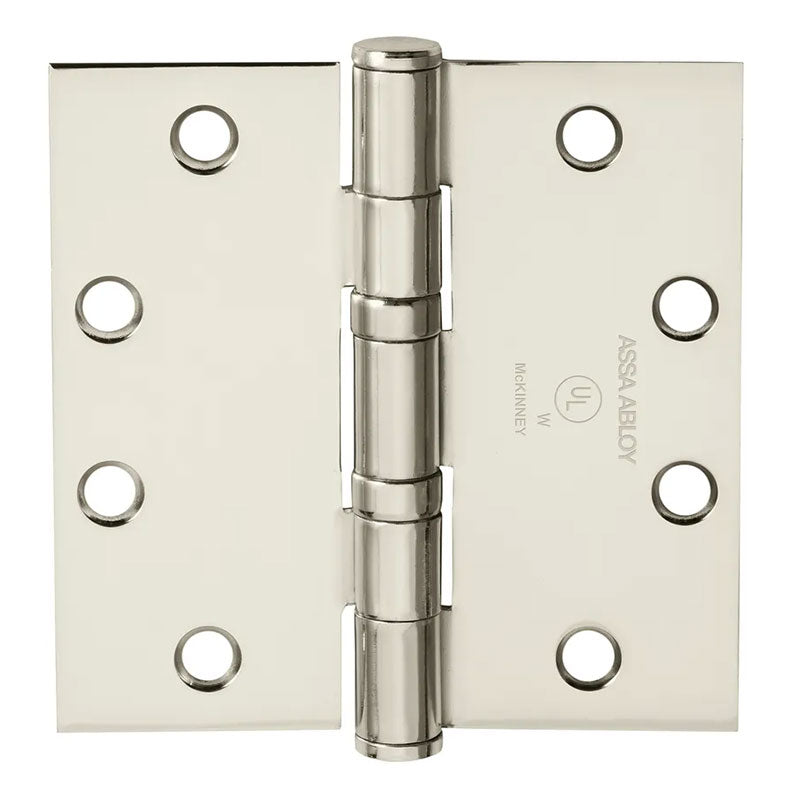

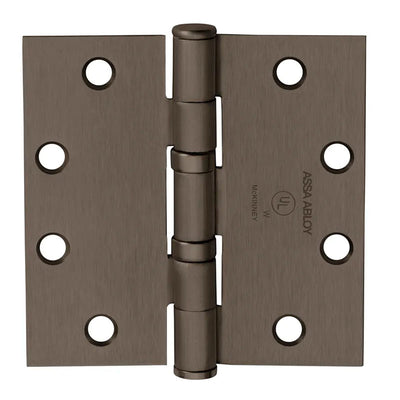

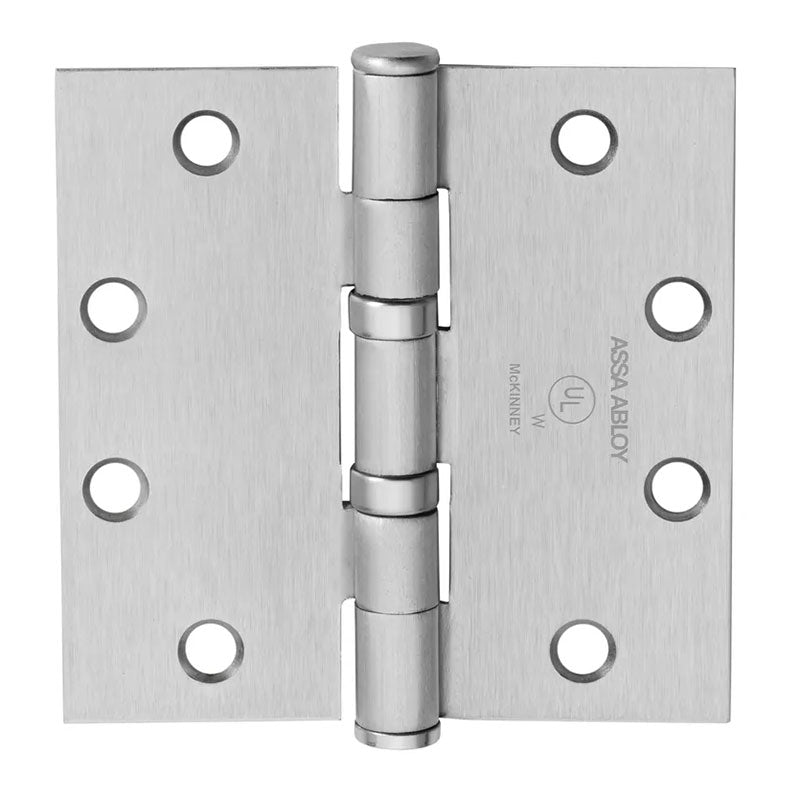

McKinney TA2714 - 4.5" x 4" Bearing Hinge

$6.83
Usually Ships:  3-5 Business Days
  • Meets ANSI/BHMA A156.1
  • .134 standard weight
  • Five-knuckle, template hole pattern

Available Options:

Clear

Product Overview

McKinney TA2714 4-1/2 x 4 Full Mortise Steel Five Knuckle Standard Weight Hinge, Oil Impregnated Bearing, Square Corner


The TA2714 (steel) are standard weight five knuckle full mortise hinges used for common flush door/frame/wall applications and recommended for standard weight, medium frequency doors, or doors with closing devices.
  • TA: Oil impregnated bearing hinge
  • Dependable and long-lasting
  • Recommended for standard weight, medium frequency doors, or doors with closing devices
  • Packed with wood and metal screws
  • Suites with Rockwood pulls, coat hooks, and door stops
  • Pairs well with Corbin Russwin and Sargent decorative levers
  • UL listed, NFPA 80 Compliant
Brand

McKinney
Finishes

10BE Satin Bronze Powder Coat, 632 Bright Brass, 633 Satin Brass, 639 Satin Bronze, 640 Oil Rubbed Bronze, 646 Satin Nickel, 651 Bright Chrome, 652 Satin Chrome, BSP Black Suede Powder Coat, USP Prime Coat
Hinge Type

Full Mortise
Size

4.5" x 4"
Knuckles

Five
Bearings

Oil Impregnated Bearing
Gauge

0 .134
Usage

Medium Duty
ANSI/BHMA Standard

Meets ANSI/BHMA A156 .1
Fire Rating

Certified to meet UL standards (3hr)
Fasteners

Packed with wood and metal screws
