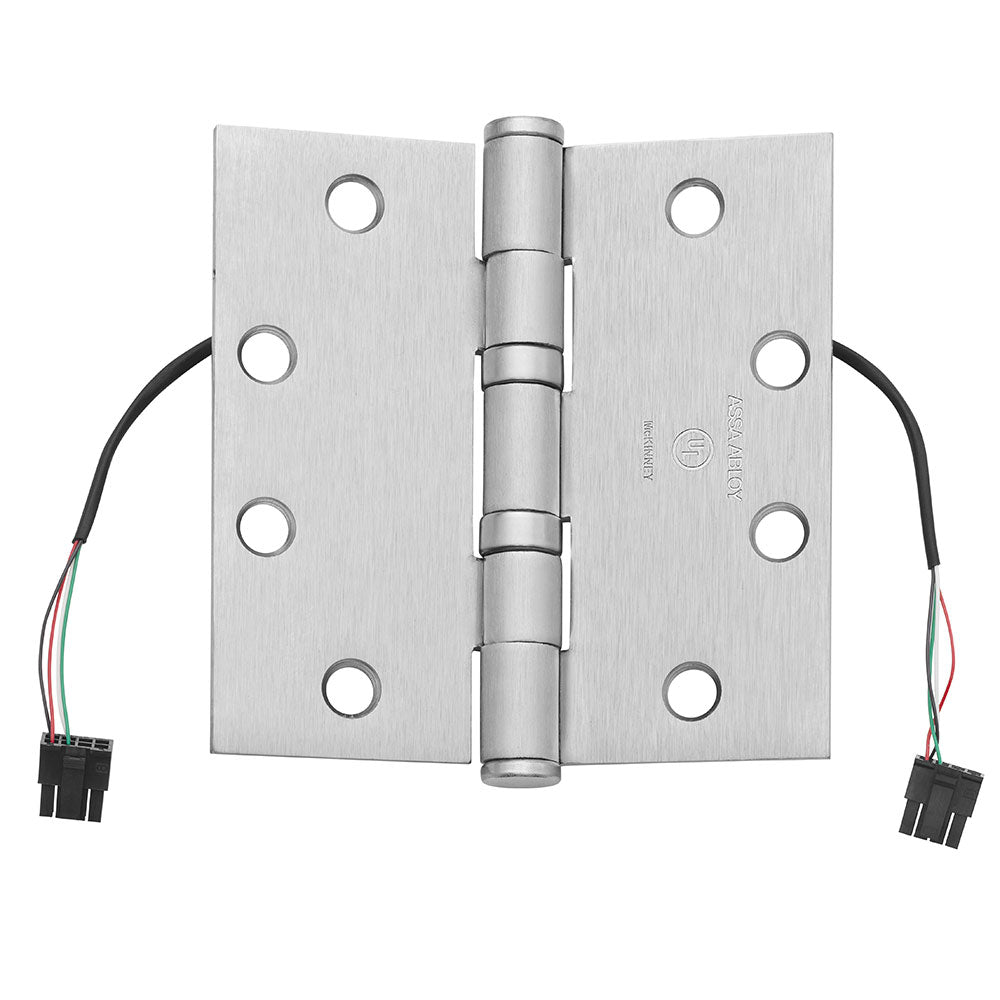

McKinney TA2714 QC4 4.5" x 4.5" ElectroLynx Quick Connect Full Mortise Electrified Hinge, 4 Wire

$115.63
Usually Ships:  1-2 Business Days
  • Allows electrical currents to pass from jamb through the hinge into door
  • Five-knuckle, template hole pattern
  • QC4 - 2 circuits

Available Options:

Clear
Added to Cart

Product Overview

Each hinge features concealed plug connectors (QC) that eliminate the need for separate or exposed wiring. Standard connectors make installation quick and simple. Brass eyelets add protection and durability.

  • Electric hinges allow a constant flow of current from the power source through the hinge to electrified door hardware. No external wires can be seen, eliminating tampering and improving the aesthetics of the door opening
  • For 4 amp continuous @ 24 volts AC or DC per circuit, 28 gauge multi-strand wires are used. A pigtail is provided for connection to the source wiring
  • Wires are coordinated to work with other ASSA ABLOY Group brands electro-mechanical hardware
ANSI/BHMA Standard

Meets ANSI/BHMA A156 .1
Brand

McKinney
Finish

Satin Chrome
Finishes

652 Satin Chrome
Fire Rating

UL Listed
Usage

Medium Duty
