McKinney TA714 - 4.5" x 4.5" Concealed Bearing Hinge

$11.46

Usually Ships: 1-2 Business Days

Available Options:

Finish

Quantity:

Added to Cart

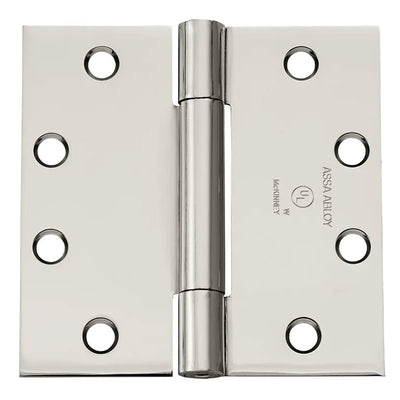

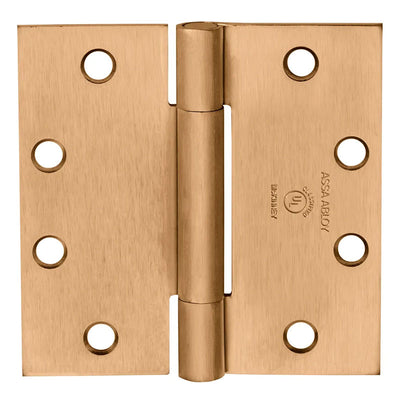

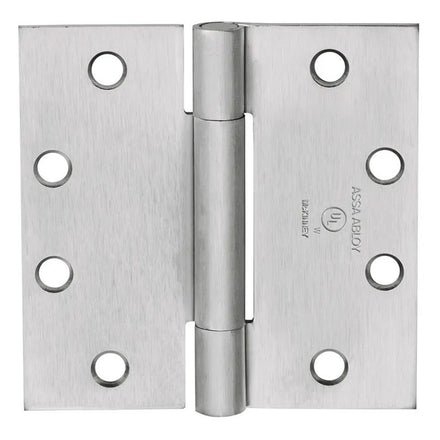

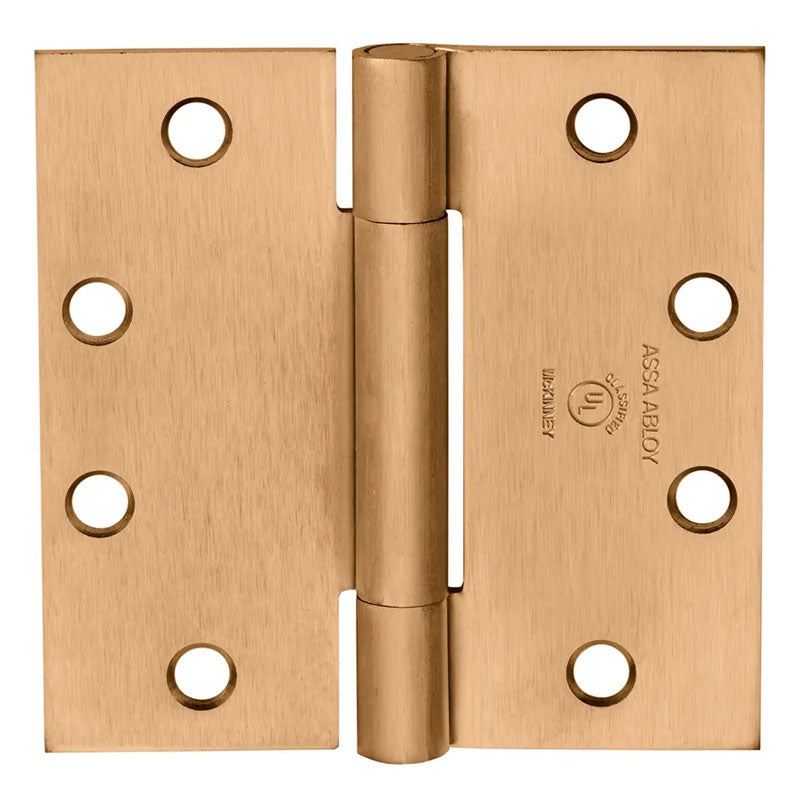

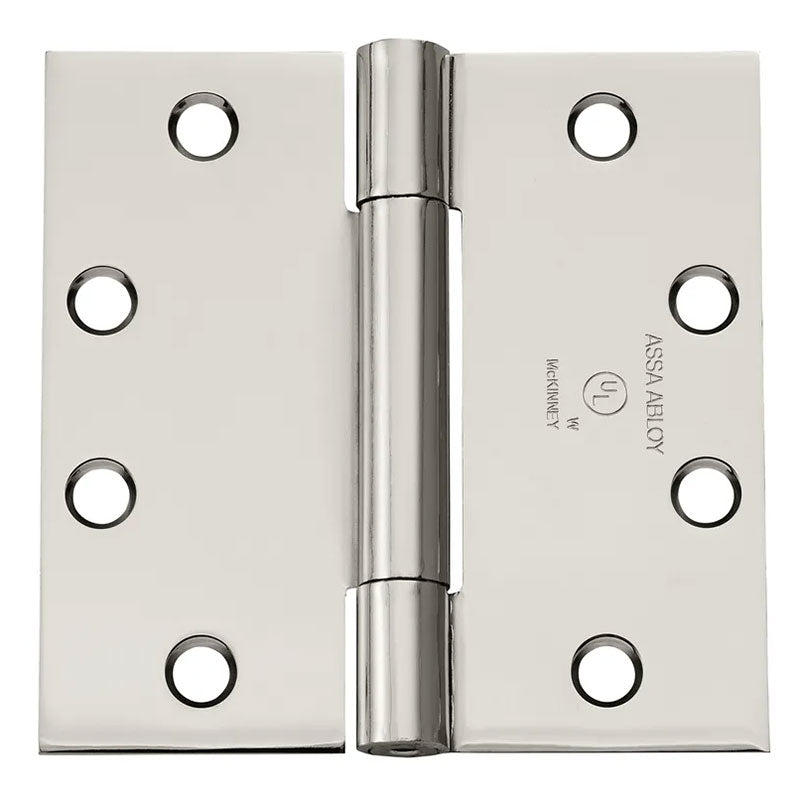

McKinney TA714 4-1/2 x 4-1/2 Full Mortise Standard Weight 3 Knuckle Hinge, Concealed Bearing, Square Corner

The TA714 (steel) is a standard weight three knuckle hinge, recommended for standard weight, medium frequency doors, or doors with closing devices.

Concealed bearing hinge
Anti-friction type bearings at both joints
Dependable and long-lasting
Recommended for standard weight, medium frequency doors, or doors with closing devices
Packed with wood and metal screws
Suites with Rockwood pulls, coat hooks, and door stops
Pairs well with Corbin Russwin and Sargent decorative levers
UL listed, NFPA 80 Compliant

Brand	McKinney
Finishes	10BE Satin Bronze Powder Coat, 632 Bright Brass, 633 Satin Brass, 639 Satin Bronze, 640 Oil Rubbed Bronze, 646 Satin Nickel, 651 Bright Chrome, 652 Satin Chrome, BSP Black Suede Powder Coat, USP Prime Coat
Size	4.5" x 4.5"
Hinge Type	Full Mortise
Knuckles	Three
Bearings	Concealed Bearing
Gauge	0 .134
Usage	Medium Duty
ANSI/BHMA Standard	Meets ANSI/BHMA A156 .1
Fire Rating	Certified to meet UL standards (3hr)
Fasteners	Packed with wood and metal screws
