NGP (National Guard) 9990 Fire Door Top Gap Solution for Excessive Clearance

$279.83
Usually Ships:  5-10 Business Days
  • Suitable for use on gaps up to 1-1/2”
  • Door cap with intumescent
  • Helps bring fire doors back into compliance

Available Options:

Clear

Product Overview

National Guard Products 9990 Fire Door Top Gap Solution — Up To 90 Minutes

UL Certified for Door Top Gaps — Measuring up to 1-1/2"

  • 90-Minute Rated — for Use on UL10B and UL10C Wood or Hollow Metal Fire Doors
  • No Need to Move Hardware at the Top of the Door
  • Works on doors with Parallel arm closers
  • Certified for use on doors with Concealed Vertical Rod Exit Devices or Automatic Flush Bolts, refer to Installation Instructions
  • Available in 36" and 48" Lengths
  • End Caps Furnished Standard
  • Non-handed
  • Patent Pending

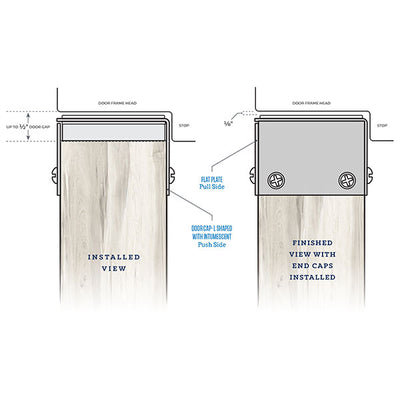

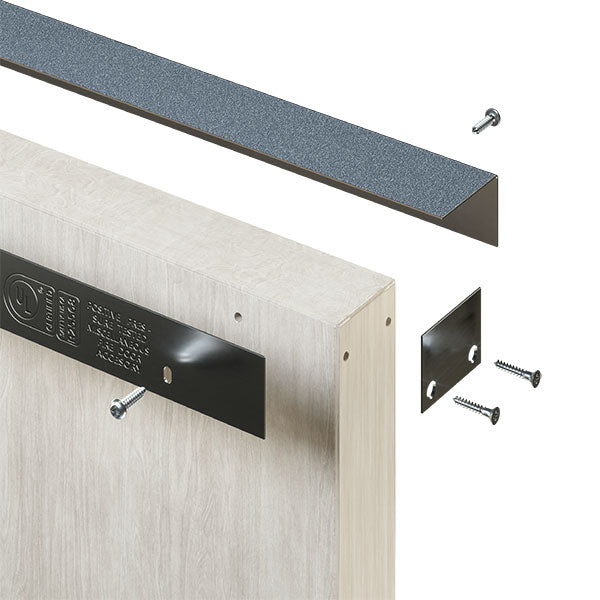

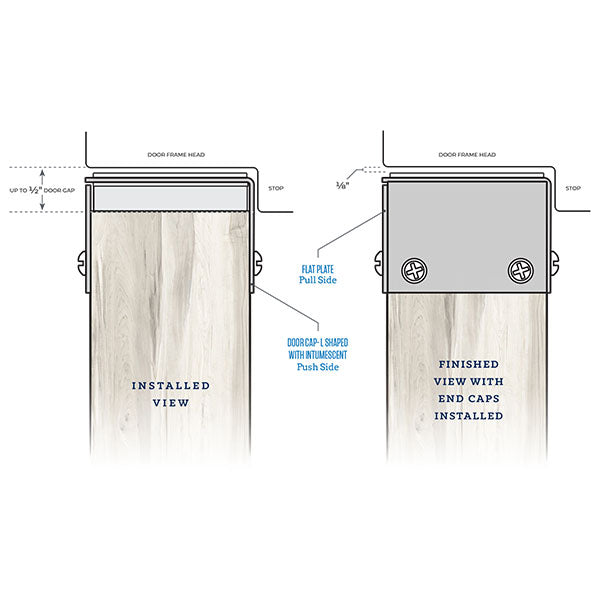

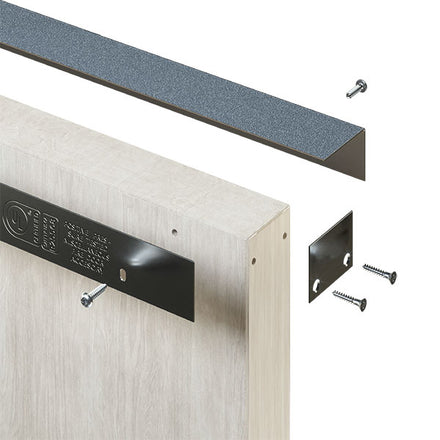

PRODUCT CONSISTS OF:

  • #304 Brushed Stainless Steel Flat Plate - Pull Side

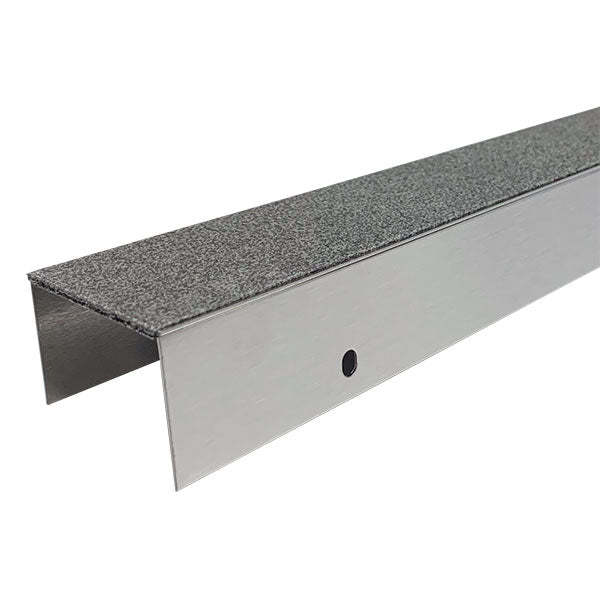

  • #304 Brushed Stainless Steel Intumescent Cap — Push Side
  • #304 Brushed Stainless Steel End Caps
  • #6 X 3/4” Stainless Steel SMS Furnished

FINISH:

  • Brushed Stainless Steel

STANDARDS:

  • CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 90 minute with excessive door top clearances measuring up to 1/2".
  • POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 90 minute with excessive door top clearances measuring up to 1/2".
Brand

NGP (National Guard)
Finish

Stainless Steel
Fire Rating

90-Minute Rated — for Use on UL10B and UL10C Wood or Hollow Metal Fire Doors
Insert/Seal Type

Intumescent
Length

48"36"
