Product Overview

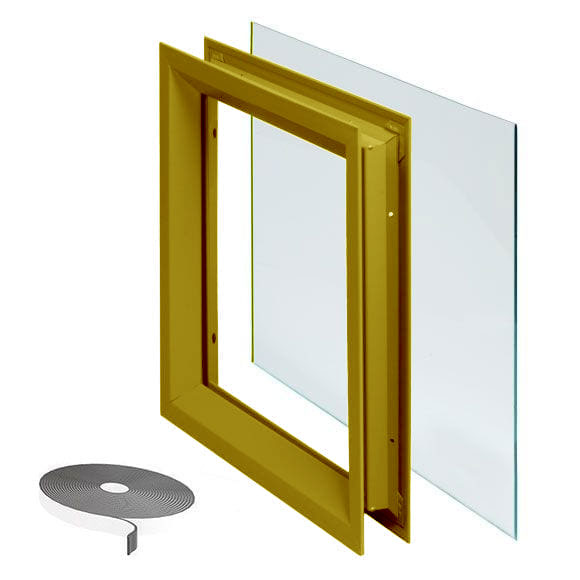

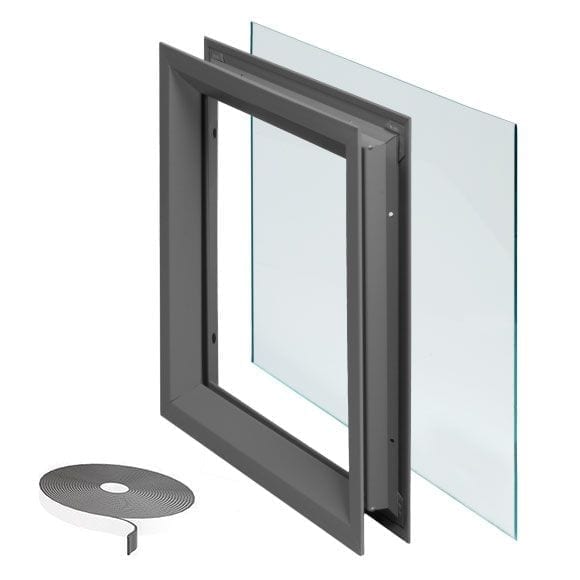

National Guard Products L-FRA100-PYRAN-F-GT-118 Complete Low Profile Lite Kit for 1-3/4" Thick Doors with Pyran Platinum F Glass and Glazing Tape

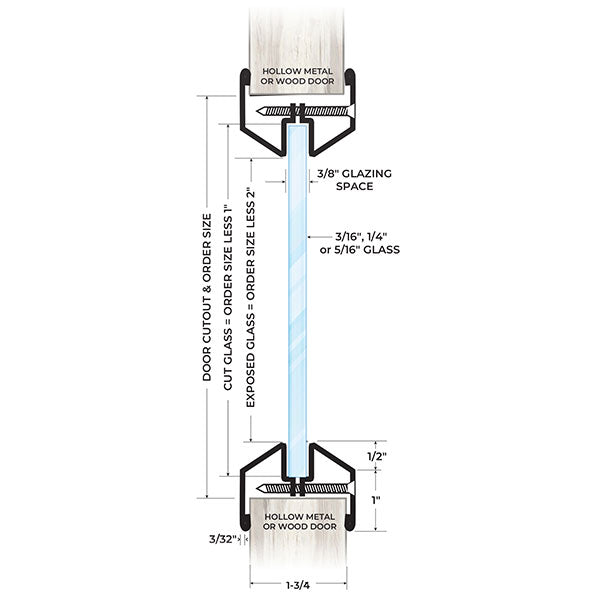

- Order size equal to cutout size - Glass size is 1" under, Visible glass is 2" under
- Includes Pyran® Platinum F - Premium Grade Fire-Rated Ceramic Glass - Transparent and Wireless - Surface-Applied Safety Film
- Closed-cell glazing tape included with every kit
- 18 ga. cold rolled steel frame
- Frame is embossed with UL Label

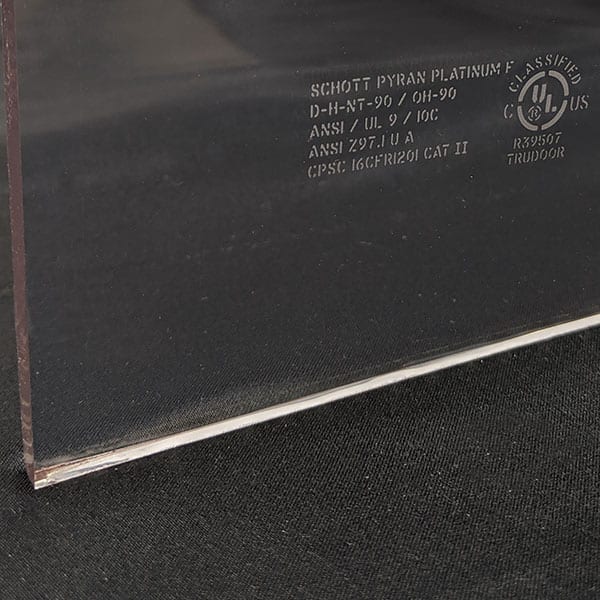

- Glass is permanently etched with UL Classification
*Sizes Etched with 90 Minute UL Label: 8" x 32", 24" x 30", 24" x 32"
*Sizes Etched with 180 Minute Label: 12" x 12", 5" x 35", 6" x 27", 7" x 22", 8" x 18"
*Please refer to IBC code Chapter 7 (International Building Code) for fire-rated glass requirements and limitations. Door frame, door and hardware must also be fire-rated. Fire-rating requirements must match the glazing requirements in order for the assembly to fully meet code requirements. Please refer to manufacturers' specifications. Please Consult with your door and frame manufacturer’s procedures, for their maximum glass size tested. Interpretation of building and fire codes may vary. Consult with the local authority having jurisdiction to determine appropriate standards in your area. Trudoor assumes no liability or responsibility for any damage to person or property resulting from or incident to the use of the products that we provide. Trudoor assumes no liability or responsibility for misspecified and/or misordered materials. Glass is cut to order and non-returnable or refundable.
Note: Per NFPA 80 (National Fire Protection Association), field cutting of doors for vision panels or enlarging existing cutouts for vision panels is considered to be a field modification that is NOT allowed.
Trudoor is certified by UL to cut, re-certify and label fire-rated glazing materials. Our facility undergoes routine inspections to verify that modifications are done in compliance with the requirements of the UL specification listings. All material is tested in accordance with NFPA codes and standards.
Glass is cut to order and non-returnable or refundable.
Call 1-844-TRUDOOR (844-878-3667) for custom sizes and info on volume discounts
PYRAN® is a registered trademark of SCHOTT AG
All lite kits are carefully packaged to ensure safe delivery. Due to the weight and/or fragile nature of this product, a handling/package fee will be added upon checkout. The fee varies depending on the shipping destination. See our shipping info page for more details.
Brand |
NGP (National Guard) |
---|---|
Door Thickness |
1-3/4" |
Finish |
WhiteTanGray PrimedBlackBeigeDark BronzeSilverBrass |

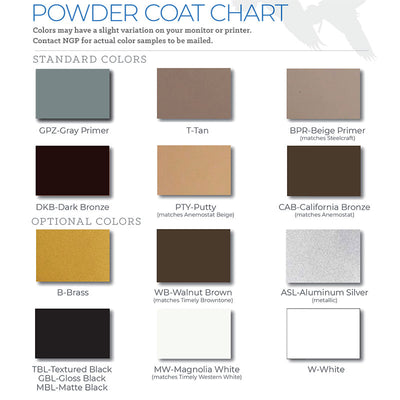

Finishes |
T - TanMBL - Matte BlackGPZ - Gray PrimerB - BrassBPR - Beige PrimerW - WhiteASL - Aluminum SilverDKB - Dark Bronze |
Frame Construction |
18 Gauge Cold Rolled Steel |
Frame Fasteners |
#8 x 1" Flathead Phillips SMS - Included |
Frame Fire-Rating |
3 Hour - Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure - WHI Listed |
Frame Material |
Cold Rolled Steel |
Frame Profile |
Low |
Glass Appearance |
Clear Free of Amber Tint |
Glass Approvals |
UL 9 UL 10B UL 10C NFPA 80 NFPA 252 NFPA 257 ASTM E2074 ASTM E2010-01 CPSC ANSI Z97.1 ULC CAN4-S104 ULC CAN4-S106 |
Glass Fire-Rating |
20 to 180 Minutes with Hose Stream - UL Listed |
Glass Impact Safety Rating |
ANSI Z97.1 Class A; and CPSC 16 CFR 1201 Category II |
Glass Light Transmission |
Approx. 80% |
Glass Thickness |
3/16" |
Glass Type |
Clear Fire-Rated Glass |
Glass Weight |
2. 6 lbs/ft |
Order Size |
24" x 36"24" x 24"6" x 27"8" x 18"24" x 32"8" x 32"5" x 35"12" x 12"24" x 30"7" x 22" |
Classification (Fire-Rating) |
180-Minute UL Label90-Minute UL Label |
