Product Overview

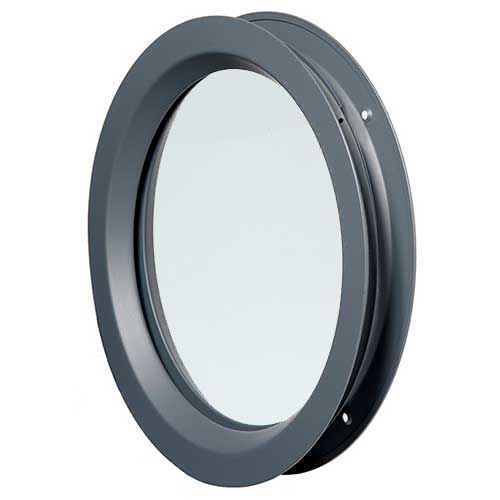

NGP L-FRA100-RD-_-TG-GT-118-_ Round Lite Kit for 1-3/4″ Thick Doors with 1/4″ Tempered Glass and GT-118 Glazing Tape
Designed for use with 1-3/4" thick doors.
- Circular vision lite frame and glass

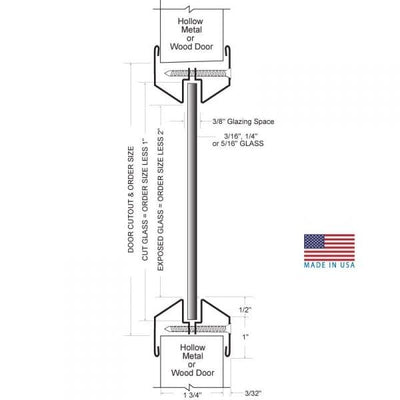

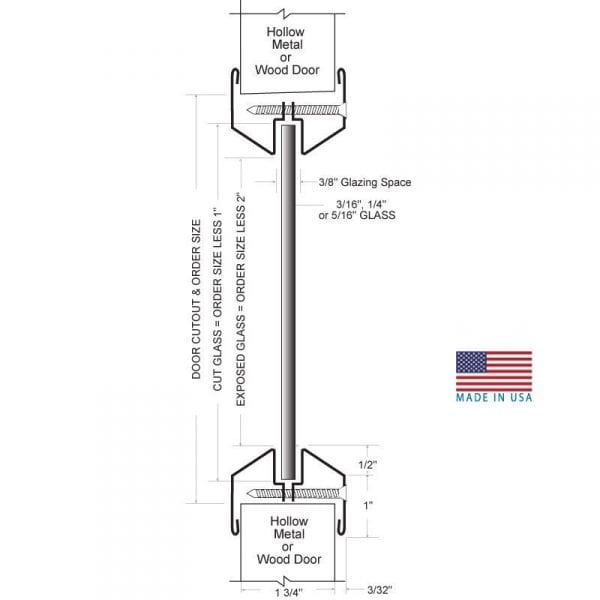

- Order size equal to cutout size (12", 18" or 24" Diameter)
- Glass size is 1" under cutout size, Visible glass is 2" under
- Includes 1/4" Clear Tempered - CAT II Impact-Rated (Safety Glass) - Heat-treated clear safety glass that breaks into small particles
- Tempered Glass - Four Times Stronger Than Annealed Glass
- Glass Approvals: ANSI Z97.1, Class A; and CPSC 16 CFR 1201 Category II
All lite kits are carefully packaged to ensure safe delivery. Due to the weight and/or fragile nature of this product, a handling/package fee will be added upon checkout. The fee varies depending on the shipping destination. See our shipping info page for more details.
Brand |
NGP (National Guard) |
---|---|
Door Thickness |
1-3/4" |
Finish |
WhiteGray PrimedBlackDark Bronze |
Finishes |
GPZ - Gray PrimerMBL - Matte BlackDKB - Dark BronzeW - White |
Frame Construction |
18 Gauge Cold Rolled Steel |
Frame Fasteners |
#8 x 1-3/4" Phillips head SMS |
Frame Material |
Cold Rolled Steel |
Glass Appearance |
Clear |
Glass Impact Safety Rating |
ANSI Z97.1 Class A; and CPSC 16 CFR 1201 Category II |
Glass Light Transmission |
Approx. 86% |
Glass Thickness |
1/4" |
Glass Type |
Clear Tempered Glass |
Order Size |
24" Round18" Round12" Round |
Classification (Fire-Rating) |
None |
