Product Overview

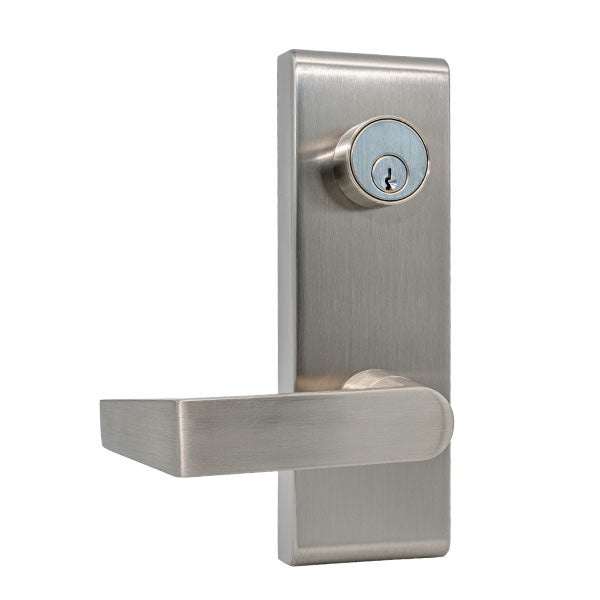

PDQ 6W99 Wide Stile Exit Device Escutcheon Trim for 6300 Series, Electrified Storeroom Function, PHL Lever
Function 99 – Locked/Unlocked electronically. FS/FSF configurable. Entry by key. Key does not change lock state.
- For use with 6300 Series Exit Devices
- Motor drive factory tested to over 1.4 million cycles (1.4X the ANSI/BHMA grade 1 std)
- Field changeable from FAIL Secure to FAIL SAFE
- SMARTSENSE control board automatically accepts AC or DC input voltage
- Lever design: PHL
- Non Handed design, easily field reversible
- 1-3/4" door thickness
Electrical Specifications
- Input voltage: 12-24VDC or 12-24VAC.
- Max In-rush current: 1.0A
- Average holding current:
- 12-24VDC: 5mA after 30 seconds
- 12-24VAC: 15mA after 30 seconds
- Power must be applied for a minimum of 5 seconds
Certifications
- Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
Applicable Devices
- 6300R Wide Stile Rim Device
- 6300V Wide Surface Vertical Device
- 6300C Wide Concealed Vertical Device
- 6300M Wide Mortise Device
| ANSI Grade |
ANSI Grade 1 |
|---|---|
| Brand |
PDQ |
| Buy American Act Compliance |
Meets BAA - Buy American Act |
| Compatible Devices |
6300 Series |
| Cylinder Format |
Conventional |
| Door Thickness |
1-3/4" |
| Finish |
BlackSatin ChromeStainless Steel |
| Finishes |
US32D (630) Satin Stainless SteelUS26D (626) Satin Chrome622 Matte Black |
| Function |
Storeroom |
| Handing |
Non Handed – Completely Reversible |
| Keyway |
Schlage C Keyway |
| Usage |
Heavy Duty |
| Voltage |
12-24VDC or 12-24VAC |
| Warranty |
2 Years |
