PDQ

PDQ SD116 Entrance Lever Lock

$74.97
Usually Ships:  2-3 Business Days
  • ANSI/BHMA A156.2 Grade 2 certified
  • ANSI function: F109, entrance
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

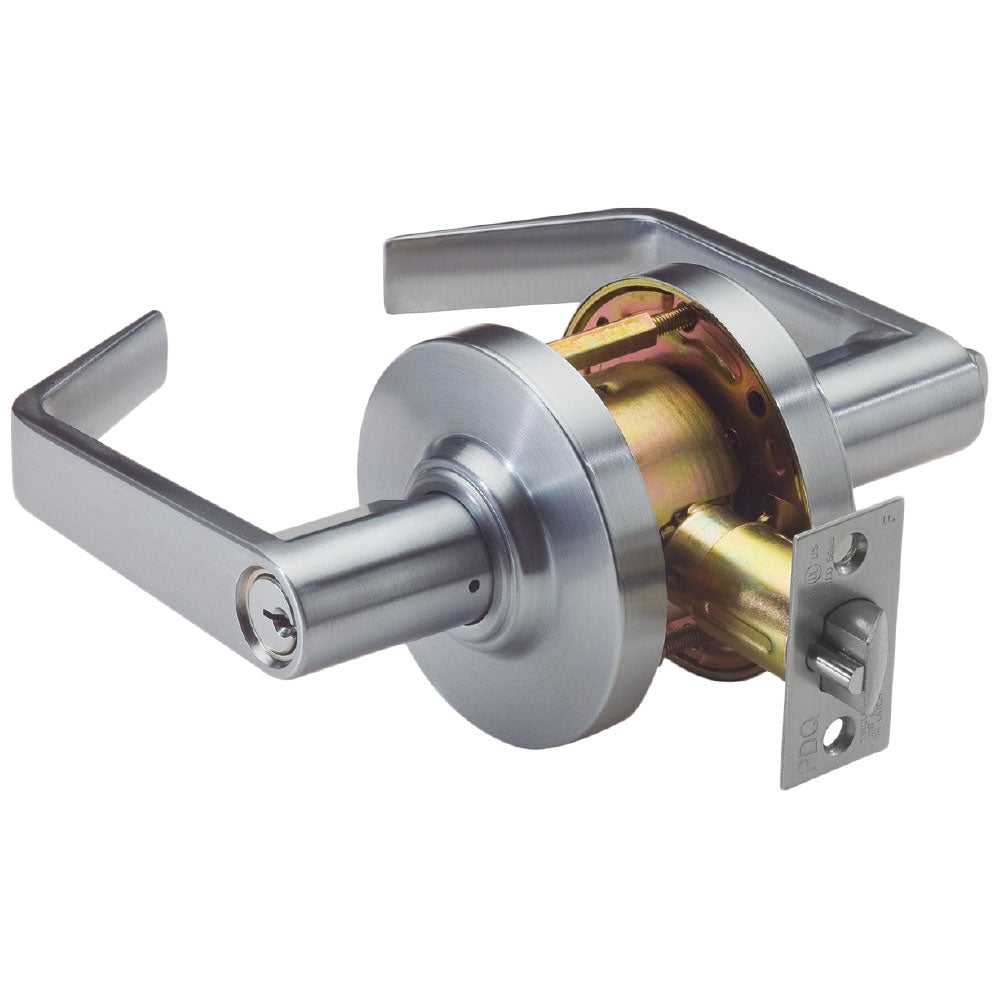

PDQ SD116 Lever Lockset, Entrance Function, Grade-2, 2-3/4" Backset, ASA Strike, Schlage C Keyway


PDQ’s SD Series Grade 2 Cylindrical Lock has been value-engineered to meet your quality and cost expectations! Backed by a reassuring 5-year warranty, you can put your trust in the reliability and performance of this lock.
ANSI Function F109 – Latchbolt operated by lever from either side or key in outside lever. Outside lever locked by push/turn button on inside. When outside lever is locked by push button on inside – key from outside, or rotating inside lever unlocks outside lever. When outside lever is locked by pushing and turning the button on the inside, key from outside or rotating inside lever retracts latch but does not unlock outside lever. Deadlocking (guarded) latchbolt.
  • Heavy-gauge cold-rolled steel locking mechanism - Dichromate for corrosion resistance.
  • Removable thru-bolts

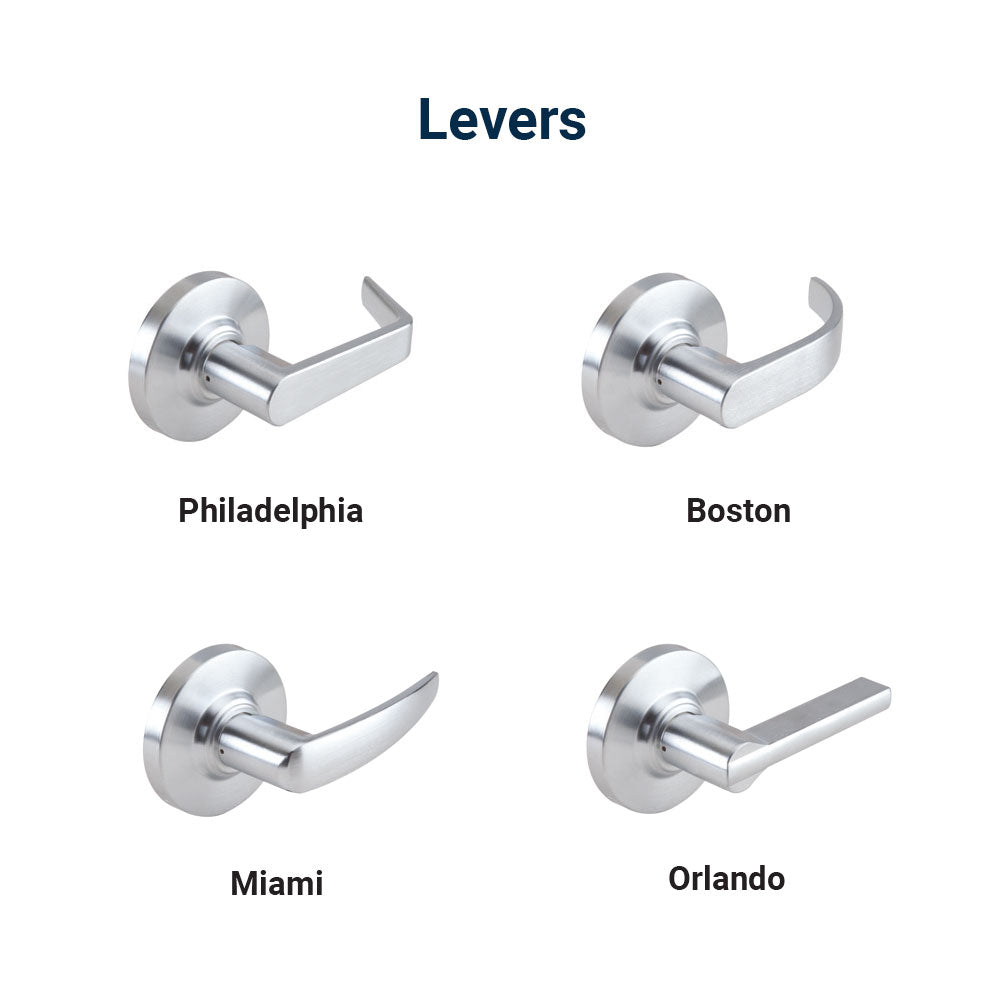

  • *4-Lever Styles: PHL (Philadelphia), BSN (Boston), MIA (Miami), ORL (Orlando)
  • *3-Finishes: 613E(US10BE), 622(US19), 626(US26D)
  • UL/CUL 10C listed 3-hour fire door, for single doors up to 4’ x 8’
  • Certified to ANSI/BHMA A156.2 Grade 2
  • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
* PHL (Philadelphia) Lever Design in 626 Finish Shown
