Product Overview

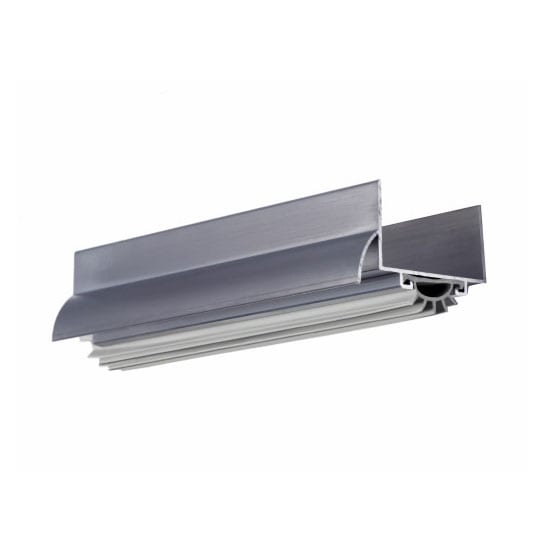

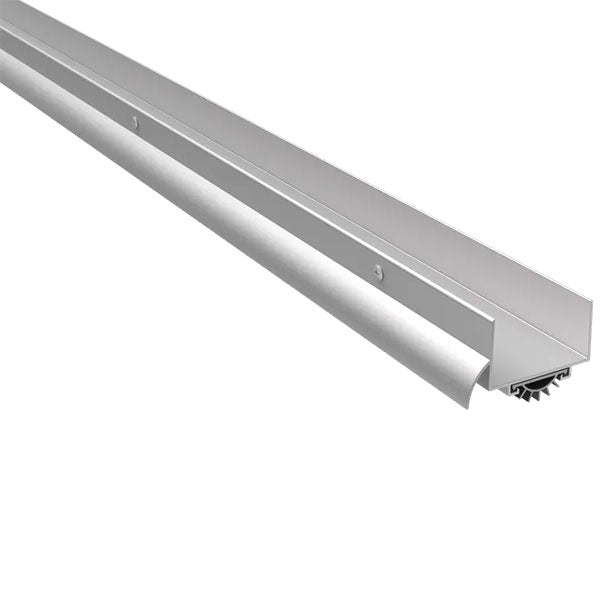

Pemko 216_V U-Shaped Door Shoe with Rain Drip and Eco-V Vinyl Insert
The 216 Series is a fire and smoke rated U-shaped door shoe, designed to fill the gap under a 1 3/4" thick door while maintaining the door's appearance. The door shoe has elongated slots for easy adjustments and a rain drip design to deflect water from the door bottom. The Pemko 216_V door shoe is supplied with a Eco-V® ("V") insert and is ideal for deflecting rain away from the bottom of the door.
- Rain drip model is ideal for deflecting rain away from the bottom of door
- Blocks unwanted airflow and light, and provides privacy
- Slotted holes for easy adjustment
- Width: 1-3/4” (44.5 mm)
- Profile Height 1: 1-5/16” (33.3 mm)
- Profile Height 2: 5/8” (15.9 mm)
- Total Height with Insert: Approx. 1-9/16” (39.7 mm)
Finishes
- 216AV: A - Mill Finish Aluminum with Eco-V insert
- 216BV: B - Mill Finish Extruded Bronze (Brass) with Eco-V insert
- 216BSP: BSP - Black Aluminum with Eco-V insert
- 216DV: D – Dark Bronze Anodized Aluminum with Eco-V insert
- 216SNV: SN - Satin Nickel Anodized Aluminum with Eco-V insert
- 216WSP: WSP - White Aluminum with Eco-V insert
Ratings
- Smoke Tested - UL1784
- Fire Rated - UL10C - Positive Pressure
- Underwriters Laboratory 4L10
- GREENGUARD Gold Certified
| Brand |
Pemko |
|---|---|
| Finish |
BlackDark BronzeWhiteMill Finish Extruded Bronze (Brass)Satin NickelAluminum |
| Finishes |
D – Dark Bronze Anodized AluminumBSP Black Suede Powder CoatA - Mill Finish AluminumSN – Satin Nickel Anodized AluminumWSP White Suede Powder CoatB - Mill Finish Extruded Bronze (Brass) |
| Fire Rating |
Fire Rated - UL10C - Positive Pressure |
| Insert/Seal Type |
Vinyl |
| Length |
48"36" |
Pemko 216_V U-Shaped Door Shoe with Rain Drip and Eco-V Vinyl Insert
