Product Overview

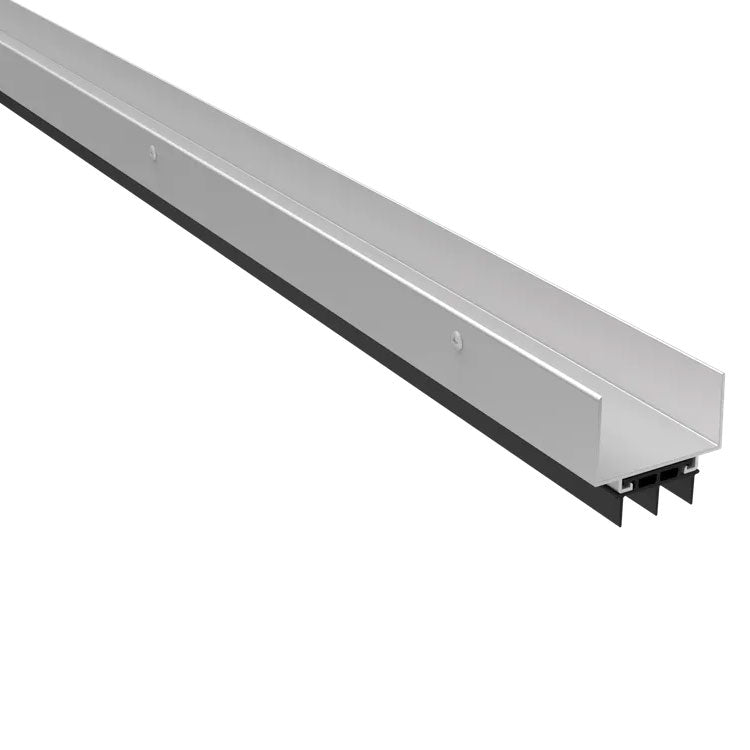

Pemko 2173_V U-Shaped Door Shoe with Eco-V Vinyl Insert
The 2173_V U-Shaped Door Shoe with combination kick plate and rain drip cap is designed to provide superior protection for the bottom of doors. It seals the gap up to 0.5" and is rated for fire, smoke, air infiltration, sound, and low VOC emission. It is compatible with doors of 1.75" thickness
Hospitality product
Pemko 2173_V door shoes are ideal in any situation where airflow under the door are necessary, but privacy and light leakage are also a concern.
Insert is constructed of soft, pliable black Eco-Vinyl with an alternate notching pattern, allowing HVAC systems and bathroom fans to circulate air under the door while still blocking light and noise.

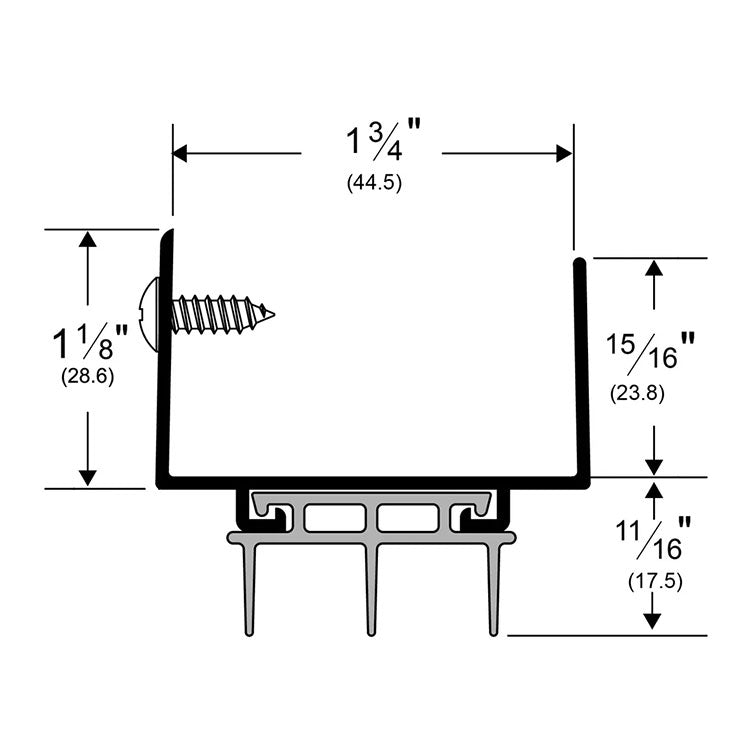

- WIDTH: 1-3/4” (44.5 mm)
- HEIGHT: 1-1/16” (27.0 mm)
- TOTAL HEIGHT WITH INSERT: 1-3/4” (44.5 mm)
Finishes
- 2173AV: A - Mill Finish Aluminum Aluminum with Black Eco-V insert
- 2173BSPV: BSP - Black Suede Powder Coat Aluminum with Black Eco-V insert
- 2173DV: D - Dark Bronze Anodized Aluminum with Black Eco-V insert
Ratings
- Smoke Tested - UL1784
- Air Infiltration Tested
- Sound Tested - ASTM E90
- Fire Rated - UL10C - Positive Pressure
- Underwriters Laboratory 4L10
- GREENGUARD Gold Certified
| Brand |
Pemko |
|---|---|
| Finish |
Dark BronzeBlackAluminum |
| Finishes |
D – Dark Bronze Anodized AluminumA - Mill Finish AluminumBSP Black Suede Powder Coat |
| Fire Rating |
Fire Rated - UL10C - Positive Pressure |
| Insert/Seal Type |
Vinyl |
| Length |
36"48" |
