Product Overview

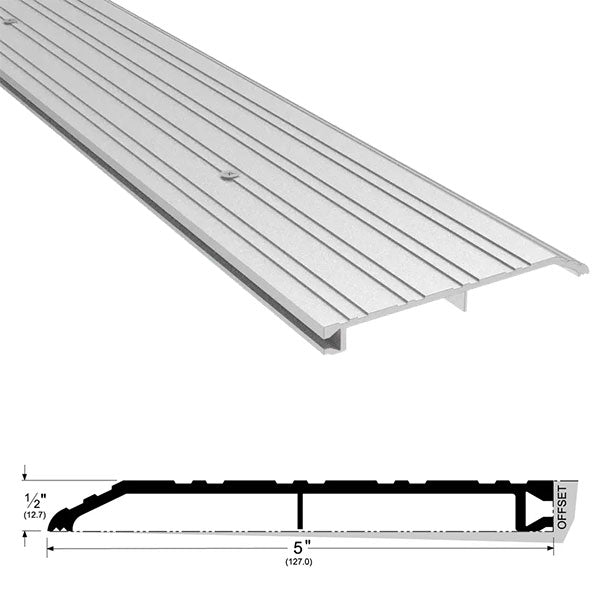

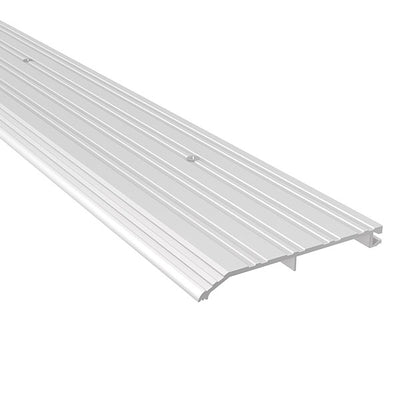

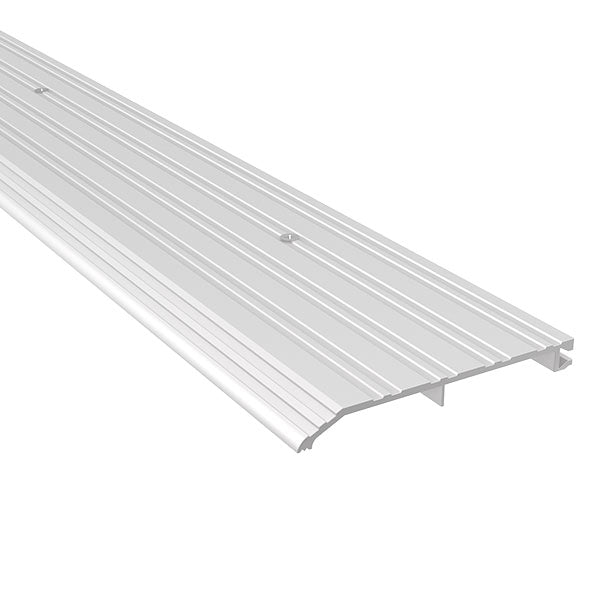

Pemko 255_ Half Saddle Offset Saddle Threshold, 5" W x 1/2"H
The 255 Series 5" wide Half Saddle Threshold effectively fills offset floors by 1/2" to create a smooth transition between different floor surfaces. It's BHMA certified, fire rated, and can be cut to size.
Half Saddle/Offset Saddle thresholds are commonly used to meet with an irregular floor surface. These shapes are often used when a threshold is required to meet with tile or carpet on one side.
- MATERIAL: 6063-T6 Aluminum Alloy
- WIDTH: 5” (127.0 mm)
- HEIGHT: 1/2” (12.7 mm)
- LENGTHS: 36", 48", 72" and *96"
*excessive length shipping fee applies
Finishes
- 255A: A - Mill Finish Aluminum
- 255BSP: BSP – Black Suede Powder Coat Aluminum
- 255D: D – Dark Bronze Anodized Aluminum
- 255G: G – Gold Anodized Aluminum
Ratings
- Barrier-Free
- BHMA Certified
- Fire Rated - UL10C - Positive Pressure
| ANSI/BHMA Standard |
ANSI/BHMA A156.21 |
|---|---|
| Brand |
Pemko |
| Finish |
Dark BronzeBlackAluminumGold |
| Finishes |
D – Dark Bronze Anodized AluminumG - Gold Anodized AluminumBSP Black Suede Powder CoatA - Mill Finish Aluminum |
| Fire Rating |
Up to 3 Hours with metal doors; 90 minutes with wood doors |
| Height |
1/2" |
| Length |
72"96"48"36" |
| Width |
5" |
Pemko 255 Half Saddle Threshold - 5" Wide x 1/2" High
