Pemko 315_N Door Bottom Sweep with Neoprene or EPDM insert

$17.04
Usually Ships:  1-2 Business Days
  • For commercial doors of all types
  • Seals against smoke, fire, air, sound, and weather
  • Air infiltration tested and fire-rated

Available Options:

Clear

Product Overview

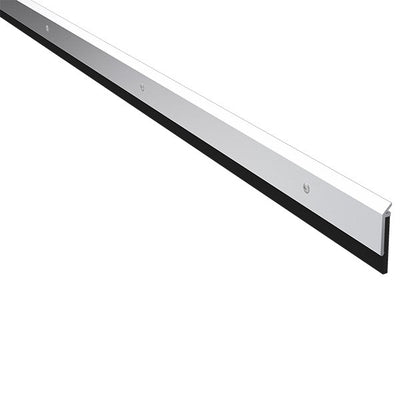

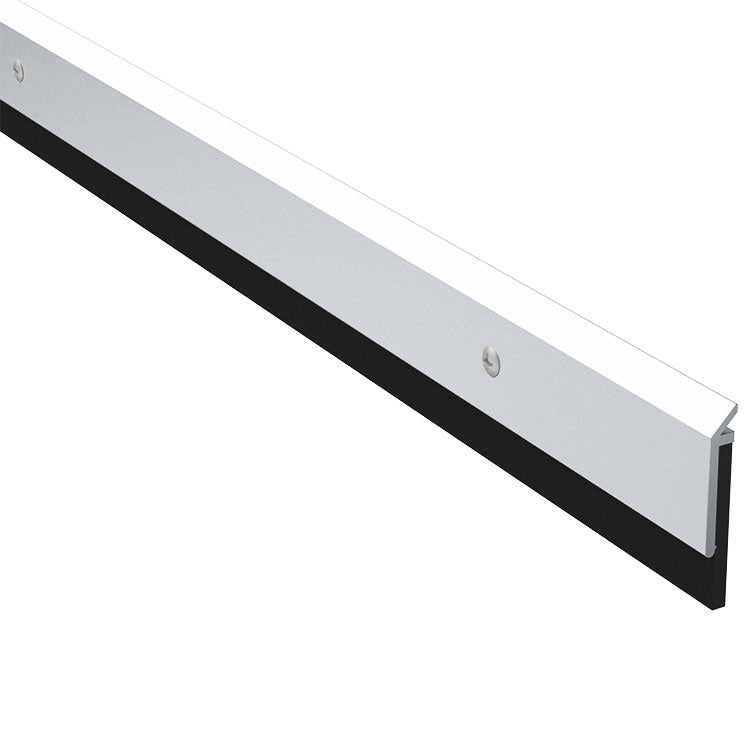

Pemko 315_N Surface Mounted Door Bottom Sweep -  Certified for Door Gasketing and Edge Seal Systems

The 315_N Surface Plate Door Sweep is designed with a 1.25" aluminum casing and a neoprene extrusion that is rated for smoke, fire, and air infiltration. It creates a seal between the door bottom and the threshold/floor surface. Available in various finishes and sizes, this door sweep is easy to install. Screws are included and color-coordinated with the casing.

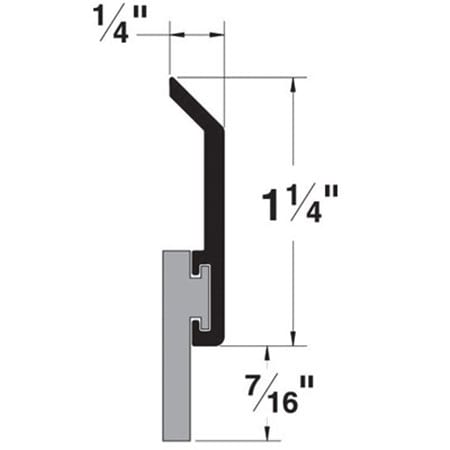

  • Width: 1/4” (6.4 mm)
  • Profile Height: 1-1/4” (31.8 mm)
  • Total Height with Insert: 1-11/16” (42.9 mm)

Finishes

  • 315BN: B - Mill Finish Extruded Bronze (Brass)
  • 315BSPN: BSP - Black Suede Powder Coat Aluminum
  • 315CN: C - Clear Anodized Aluminum
  • 315DN: D - Dark Bronze Anodized Aluminum
  • 315GN: G - Gold Anodized Aluminum
  • 315SN: SN - Satin Nickel Anodized Aluminum
  • 315SSN: SSN - Satin Stainless Steel
  • 315WSPN: WSP - White Suede Powder Coat Aluminum

Ratings

  • Air Infiltration Tested
  • BHMA Certified
  • Smoke Tested - UL1784 S
  • Fire Rated - UL10C - Positive Pressure
  • Underwriters Laboratory
  • GREENGUARD Gold Certified

Brand

Pemko
Finish

BlackDark BronzeSatin NickelWhiteGoldAnodized AluminumStainless SteelMill Finish Extruded Bronze (Brass)
Finishes

WSP White Suede Powder CoatB - Mill Finish Extruded Bronze (Brass)SS – Satin Stainless SteelC – Clear Anodized AluminumBSP Black Suede Powder CoatSN – Satin Nickel Anodized AluminumG - Gold Anodized AluminumD – Dark Bronze Anodized Aluminum
Fire Rating

Fire Rated - UL10C - Positive Pressure
Insert/Seal Type

Neoprene or EPDM
Length

42"48"36"
