Pemko

Pemko TBS200A Series Through-Bolt Sliding Door Hardware System

$297.52
Usually Ships:  5-10 Business Days
  • Designed for wood or hollow metal doors up to 200 pounds
  • Equally distributes the weight of the door, easy installation
  • Complements modern decor and open interiors

Available Options:

Clear

Product Overview

Pemko TBS200A Series Through-Bolt Sliding Door Hardware System

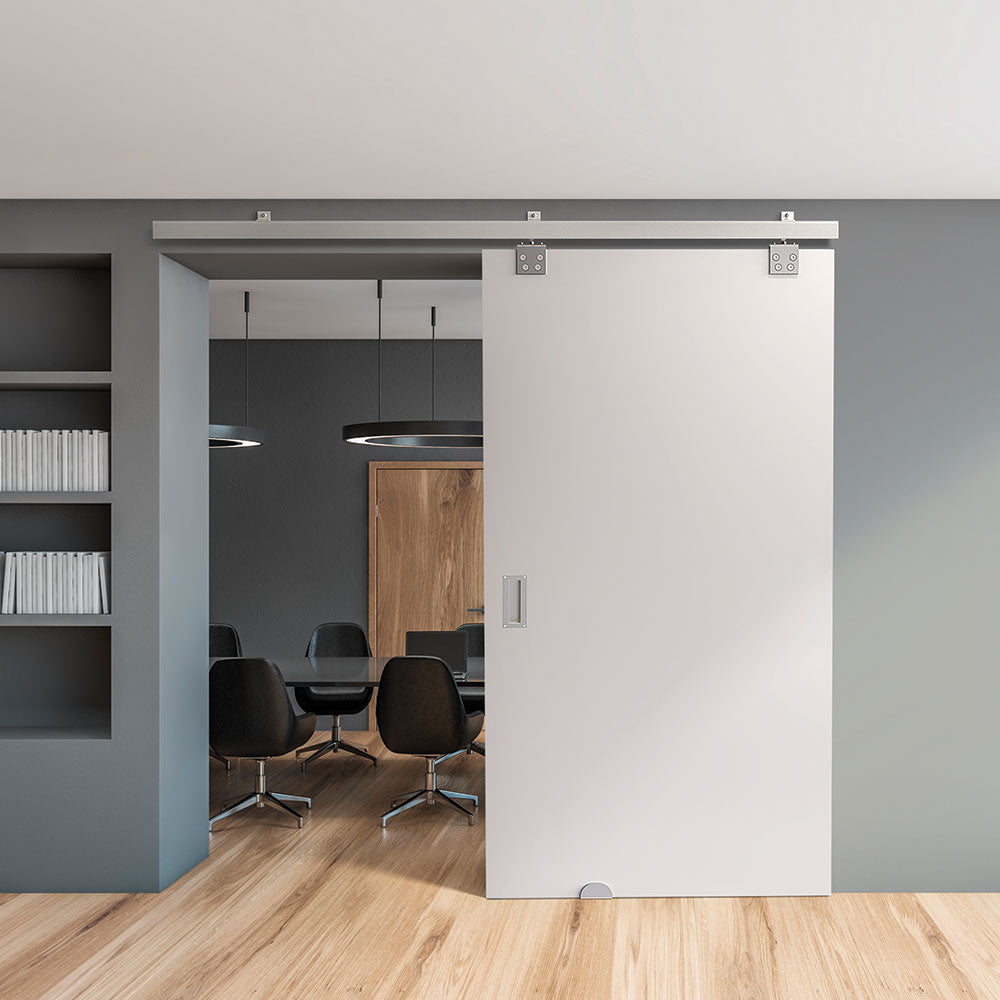

The TBS200A Series Through-Bolt Sliding Hardware System is designed for wood or hollow metal doors up to 200 pounds and can be overhead or side wall mounted with track lengths of 6, 8,10,12, and 16ft. It's an ideal solution when your door is made of alternative materials, including metal, fiberglass, and aluminum. This system, which is also suitable for wood doors, features an auto centering apron that equally distributes the weight of the door while the through-bolts negate the need for a substantial top rail.
Features

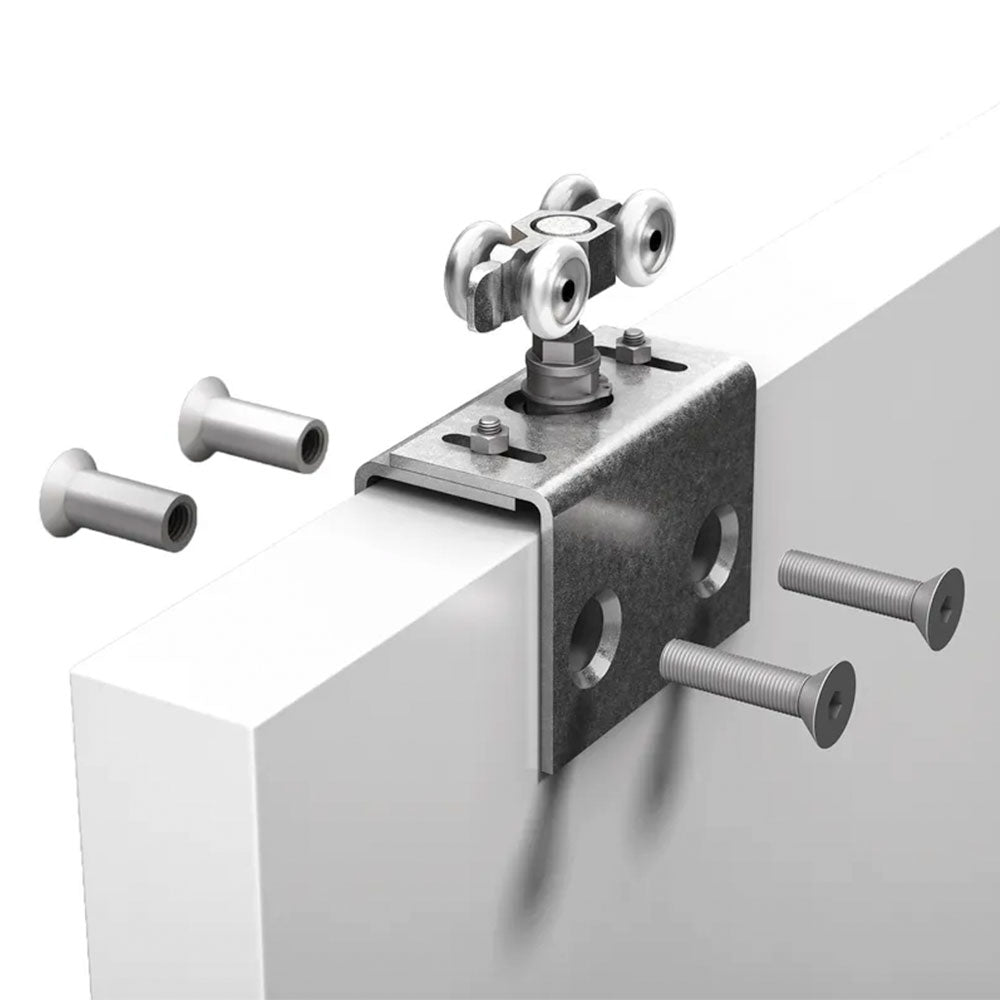

  • Through-bolted hardware
  • For doors up to 200 lbs
  • Auto-centering apron
  • Suites with Rockwood door pulls and other Accessories Group products
  • Requires less than 5 lbs. of force to operate
  • Hanger apron (H222R1/APRON) and bottom guide (ADJ-BG) are paintable galvannealed steel
  • Surface bottom guide included
Benefits
  • Ideal for use with metal, fiberglass, and aluminum doors, negates need for substantial top rail, no modification required on hollow metal doors for a sliding application
  • Durable system designed for a range of doors
  • Equally distributes the weight of the door, easy installation
  • Complements modern decor and open interiors
  • Meets ADA push force requirements
  • Can paint components to match the color of the door
  • Eliminates need for guide channel and roller guides
Specifications
  • Base Material: Aluminum
  • Door Stop Type: Standard Stop
  • Door Type: Metal, Wood
  • Hanger Material: Steel
  • Maximum Door Weight: 200lbs.
  • Maximum Door Thickness: 2"
  • Minimum Door Thickness: 1 3/8"
  • Panel Configuration: Bi-parting, Single
  • Mounting Location: Overhead Mount, Side Wall Mount
  • Wheel Type: Solid Nylon

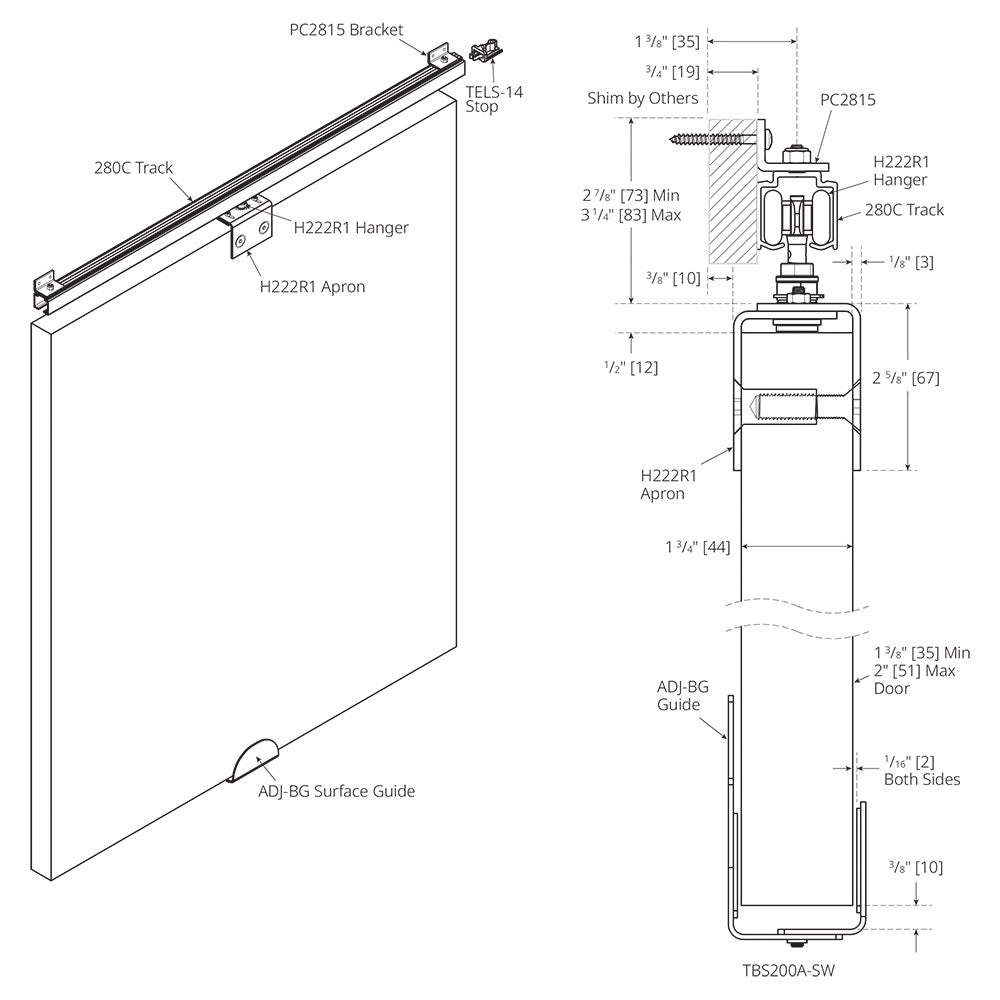

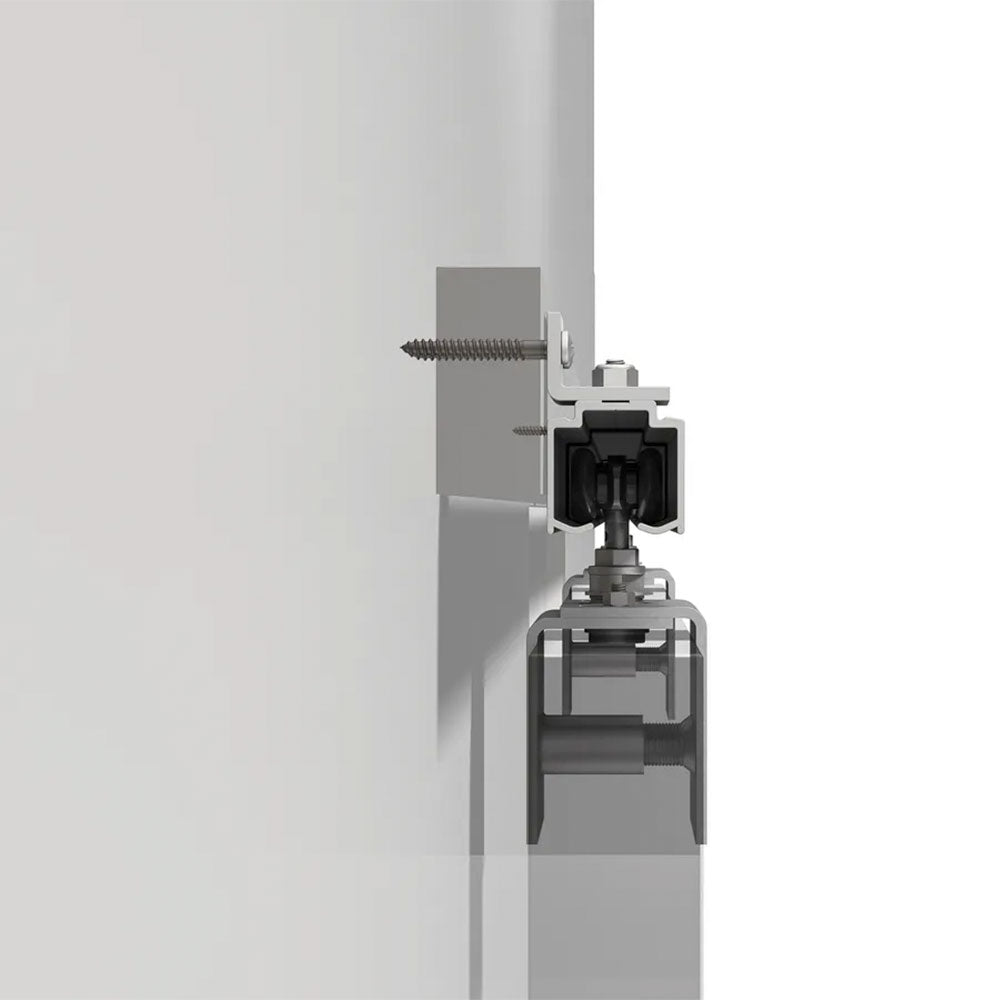

TBS200A-SW Side Wall Mounted Kit Components
  • 1B PC2815 Side Wall Mount Track Brackets (one at each end and no more than 3 feet in between)
  • 1 - ADJ-BG Surface Type Guide
  • 2 - H222R1 Hangers: Gray Nylon Body, Zinc Coated Steel Pendant Bolt, Steel Ball Bearing Nylon Wheels
  • 1 - 200 Clear Anodized Aluminum Track
  • 2 - H222R1/APRON Mounting Brackets Thru-Bolted
  • 2 - TELS-14KIT Nylon In-Track Clip Stop
TBS200A-OH Overhead Mounted Kit Components
  • 2 - H222R1 Hangers: Gray Nylon Body, Zinc Coated Steel Pendant Bolt, Steel Ball Bearing Nylon Wheels
  • 1 - ADJ-BG Surface Type Guide
  • 2 - TELS-14KIT Nylon In-Track Clip Stop
  • 1 - 280C Clear Anodized Aluminum Track
  • 2 - H222R1/APRON Mounting Brackets Thru-Bolted
Recommended Applications
  • Office Spaces
  • Sport Venues
  • Casinos
  • Hospitality
  • Retail
  • Museums
