Rockwood

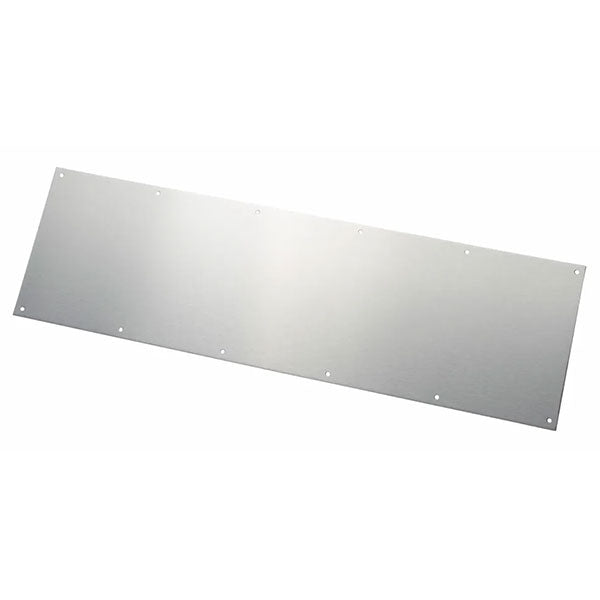

Rockwood K1050 Series Kick Plate - US32D Satin Stainless Steel

$38.64
Usually Ships:  1-2 Business Days
  • .050" Thick, US32D satin stainless steel
  • Mounting screw pack included
  • Meets ANSI A156.16 : J102 Standards

Available Options:

Clear

Product Overview

Rockwood K1050 Metal Kick Plate-Standard Duty, .050" Thick

The K1050 is a standard-duty metal door plate that is .050" thick and all edges come beveled.

  • All edges beveled
  • Material: .050" Stainless Steel
  • Fasteners: #6 x 5/8" OH SMS
  • ANSI: J101 - metal kick plate, J103 - metal stretcher & mop plate
  • Life Expectancy: 50 years

NFPA 80 STANDARDS - 2-4.5 Protection Plates: Factory-installed protection plates shall be installed in accordance with the listing of the door. Field-installed protection plates shall be labeled and installed in accordance with their listing.

Exception: Labeling is not required where the top of the protection plate is not more than 16 in. (406 mm) above the bottom of the door.

ANSI/BHMA Standard

J102 Standards
Brand

Rockwood
Finish

Stainless Steel
Size

10" x 42" (For 44" Wide Door)10" x 32" (For 34" Wide Door)10" x 26" (For 28" Wide Door)10" x 34" (For 36" Wide Door)8" x 35" (For 36" Wide Door)12" x 34" (For 36" Wide Door)10" x 40" (For 42" Wide Door)10" x 30" (For 32" Wide Door)10" x 22" (For 24" Wide Door)10" x 35" (For 36" Wide Door)8" x 34" (For 36" Wide Door)10" x 38" (For 40" Wide Door)10" x 28" (For 30" Wide Door)10" x 46" (For 48" Wide Door)6" x 34" (For 36" Wide Door)4" x 35" (For 36" Wide Door)
