Product Overview

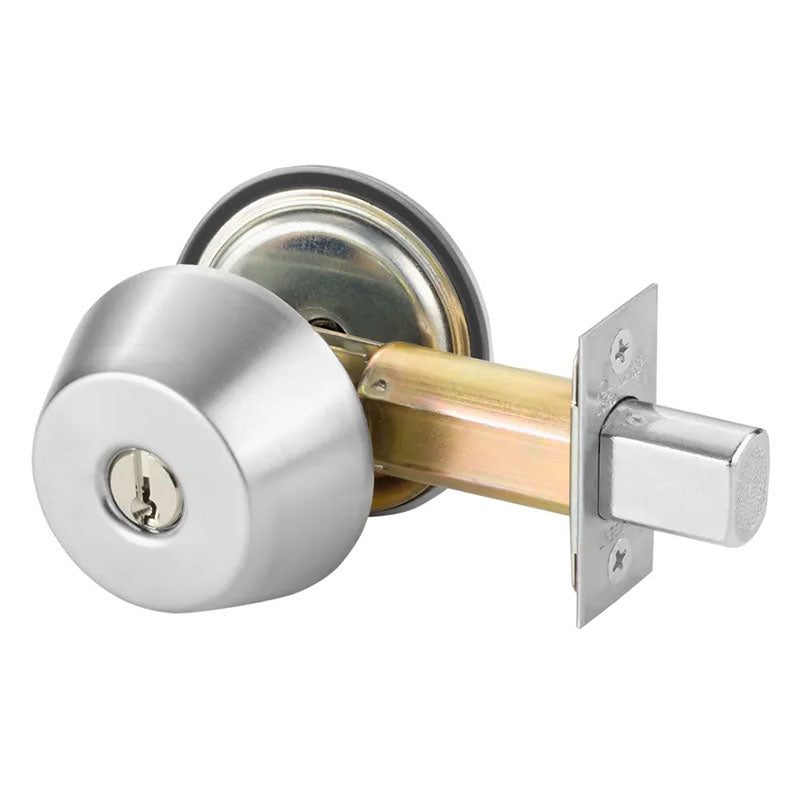

Sargent 487 Single Cylinder Classroom Deadbolt, 2-3/4" Backset
Ideally suited for heavy-duty industrial and security applications, the 480 Series is a high-grade cylindrical deadbolt that is certified to ANSI/BHMA A156.36 Grade 1 standards.

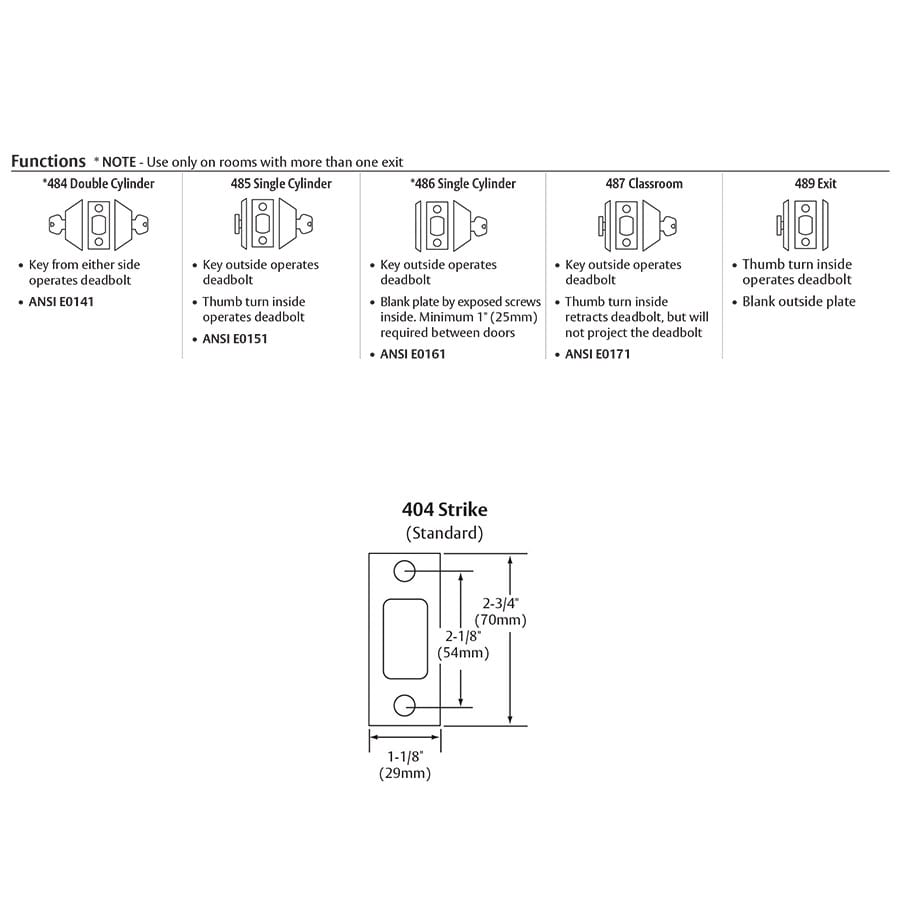

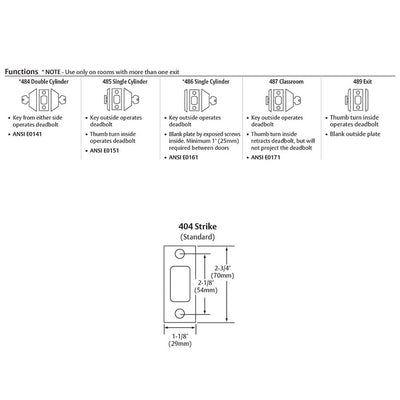

ANSI E0161 Classroom Deadlock
- Key outside operates deadbolt
- Thumbturn inside retracts deadbolt
| ANSI Function |
E0161 |
|---|---|
| ANSI/BHMA Standard |
A156.36 Certified Grade 1 |
| Backset |
2-3/4" |
| Bolt |
1" throw bolt 1-1/8" x 2-1/4" square corner face plate |
| Brand |
Sargent |
| Cylinder Format |
Conventional |
| Cylinder & Keys |
6-pin conventional keyed different with 2 keys |
| Deadbolt Type |
Classroom |
| Finish |
BlackOil Rubbed BronzeSatin Chrome |
| Finishes |
US10B (613) Oil Rubbed BronzeUS26D (626) Satin ChromeBSP Black Suede Powder Coat |
| Fire Rating |
Fire Rated - UL10C - Positive Pressure |
| Keyway |
Sargent LA Keyway |
| Strike |
1-1/8” x 2-3/4“ square corner |
| Usage |
Heavy Duty |
Sargent 487 Classroom Deadbolt
