Sargent

Sargent PE8888/PE8810 Panic Rim Exit Device, Multi-Function

$1,212.53
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy-Duty, ANSI/BHMA A156.3 Grade 1 certified
  • Designed for high use and abuse applications
  • Exit Only (trim sold separately)

Available Options:

Clear

Product Overview

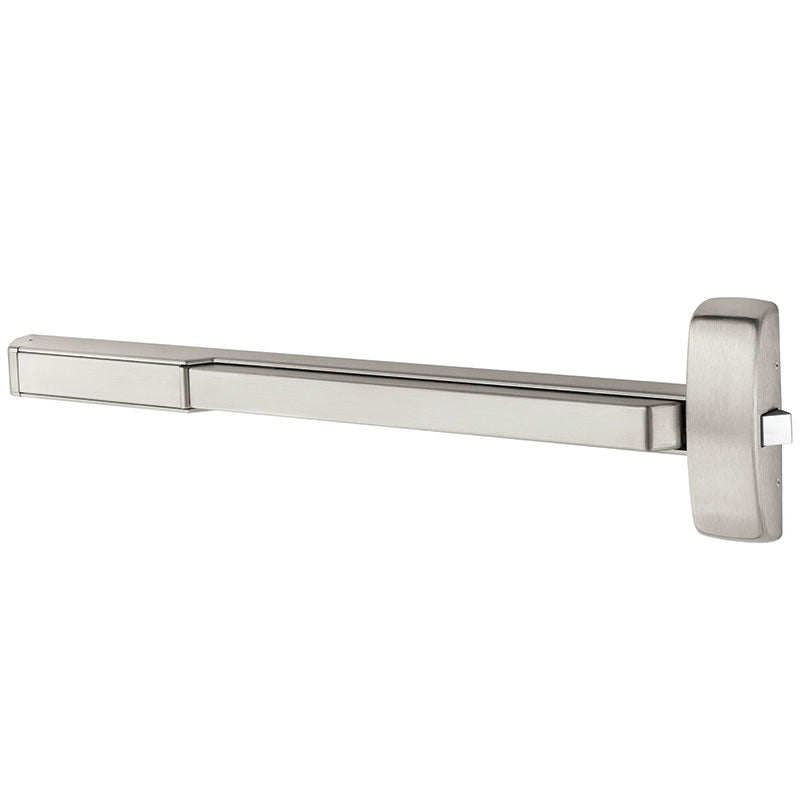

Sargent PE80 Series, PE8888/PE8810 Grade 1 Rim Exit Bar, Wide Stile Pushpad, Multi-Function, Exit Only

The PE80 Series is the next generation of exit devices. Designed with innovation in mind, the powerful and exquisite exit device introduces new and enhanced features. Ideal for environments that require maximum strength and durable security solutions, all configurations exceed ANSI/BHMA Grade 1 requirements.

  • Exit Only (Sargent Exit Device Trim sold separately)
  • Universal, multi-function rim exit device
  • Device & trim sold separately; easy to mix and match

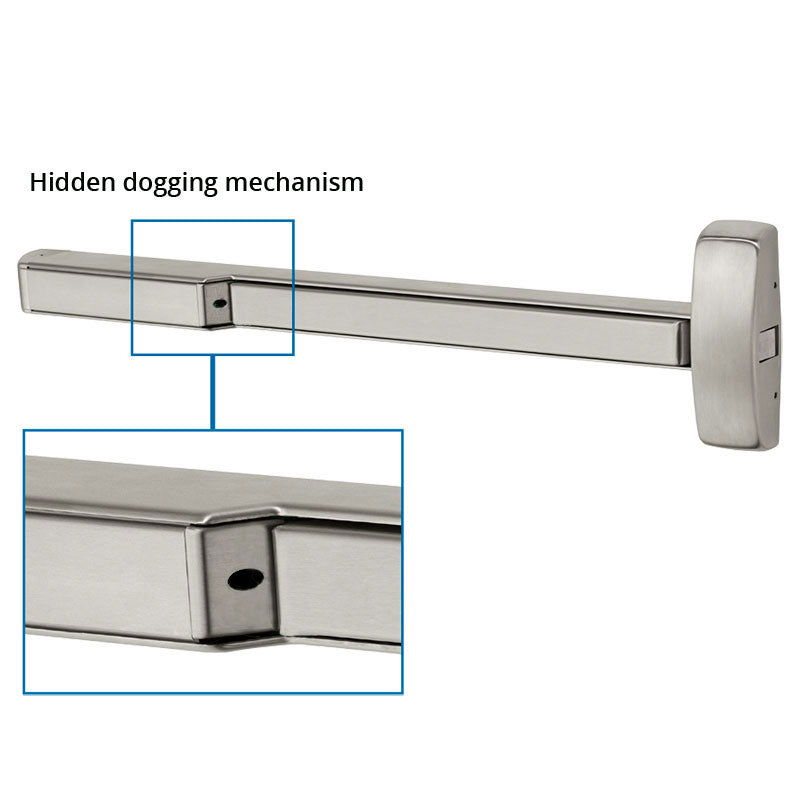

  • Hidden dogging mechanism
  • Flush pushbar and rail carrier design to minimize catch points
  • No visible fasteners on rail assembly
  • Flush end cap standard
  • Designed for standard width stile applications on wood and metal doors
  • 7 functions available as determined by the trim function
  • UL305 (Panic) Listed

ANSI/BHMA Standard

ANSI/BHMA A156.3 - Grade 1
Brand

Sargent
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Dogging Feature

Hidden dogging mechanism half turn hex
Door Applications

1-3/4" Metal and Wood Doors
Finish

WhiteDark BronzeBSP/32D Mixed FinishOil Rubbed BronzeSatin BrassBright Brass32D/BSP Mixed FinishSatin BronzeBlackStainless SteelBright BronzeBright Stainless Steel
Finishes

32D/BSP Mixed Finish Satin Stainless Steel w/ Black Suede Powder Coat Push BarBSP Black Suede Powder CoatUS10 (612) Satin BronzeUS32D (630) Satin Stainless SteelUS32 (629) Bright Stainless SteelUS9 (611) Polished BronzeUS10BE (613e) Dark Oxidized Satin Bronze EquivalentUS3 (605) Bright BrassBSP/32D Mixed Finish Black Suede Powder Coat w/ Satin Stainless Steel Push BarWSP White Suede Powder CoatUS4 (606) Satin BrassUS10B (613) Oil Rubbed Bronze
Fire Rating

None
Handing

Non Handed – Completely Reversible
Latchbolt

Stainless steel 3/4” throw
Length

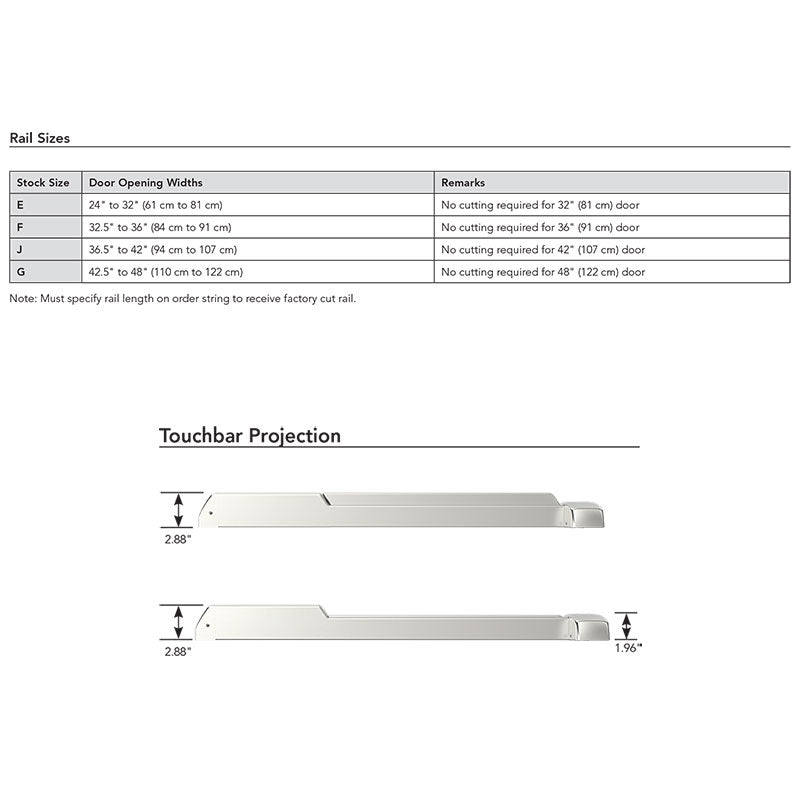

J – 42" (for 37" to 42" Doors)F - 36" (for 33" to 36" Doors)E - 32" (24" to 32" Doors)G - 48" (for 43" to 48" Doors)
Stile Type

Wide (Standard)
Strike

649 Strike supplied standard
Trim

None - Exit Only (Outside Trim Sold Separately)
Usage

Heavy Duty
Warranty

10 Years
