Schlage

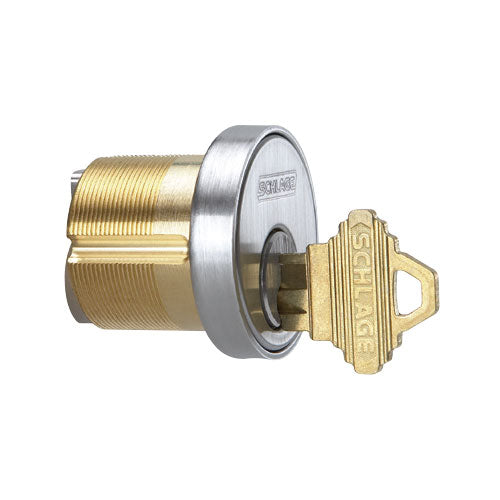

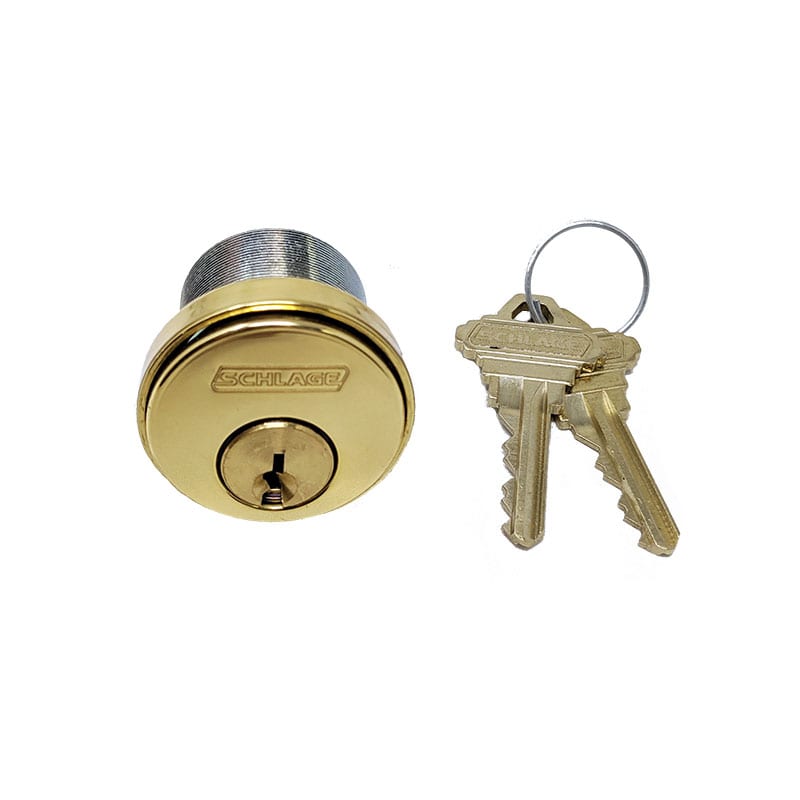

Schlage 20-001-C 1-1/4" Mortise Cylinder with Straight Cam, C Keyway

$68.51
Usually Ships:  1-2 Business Days

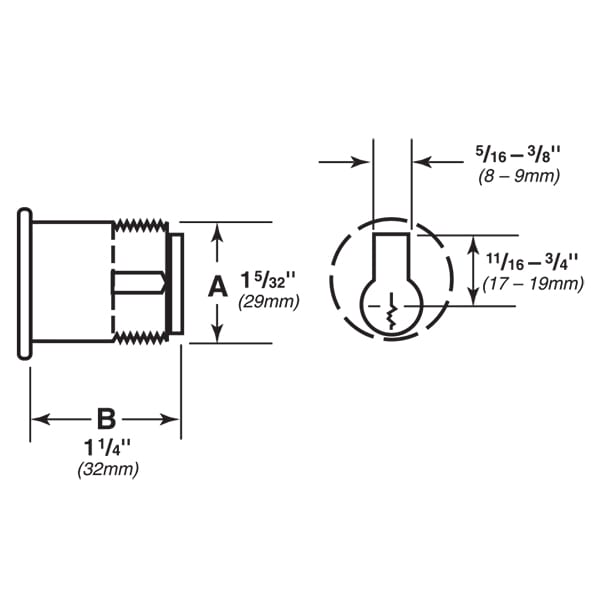

  • 1-1/4" Standard Mortise Cylinder w/ Straight Cam (L583-477)
  • Includes 3/8" Blocking Ring and 2 Cut Keys (C keyway)
  • For use with Exit Device Trim

Available Options:

Clear

Product Overview

Schlage 20-001 C 114 1-1/4 In. Mortise Cylinder, 6-pin, C Keyway, Keyed Different, Straight Cam, Compression Ring & Spring, 2 Keys

Schlage 20-001-C is a conventional (standard) 1-1/4” x straight cam mortise cylinder for use with exit device trim, cylinder dogging kits, alarm kits, alarmed hardware, mullions, and mortise locks that require a 1-1/4" mortise cylinder with a straight cam. Also known as Von Duprin 3215 cylinder.

Compatible with most exit device trim requiring mortise cylinders, including the following:

  • Von Duprin Trim: 230L, 230TP, 360L, 360L-NL
  • Falcon Trim: 510L, 510L-NL, 512TP, 512NL, 212L, 212L-NL

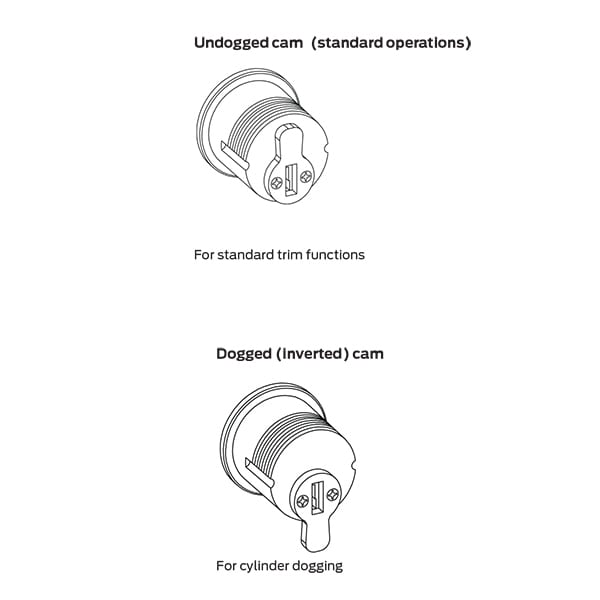

Invert the cam to use with cylinder dogging kits.

Brand

Schlage
Cylinder Length

1-1/4"
Cylinder Type

Mortise Cylinder
Finish

Bright ChromeBright BrassSatin BronzeSatin BrassSatin ChromeBlackStainless SteelOil Rubbed Bronze
Finishes

622 Matte Black626 Satin Chrome613 Oil Rubbed Bronze606 Satin Brass630 Satin Stainless Steel612 Satin Bronze605 Bright Brass625 Bright Chrome

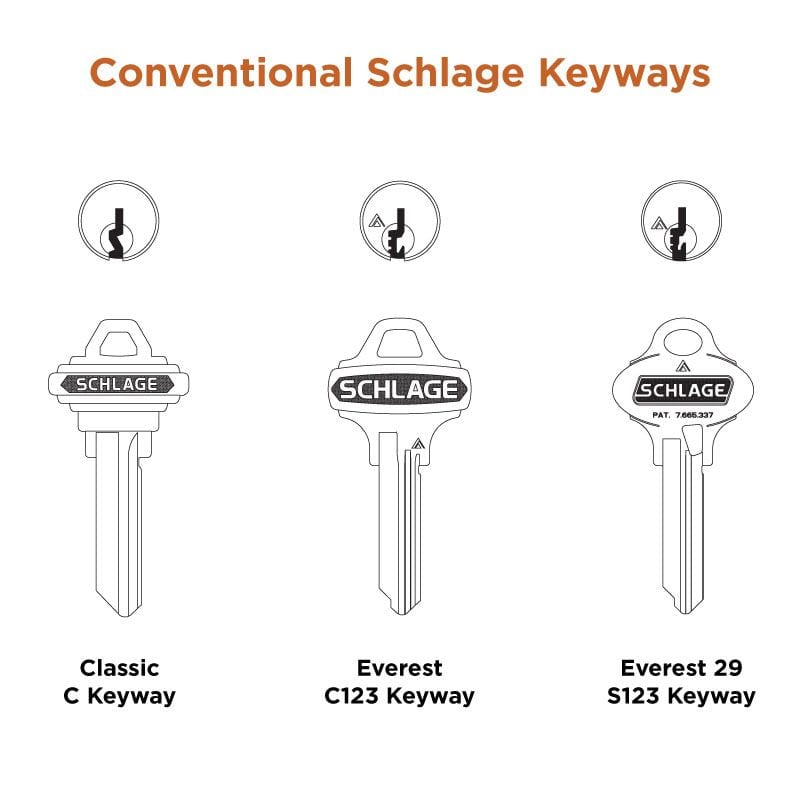

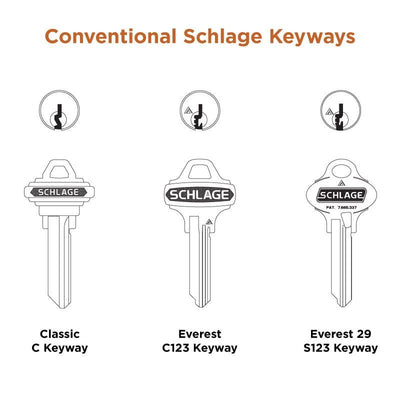

Keyway

Schlage C Keyway
