Schlage

Schlage 20-022-C Rim Cylinder, C Keyway

$64.45
Usually Ships:  1-2 Business Days
  • For use with exit device trim
  • Keyed rim cylinder - includes 2 keys (C keyway)
  • Includes horizontal tailpiece, collar, mounting screws and back plate

Available Options:

Clear

Product Overview

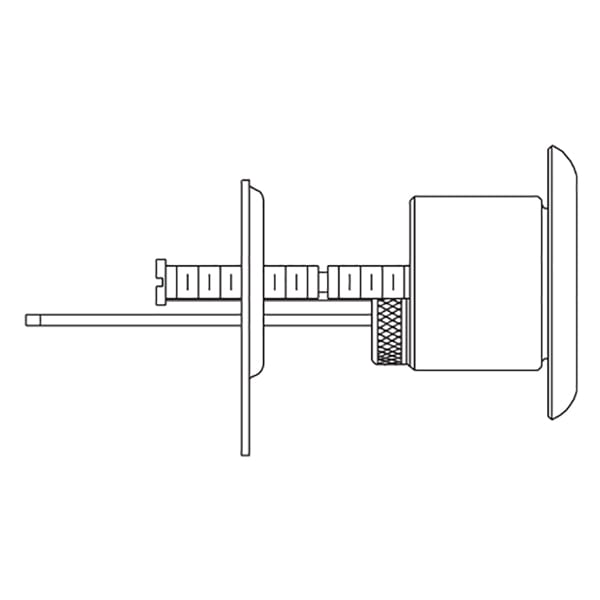

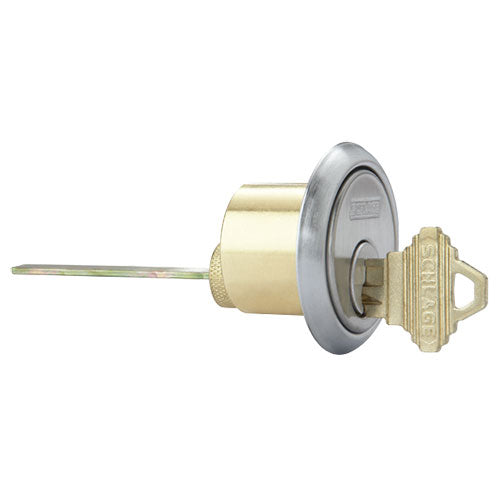

Schlage 20-022 C Rim Cylinder, 6-pin, C Keyway, Keyed Different, Horizontal Tailpiece Cam, 2 Keys

The Schlage 20-022-C is a conventional (standard) Rim Cylinder for use with exit devices, exit device trim, and alarmed hardware. Also known as Von Duprin 3216 cylinder.

Compatible with most exit device trim or devices requiring rim cylinders, including the following:

  • Von Duprin Trim: 110NL, 210NL, 230NL, 996L, 996L-NL, 990NL, 990TP
  • Von Duprin Devices: 2670
  • Falcon Trim: 218NL, 240NL
  • Ives Trim: VR910-NL
Brand

Schlage
Cylinder Type

Rim Cylinder
Finish

Satin BronzeBright ChromeBright BrassOil Rubbed BronzeSatin NickelSatin BrassSatin ChromeBlackStainless Steel
Finishes

606 Satin Brass630 Satin Stainless Steel612 Satin Bronze605 Bright Brass625 Bright Chrome622 Matte Black626 Satin Chrome619 Satin Nickel613 Oil Rubbed Bronze

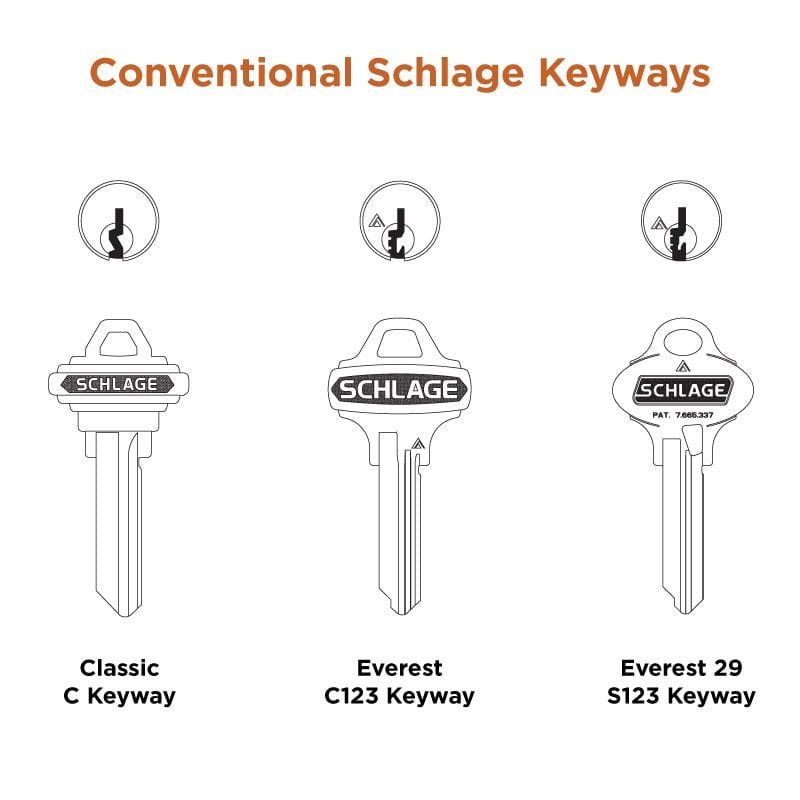

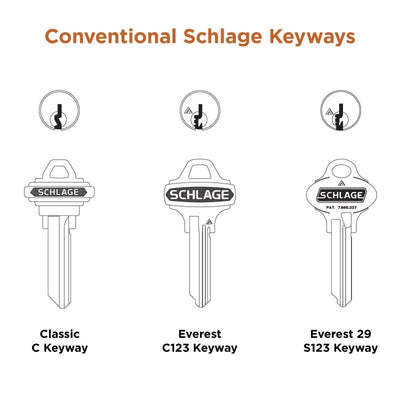

Keyway

Schlage C Keyway
