Product Overview

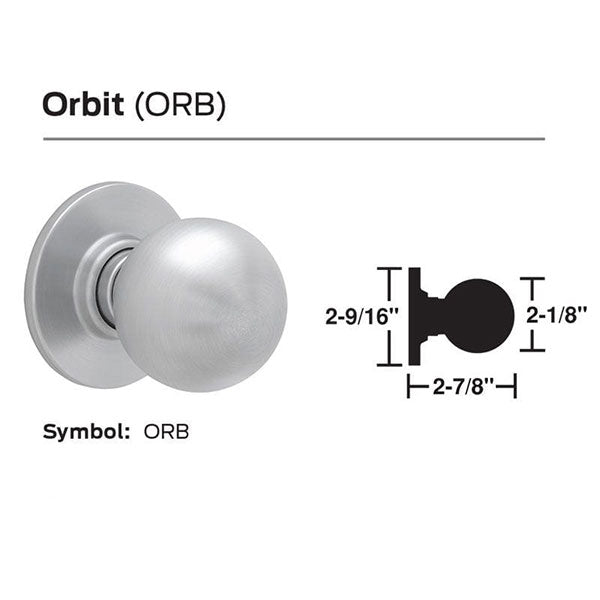

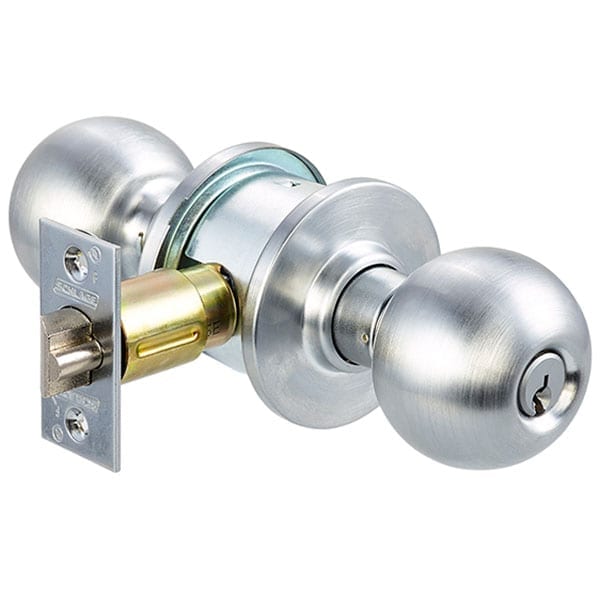

Schlage A53PD ORB Grade 2 Entrance Cylindrical Lock, Orbit Knob, Conventional Cylinder
Medium traffic commercial and heavy-duty residential locks
The A Series cylindrical lock is Schlage's first lock and continues to exceed ANSI/BHMA Grade 2 standards, allowing it to be used in a wide range of commercial and residential applications. A Series locks fit any new or existing environments.
From military barracks and offices, to fine residential homes, Schlage A Series knobs easily stand up to constant use and abuse, while keeping people and property safe.

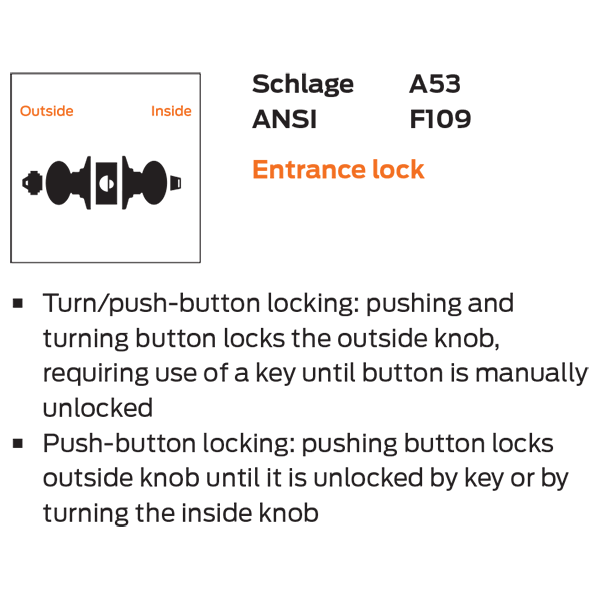

ANSI Function F109 - Deadlocking latch bolt by knobs. Turn/push button locking. Pushing and turning button locks outside knob, requiring use of a key for unlocking the door until the button is manually unlocked. Pushing button locks outside knob until unlocked by key or by rotating inside knob. Inside knob is always free.
| ANSI Grade |
Meets or exceeds A156.2 Series 4000 Grade 2 strength and operational requirements |
|---|---|
| Backset |
2-3/4" |
| Brand |
Schlage |
| Cylinder Format |
Conventional |
| Door Thickness |
1-3/8" to 1-3/4" |
| Finish |
Satin ChromeOil Rubbed Bronze |
| Finishes |
626 Satin Chrome613 Oil Rubbed Bronze |
| Fire Rating |
All locks listed for A label single doors 4' x 8' - Letter F and UL symbol on latch front indicate listing |
| Handing |
Keyed functions are reversible - Non-keyed functions are not handed |
| Keyway |
Schlage C Keyway |
| Latch |
1/2” throw deadlocking - 1-1/8" x 2-1/4" face |
| Lock Function |
Entry (Entrance) |
| Strike |
4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Usage |
Medium Duty |
