Schlage ALX70R RHO (Rhodes) Classroom Lever Lock with FSIC Full Size Interchangeable Core

$236.66
Usually Ships:  1-2 Business Days
  • ANSI/BHMA Certified A156.2, Grade 2
  • Core included, furnished 1-bitted with two (2) operating key blanks
  • Control key not included (sold separately)

Available Options:

Clear

Product Overview

Schlage ALX70R RHO Grade-2 Cylindrical Lever Lock, Classroom Function, Rhodes Lever, Includes Full Size Interchangeable Core (FSIC)

Perfectly suited to the ND grade 1 series, ALX also allows you to seamlessly suite between the two to gain grade 1 strength, security, and functionality when and where you need it.

Interchangeable core users can enjoy the convenience of fast rekeying without having to disassemble the lock. This feature is very useful in applications where a high frequency of core changes are needed.

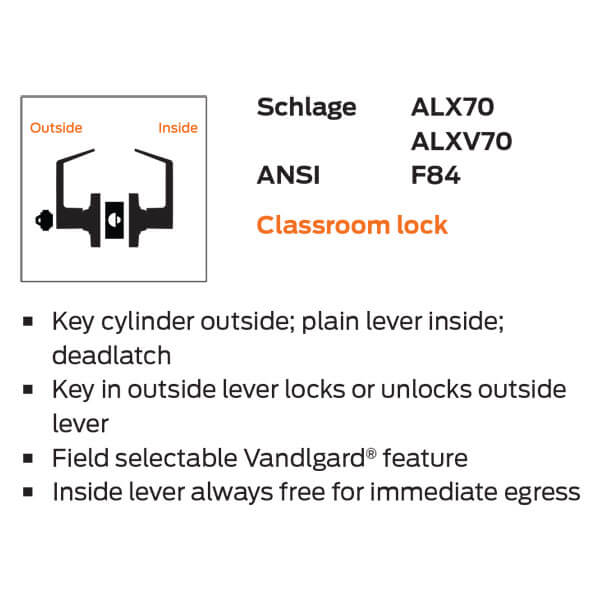

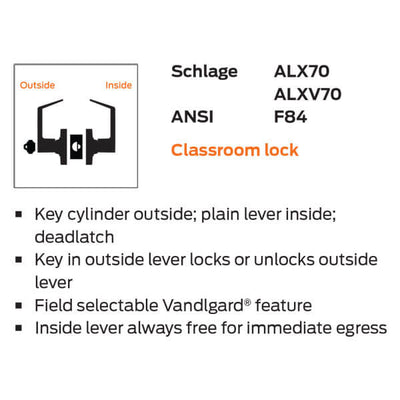

ANSI Function F84 – Outside lever is locked and unlocked by key; inside lever is always unlocked; inside lever always free for immediate egress.

  • Supplied 1-bitted, ready to be keyed
  • No control key is included (must be ordered separately – see the links below)
  • For medium to heavy-duty commercial door applications
  • Field selectable Vandlgard® feature - Converts to ALXV70
  • Accommodates 1-3/8" to 1-3/4" door thickness with minimal chassis adjustment
  • Deep-drawn spindle with 5 points of lever engagement minimizes droop and wobble
  • Grade 1 compression springs

Control Keys (must be purchased separately)

codes

ANSI/BHMA Standard

Certified A156.2-2011 Series 4000 Grade 2; exceeds standard for lever and spindle strength and durability
Backset

2-3/4"
Brand

Schlage
Cylinder Format

Full Size Interchangeable Core (FSIC)
Cylinder & Keys

Schlage FSIC with core 1-bitted with 2 keys
Door Thickness

1-3/8" to 1-3/4"
Finish

BlackDark BronzeAged BronzeBright ChromeBright BrassSatin BronzeSatin BrassSatin ChromeSatin Chrome AM (Antimicrobial)Satin Nickel
Finishes

619 Satin Nickel613 Oil Rubbed Bronze606 Satin Brass626AM Satin Chrome Antimicrobial643e Aged Bronze612 Satin Bronze605 Bright Brass625 Bright Chrome622 Matte Black626 Satin Chrome
Fire Rating

UL/cUL listed up to 3 Hours – UL symbol on the latch front
Handing

Non-Handed
Keyway

Schlage C KeywaySchlage S123 Keyway
Latch

1/2” throw deadlocking - 1-1/8" x 2-1/4" face

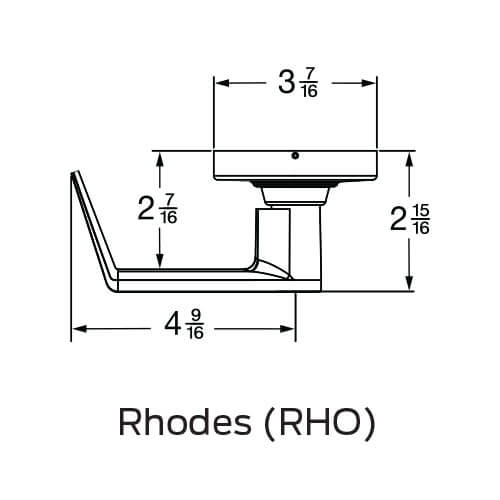

Lever Design

RHO (Rhodes)
Lock Function

Classroom
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage

Medium Duty
Warranty

10 Year Limited
