Schlage

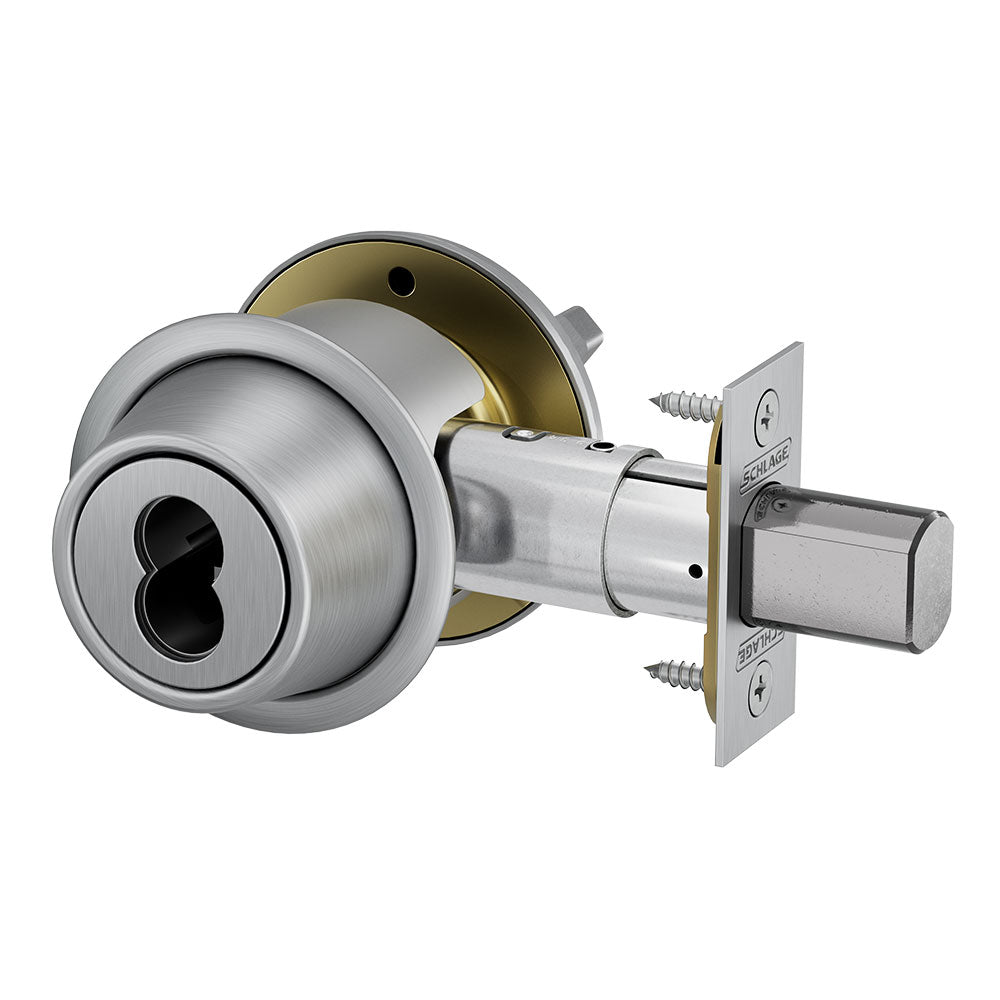

Schlage B560B Single Cylinder Deadbolt, Less Small Format Interchangeable Core

$104.05
Usually Ships:  1-2 Business Days
  • ANSI Function E0151
  • Single cylinder x inside turn
  • (SFIC) small format interchangeable core prep (less core)

Available Options:

Clear

Product Overview

Schlage B560B Single Cylinder Deadbolt, SFIC Prep, Less Core, Adjustable 2-3/8" and 2-3/4" Backset

ANSI Function E0151: Deadbolt thrown or retracted by key outside or thumbturn inside

  • SFIC (small format interchangeable core) core sold separately
  • 2-3/8" to 2-3/4" Adjustable Backset (1-1/8" x 2-1/4" latch face)
  • Quick, easy installation - Adjustable backset locks into place
  • Anti-pry shield protects latch from attacks
  • Metal dust box provides deep anchoring and added strength
  • Primary or auxiliary locking for commercial buildings
  • High security locking for residential buildings
  • Can be suited with virtually all Schlage levers and knobs
ANSI Function

E0151
ANSI/BHMA Standard

ANSI A156.36 Grade 2. When installed with SFIC cylinder Grade 3.
Backset

2-3/8" to 2-3/4" Adjustable
Bolt

1" throw bolt 1-1/8" x 2-1/4" square corner face plate
Brand

Schlage
Cylinder

Small Format Interchangeable Core (SFIC) Cylinder (Less Core)
Cylinder Format

Small Format Interchangeable Core (SFIC)
Deadbolt Type

Single Cylinder
Door Thickness

1-3/8" to 1-3/4"
Finish

Satin BrassSatin ChromeOil Rubbed BronzeAntique BrassSatin BronzeBlackSatin NickelBright ChromeBright BrassAged Bronze
Finishes

625 Bright Chrome622 Matte Black626 Satin Chrome609 Antique Brass613 Oil Rubbed Bronze606 Satin Brass619 Satin Nickel612 Satin Bronze605 Bright Brass
Fire Rating

None
Strike

1-1/8” x 2-3/4“ square corner
Usage

Medium Duty
