Schlage

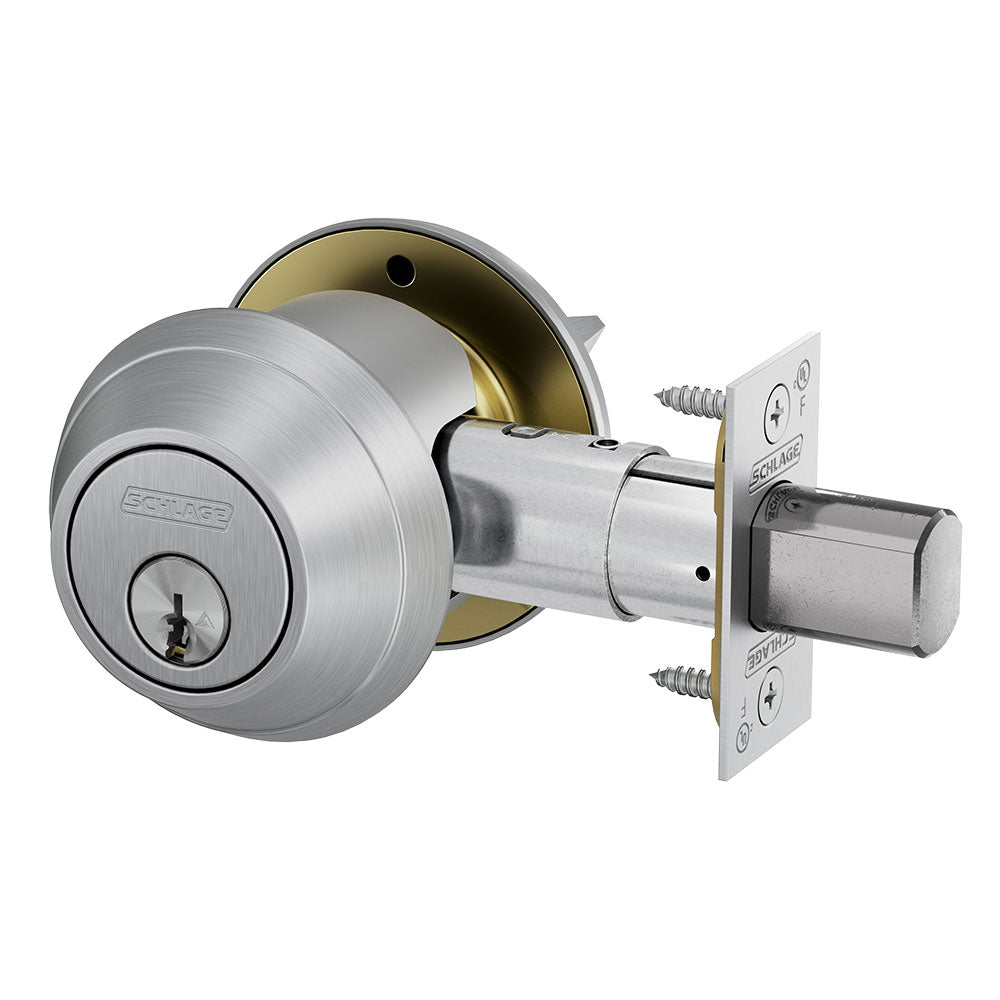

Schlage B663P Classroom Deadbolt

$181.74
Usually Ships:  1-2 Business Days
  • ANSI Grade 1 Certified
  • Classroom Function, ANSI E0171
  • 2-3/4" backset, 1" throw bolt

Available Options:

Clear

Product Overview

Schlage B663P Grade 1 Classroom Deadbolt, 2-3/4" Backset

B600 Series - Schlage’s toughest and highest grade heavy-duty Grade 1 commercial deadbolts. Choose the B600 Series for Grade 1 security in high-traffic commercial applications.

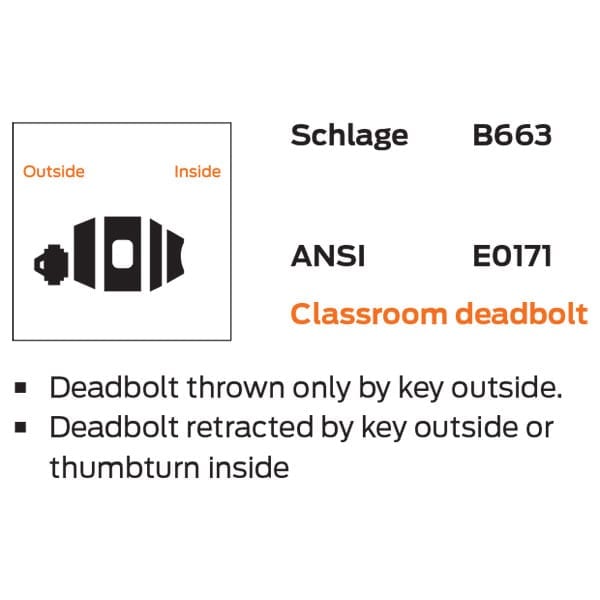

ANSI Function: E0171 - Deadbolt thrown only by key outside; retracted by key outside or thumbturn inside.

  • 1" throw, high-strength steel alloy deadbolt with hardened steel roller resists sawing and kick-in attacks
  • Metal shield protects bolt from ice-pick attack through the door
  • Hardened steel ball-bearings protect mounting bolts from drill attack
ANSI Function

E0171
ANSI Grade

ANSI Grade 1
ANSI/BHMA Standard

ANSI A156.36 Grade 1
Backset

2-3/4"
Bolt

1" throw bolt 1-1/8" x 2-1/4" square corner face plate
Brand

Schlage
Cylinder Format

Conventional
Cylinder & Keys

6-pin conventional keyed different with 2 keys
Deadbolt Type

Classroom
Door Thickness

1-3/4" to 2"
Finish

Satin BrassSatin ChromeSatin NickelBlackAged BronzeBright ChromeBright BrassOil Rubbed BronzeAntique BrassSatin Bronze
Finishes

609 Antique Brass625 Bright Chrome606 Satin Brass619 Satin Nickel613 Oil Rubbed Bronze605 Bright Brass643e Aged Bronze612 Satin Bronze626 Satin Chrome
Fire Rating

UL Listed for “A” Label 3 Hour Fire Doors
Keyway

Schlage C KeywaySchlage S123 Keyway
Strike

1-1/8” x 2-3/4“ square corner
Usage

Heavy Duty
