Product Overview

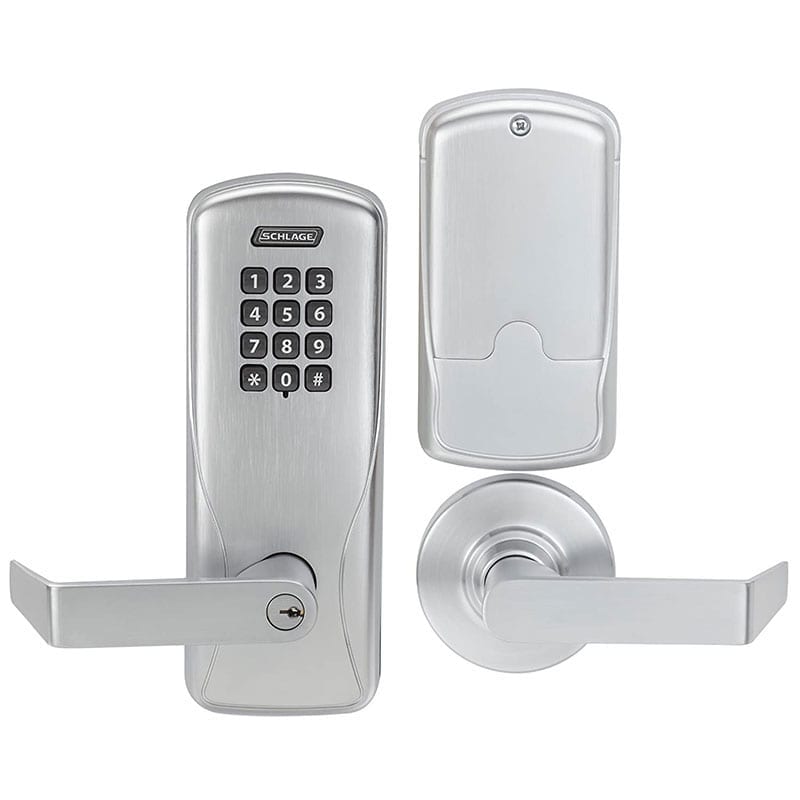

Schlage CO-100-CY-70-KP-RHO Grade 1 Standalone Electronic Cylindrical Lock, Storeroom Function, Keypad Reader, Rhodes Lever, With Schlage Standard Cylinder
This simple, standalone keypad-entry lock is designed for up to 500 unique users using PIN codes only. The CO-100 is an economic alternative when trying to minimize key distribution. User rights are stored on the lock with unique PINs assigned to each user. This minimizes the number of mechanical keys issued, protecting the integrity of a facility’s key system. Administrator level users program the CO-100 using its keypad at the door to add or delete user PINs or change preferences or functions at any time.

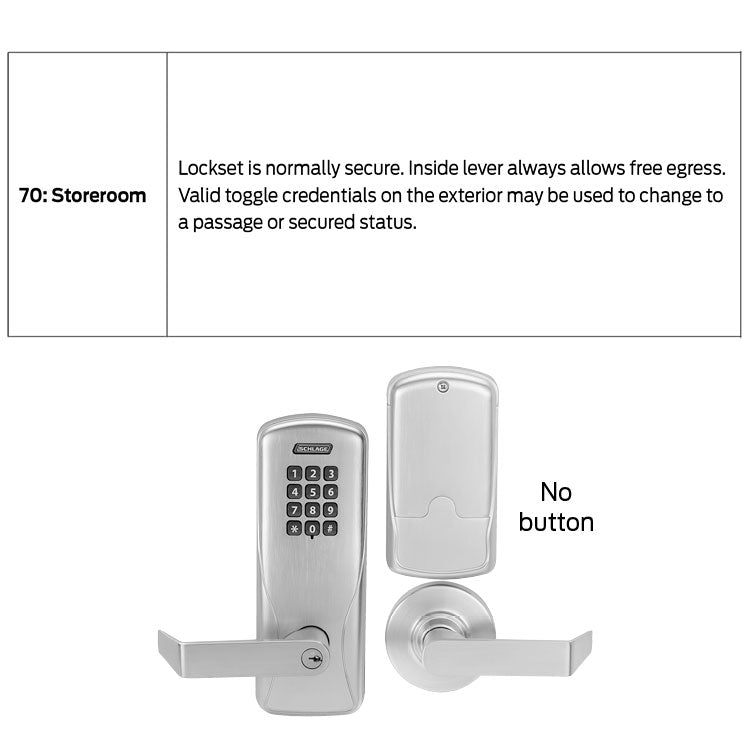

Storeroom Function (70): Lockset is normally secure. Inside lever always allows free egress. Valid toggle credentials on the exterior may be used to change to a passage or secured status.
- 4 AA batteries included – up to 2-year battery life
- Helps to minimize key distribution to ensure the integrity of the key system over time
- Manages up to 500 unique 3-6 digit PIN codes with user rights stored on the lock
- ANSI/BHMA A156.25, ANSI/BHMA Grade 1 certified and UL 294 Listed
The CO-100 is ideal for:
- Visitor pass through/common areas
- Vestibules or reception area doors controlled by remote release
- Maintenance areas
- Supply/equipment rooms
- Workout/exclusive use spaces
- Private spaces such as restrooms, nursing, or fitting rooms – anywhere visual occupancy indication is desired
| Backset |
2-3/4" |
|---|---|
| Battery Life |
Up to 2 yrs with 4 AA batteries |
| Brand |
Schlage |
| Certifications |
ANSI/BHMA A156.25 ANSI/BHMA Grade 1 UL 294 |
| Cylinder Format |
Conventional |
| Cylinder & Keys |
6-pin conventional keyed different with 2 keys |
| Door Applications |
Interior or Exterior Doors - ANSI/BHMA A156.25 full outdoor |
| Door Thickness |
1-3/4" |
| Finish |
Satin BrassSatin BronzeBright BrassSatin NickelBright ChromeSatin ChromeSatin Chrome AM (Antimicrobial)Aged Bronze |
| Finishes |
619 Satin Nickel612 Satin Bronze626 Satin Chrome626AM Satin Chrome Antimicrobial643e Aged Bronze606 Satin Brass625 Bright Chrome605 Bright Brass |
| Handing |
Non-Handed |
| Keyway |
Schlage C KeywaySchlage S123 Keyway |
| Latch |
1/2” throw deadlocking - 1-1/8" x 2-1/4" face |
| Lever Design |
RHO (Rhodes) |
| Lock Function |
Storeroom |
| Lock Type |
Cylindrical Lock |
| Power |
4 AA batteries |
| Strike |
4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Usage |
Heavy Duty |
| Users |
Up to 500 |
| Warranty |
1 Year |
