Schlage

Schlage L9040 06A OS-OCC Privacy Mortise Lock with VACANT/OCCUPIED Indicator, 06 Lever, A Rose

$944.30
This item ships FREE! Usually Ships:  1-2 Business Days
  • Extra Heavy-Duty, ANSI/BHMA Grade-1 Certified
  • ANSI Function: F22 - Privacy/Bath
  • Includes VACANT/OCCUPIED Indicator

Available Options:

Clear

Product Overview

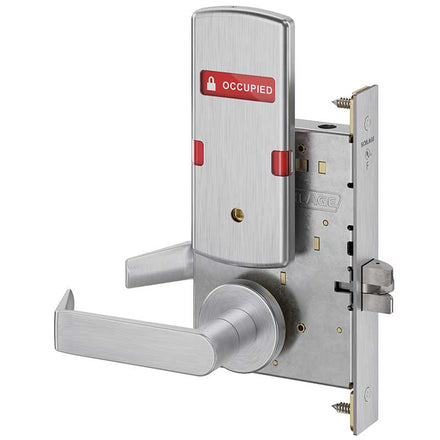

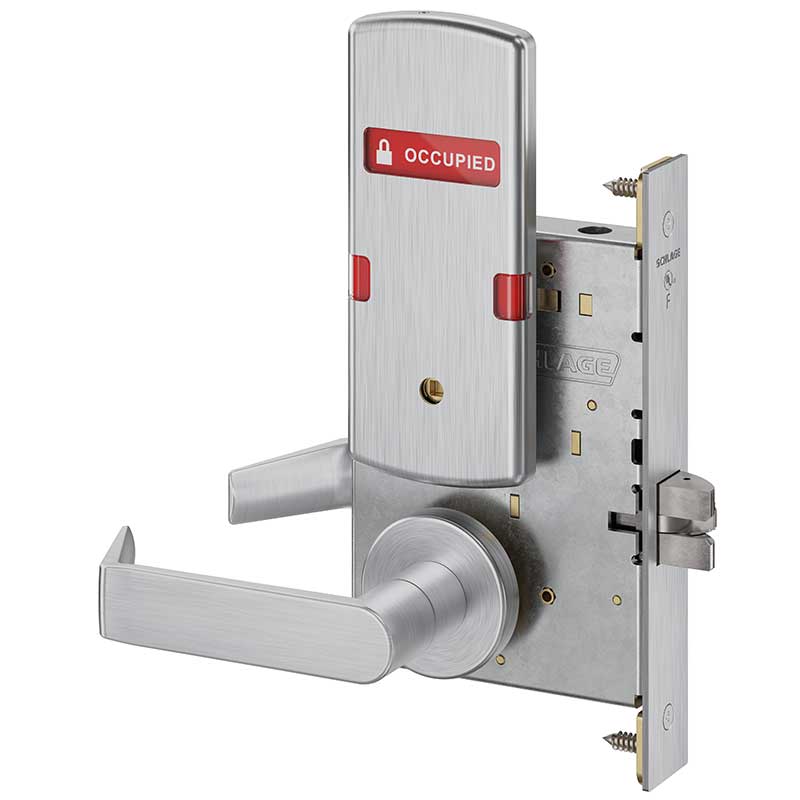

Schlage L9040 OS-OCC Bath, Bedroom Privacy Mortise Lock, 06A Design, VACANT/OCCUPIED Indicator for Outside of Door

Nothing is tougher. The L Series is built to withstand the rigors of daily use without fail and is among the most durable, dependable and intelligent family of products on the market today. When you choose a Schlage lock you can have confidence you’ve chosen a solution that will provide protection at the most critical moments.

L Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse.

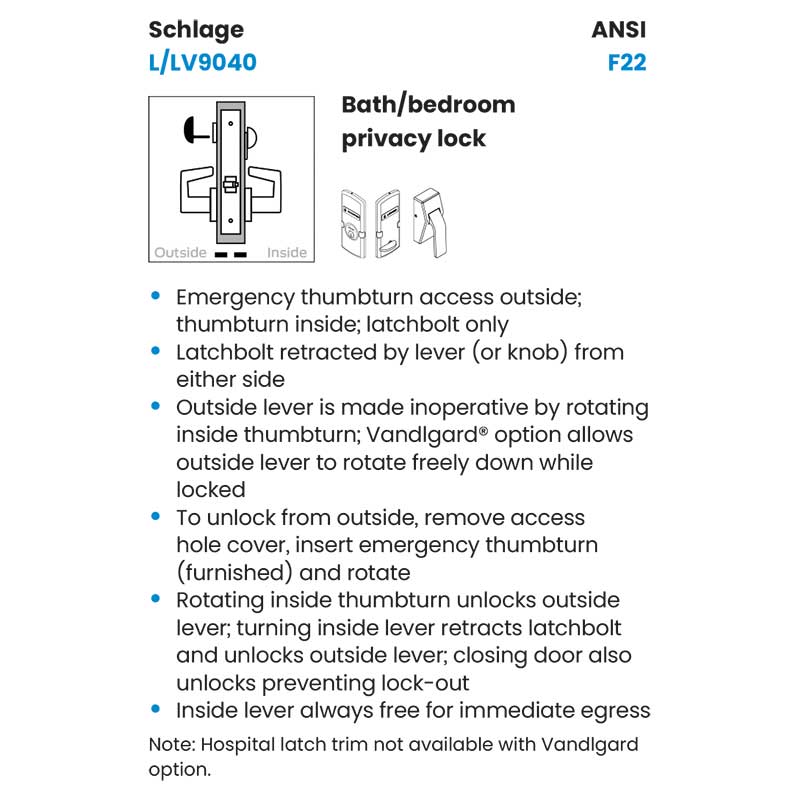

ANSI F22 - Privacy - Latchbolt retracted by lever from either side unless outside is locked by inside thumbturn. Turning inside lever or closing door unlocks outside lever. To unlock from outside remove emergency button, insert emergency thumbturn (furnished) in access hole and rotate. Inside lever is always free for immediate egress.

  • Patented, 180-Degree, High-Visibility Lock Status Indicator
  • Maximized message size
  • Red and white backgrounds to serve color-blind needs
  • Exceeds ANSI/BHMA Grade 1 Security and Operational standards
  • UL listed for 3-hour fire door
  • Meet ADA requirements

codes

ANSI Function

F22
ANSI Grade

ANSI A156.13 Series 1000 Operational Grade 1 and Security Grade 1
Armored Front

1-1/4" x 8" x 7/32" standard
Backset

2-3/4"
Brand

Schlage
Case

Steel case and parts are corrosion resistant
Case Size

4-7⁄16" x 6-1⁄16" x 1"
Door Thickness

1-3/4"
Finish

Satin ChromeOil Rubbed BronzeStainless SteelBlackAged Bronze
Finishes

643e Aged Bronze622 Matte Black630 Satin Stainless Steel626 Satin Chrome613 Oil Rubbed Bronze
Fire Rating

“A” Label 3 Hour Fire Doors UL10C Positive Pressure Rated
Handing

Field-reversible handing without opening lock case
Lever Design

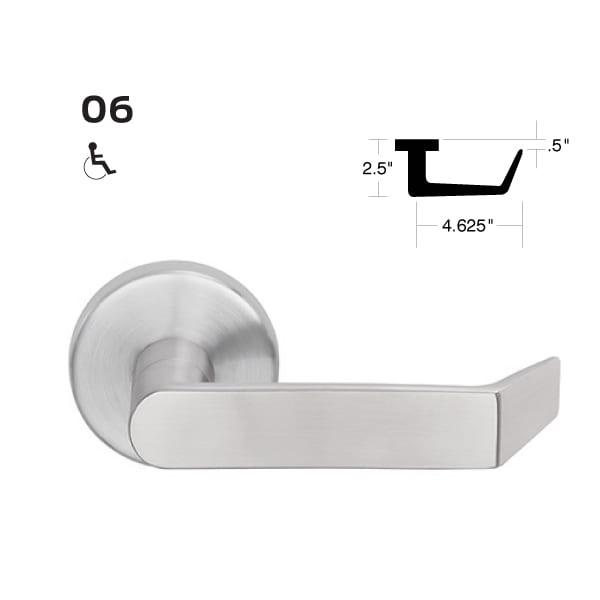

06A
Lock Function

Privacy w/ Indicator
Strike

ANSI curved lip strike 1-1/4" x 4-7/8" x 13/16" lip to center with dust box standard
Usage

Heavy Duty
