Product Overview

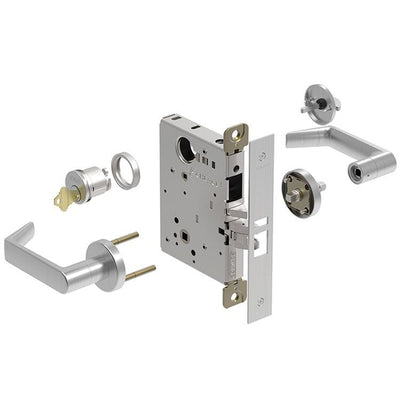

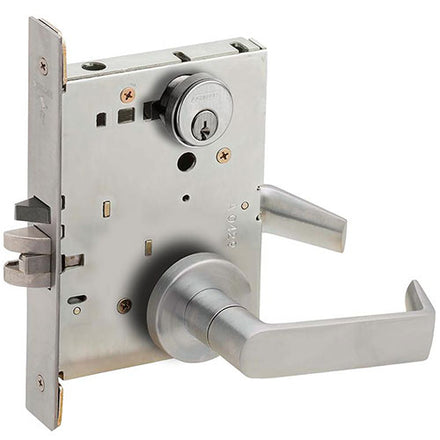

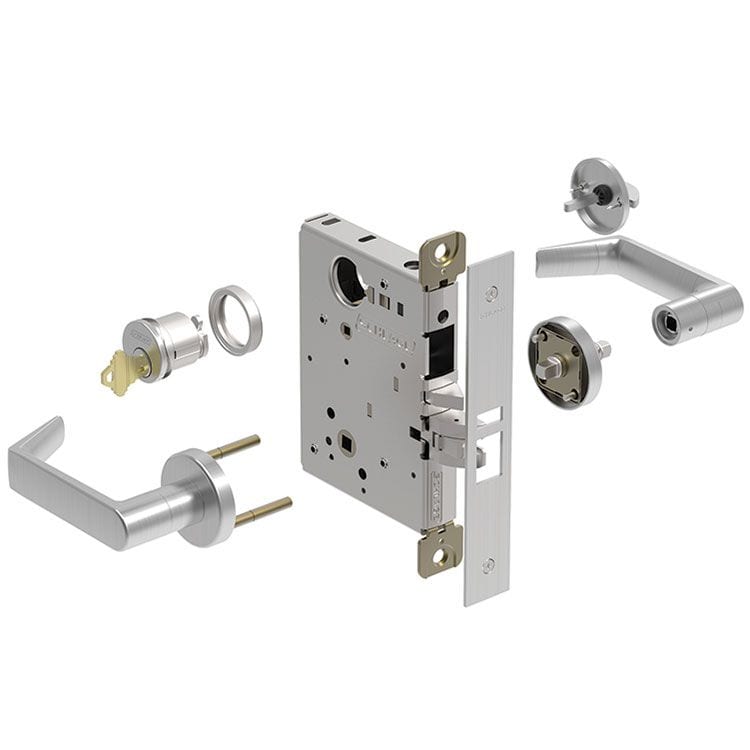

Schlage L9050P Grade 1 Entrance Office Mortise Lock, Conventional Cylinder, 06 Lever, A Rose, Field Reversible
Nothing is tougher. The L Series is built to withstand the rigors of daily use without fail and is among the most durable, dependable and intelligent family of products on the market today. When you choose a Schlage lock you can have confidence you’ve chosen a solution that will provide protection at the most critical moments.
L Series locks are ideal for use in schools, hospitals, and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse.

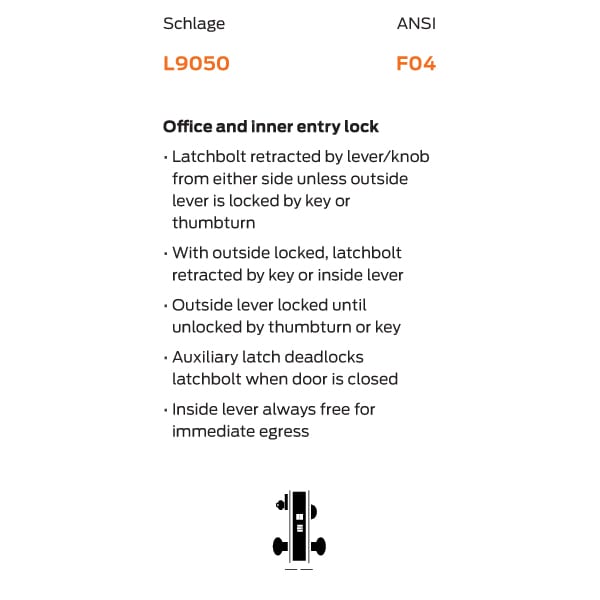

ANSI F04 - Office/Entry - Latchbolt retracted by lever from either side unless outside is made inoperative by key outside or by turning inside thumbturn. When outside is locked, latchbolt is retracted by key outside or by lever inside. Outside lever remains locked until thumbturn is returned to vertical or unlocked by key. Auxiliary latch deadlocks latchbolt when door is closed. Inside liner is always free for immediate egress.
- Exceeds ANSI/BHMA Grade 1 Security and Operational standards
- UL listed for 3-hour fire door
- Meet ADA requirements
| ANSI Function |
F04 |
|---|---|
| ANSI Grade |
ANSI A156.13 Series 1000 Operational Grade 1 and Security Grade 1 |
| Armored Front |
1-1/4" x 8" x 7/32" standard |
| Backset |
2-3/4" |
| Brand |
Schlage |
| Case |
Steel case and parts are corrosion resistant |
| Case Size |
4-7⁄16" x 6-1⁄16" x 1" |
| Cylinder Format |
Conventional |
| Cylinder & Keys |
30-001 cylinder keyed different with 2 keys |
| Door Thickness |
1-3/4" |
| Finish |
Satin ChromeSatin NickelBlackStainless SteelOil Rubbed BronzeSatin Chrome AM (Antimicrobial)Aged BronzeBright ChromeBright BrassSatin BronzeSatin Brass |
| Finishes |
626AM Satin Chrome Antimicrobial619 Satin Nickel625 Bright Chrome622 Matte Black626 Satin Chrome643e Aged Bronze613 Oil Rubbed Bronze606 Satin Brass630 Satin Stainless Steel612 Satin Bronze605 Bright Brass |
| Fire Rating |
“A” Label 3 Hour Fire Doors UL10C Positive Pressure Rated |
| Handing |
Field-reversible handing without opening lock case |
| Keyway |
Schlage C KeywaySchlage S123 Keyway |
| Latchbolt |
3⁄4" throw stainless steel latch with anti-friction tongue |

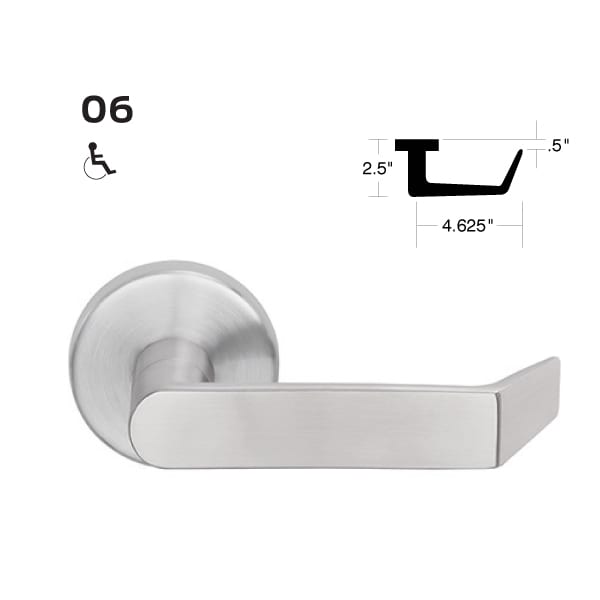

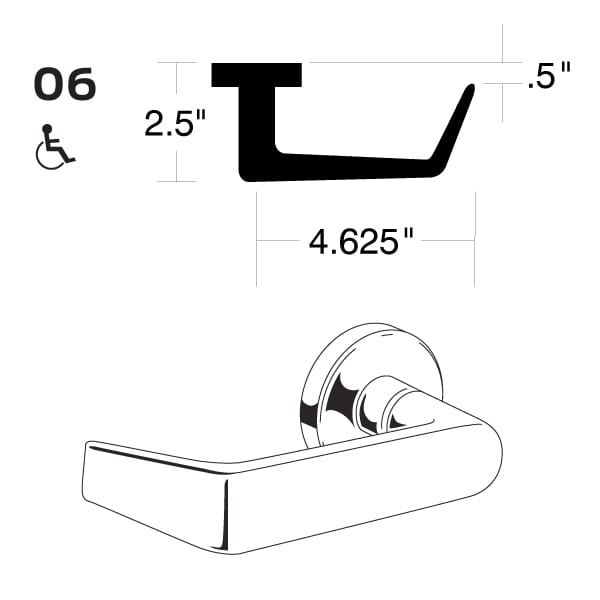

| Lever Design |
06A |
| Lock Function |
Office |
| Strike |
ANSI curved lip strike 1-1/4" x 4-7/8" x 13/16" lip to center with dust box standard |
| Usage |
Heavy Duty |
