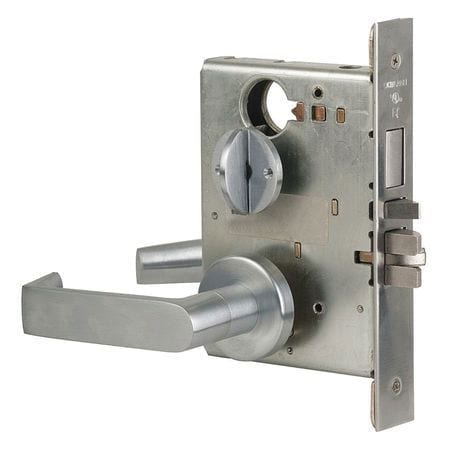

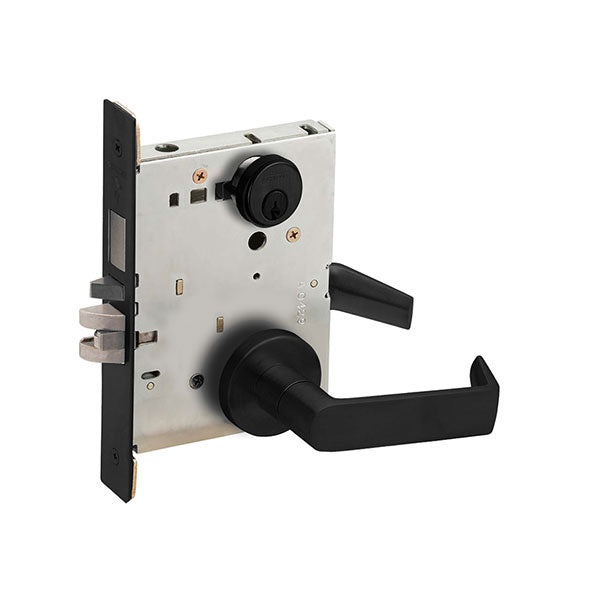

Schlage L9453P Entrance Mortise Lock with Deadbolt, 06A Design, Conventional Cylinder

Nothing is tougher. The L Series is built to withstand the rigors of daily use without fail and is among the most durable, dependable, and intelligent family of products on the market today. When you choose a Schlage lock you can have confidence you’ve chosen a solution that will provide protection at the most critical moments.

L Series locks are ideal for use in schools, hospitals, and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse.

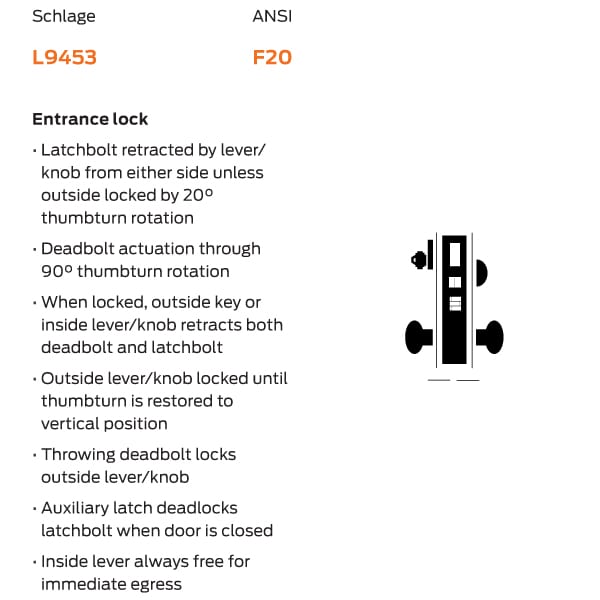

ANSI F20 - Entrance - Latchbolt retracted by lever from either side unless outside is locked by 20° rotation of thumbturn. Deadbolt thrown or retracted by 90° rotation of thumbturn. When locked, key outside or lever inside retracts deadbolt and latchbolt simultaneously. Outside lever remains locked until thumbturn is restored to vertical position. Throwing deadbolt automatically locks outside lever. Auxiliary latch deadlocks latchbolt when door is closed. Inside lever is always free for immediate egress.

  • Exceeds ANSI/BHMA Grade 1 Security and Operational standards
  • UL listed for 3-hour fire door
  • Meet ADA requirements

codes

ANSI Function

F20

ANSI Grade

ANSI A156.13 Series 1000 Operational Grade 1 and Security Grade 1

Armored Front

1-1/4" x 8" x 7/32" standard

Backset

2-3/4"

Brand

Schlage

Case

Steel case and parts are corrosion resistant

Case Size

4-7⁄16" x 6-1⁄16" x 1"

Cylinder Format

Conventional

Cylinder & Keys

30-001 cylinder keyed different with 2 keys

Deadbolt

1" throw stainless steel deadbolt and 3/4" throw stainless steel latch with anti-friction tongue

Door Thickness

1-3/4"

Finish

Satin ChromeOil Rubbed BronzeSatin Chrome AM (Antimicrobial)Satin NickelBlackStainless SteelAged BronzeBright ChromeBright BrassSatin BronzeSatin Brass

Finishes

625 Bright Chrome622 Matte Black626 Satin Chrome613 Oil Rubbed Bronze606 Satin Brass626AM Satin Chrome Antimicrobial630 Satin Stainless Steel612 Satin Bronze605 Bright Brass

Fire Rating

“A” Label 3 Hour Fire Doors UL10C Positive Pressure Rated

Handing

Field-reversible handing without opening lock case

Keyway

Schlage C KeywaySchlage S123 Keyway

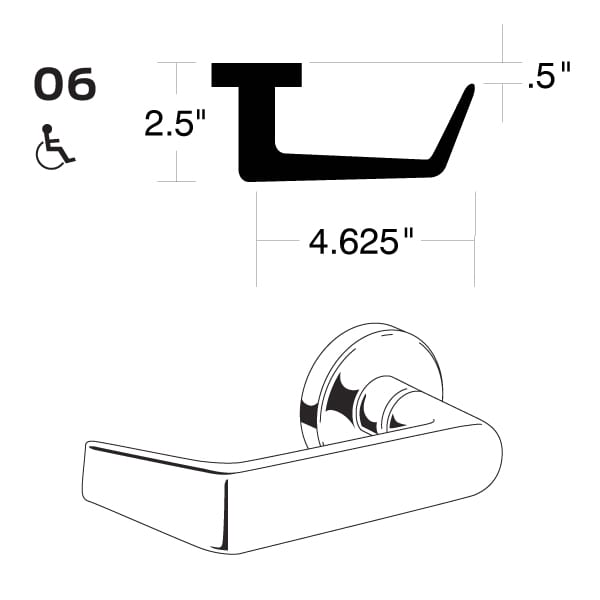

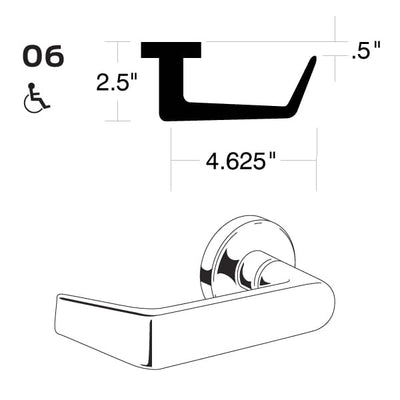

Lever Design

06A

Lock Function

Entry w/ Deadbolt

Strike

ANSI curved lip strike 1-1/4" x 4-7/8" x 13/16" lip to center with dust box standard

Usage

Heavy Duty
