Schlage

Schlage ND10S RHO (Rhodes) Passage Lever

$413.91
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade 1
  • ADA compliant, 3-hour fire-rated
  • Both levers always unlocked

Available Options:

Clear

Product Overview

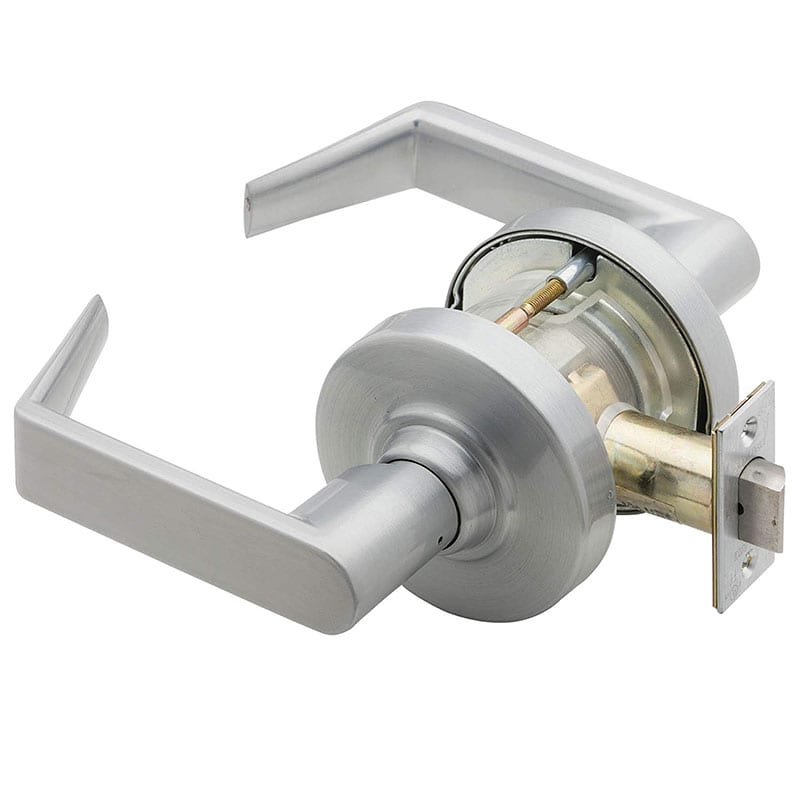

Schlage ND10S RHO Grade-1 Cylindrical Lever Lock, Passage Function, Rhodes Lever

The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is regularly used in healthcare, education, government, office, retail, and other commercial applications.

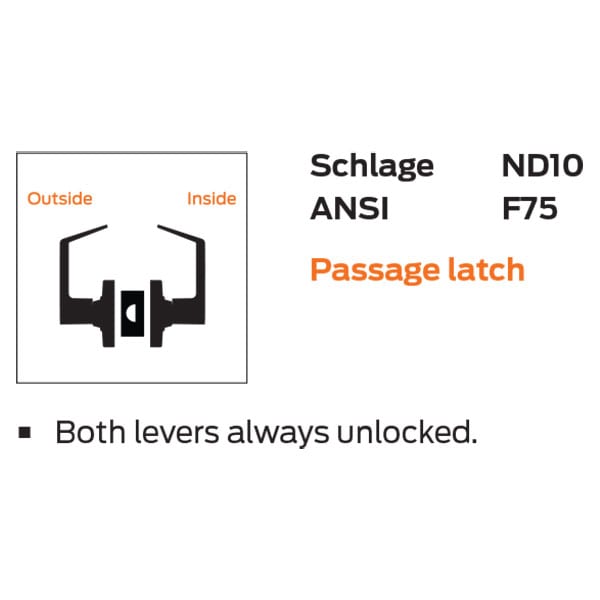

ANSI Function F75 - Latch bolt by levers at all times.

  • Significantly exceeds ANSI/BHMA Grade 1 requirements
  • Shows nearly zero droop or wobble after 16 million cycles
  • The strongest cylindrical lock Schlage has ever built

ANSI/BHMA Standard

Meets and Exceeds ANSI/BHMA A156.2 Series 4000 Grade 1
Backset

2-3/4"
Brand

Schlage
Door Thickness

1-3/4"
Finish

BlackDark BronzeSatin NickelBright ChromeBright BrassAged BronzeSatin BrassSatin ChromeSatin Chrome AM (Antimicrobial)Satin Bronze
Finishes

625 Bright Chrome622 Matte Black626 Satin Chrome626AM Satin Chrome Antimicrobial619 Satin Nickel613 Oil Rubbed Bronze606 Satin Brass643e Aged Bronze612 Satin Bronze605 Bright Brass
Fire Rating

UL/cUL listed up to 3 Hours (A Label) - UL symbol on the latch front
Handing

Non-Handed
Latch

1/2" throw - 1-1/8" x 2-1/4" face

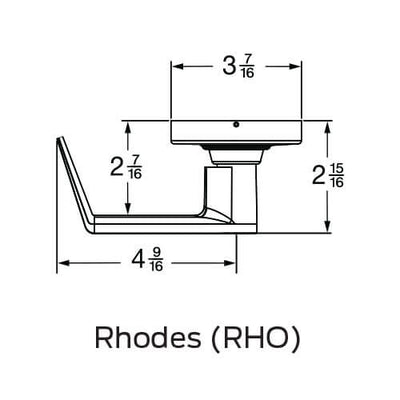

Lever Design

RHO (Rhodes)
Lock Function

Passage
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage

Heavy Duty
Warranty

10 Years
Schlage_ND_Series_Standard_Installation_Instructions_111531_manf_after_1-31-2017 How to Install Von Duprin 98/99 Rim Exit Device
