Schlage

Schlage ND50PD ATH (Athens) Entrance/Office Lever Lock

$564.48
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade 1
  • ANSI Function F82 – Entrance/Office
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

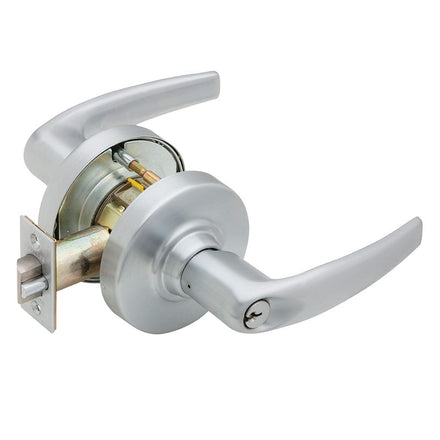

Schlage ND50PD ATH Grade-1 Cylindrical Lever Lock, Entrance/Office Function, Athens Lever

The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is regularly used in healthcare, education, government, office, retail, and other commercial applications.

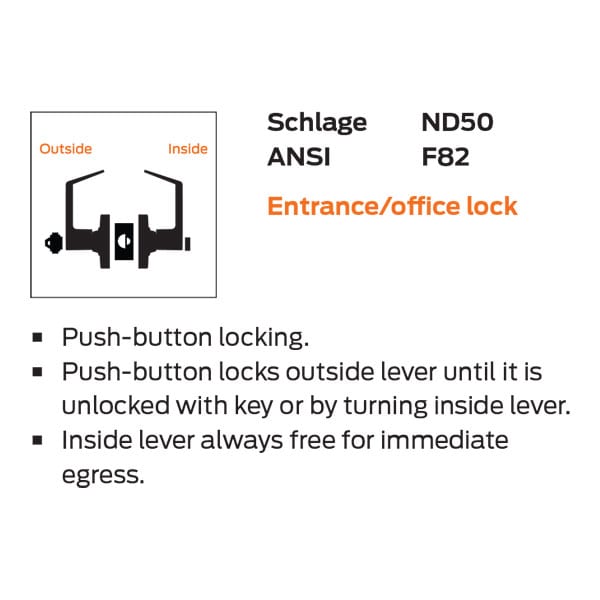

ANSI Function F82 – Push-button locking. Push-button locks outside lever until it is unlocked with key or by turning inside lever. Inside lever always free for immediate egress.

  • Significantly exceeds ANSI/BHMA Grade 1 requirements
  • Withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks
  • Not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles
  • The strongest cylindrical lock Schlage has ever built

ANSI/BHMA Standard

Meets and Exceeds ANSI/BHMA A156.2 Series 4000 Grade 1
Backset

2-3/4"
Brand

Schlage
Cylinder Format

Conventional
Cylinder & Keys

6-pin conventional keyed different with 2 keys
Door Thickness

1-3/4"
Finish

Dark BronzeSatin NickelBright ChromeBright BrassAged BronzeSatin BrassSatin ChromeSatin Chrome AM (Antimicrobial)Satin BronzeBlack
Finishes

619 Satin Nickel625 Bright Chrome622 Matte Black626 Satin Chrome626AM Satin Chrome Antimicrobial613 Oil Rubbed Bronze606 Satin Brass643e Aged Bronze612 Satin Bronze605 Bright Brass
Fire Rating

UL/cUL listed up to 3 Hours (A Label) - UL symbol on the latch front
Handing

Non-Handed
Keyway

Schlage C KeywaySchlage S123 Keyway
Latch

1/2” throw deadlocking - 1-1/8" x 2-1/4" face
Lever Design

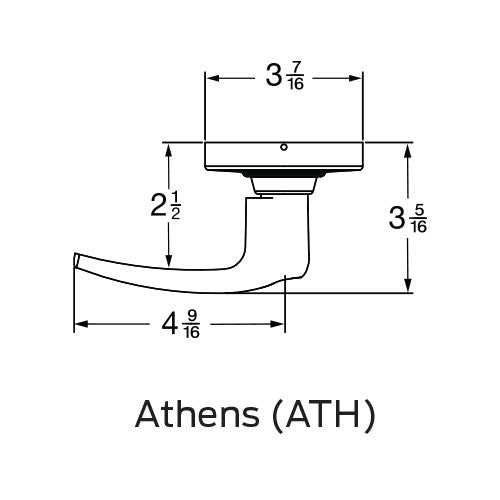

ATH (Athens)
Lock Function

OfficeEntry (Entrance)
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage

Heavy Duty
Warranty

10 Years
Schlage_ND_Series_Standard_Installation_Instructions_111531_manf_after_1-31-2017 How to Install Von Duprin 98/99 Rim Exit Device
