Schlage

Schlage ND53PD LAT (Latitude) Entrance Lever Lock

$564.48
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade 1
  • ANSI Function F109 – Entrance
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

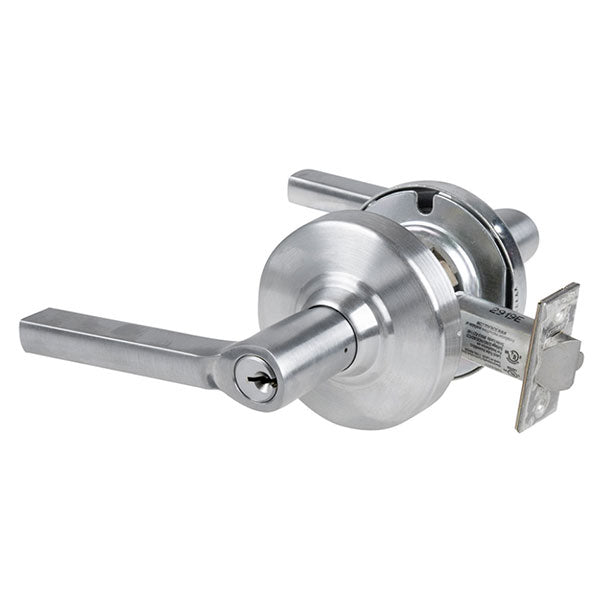

Schlage ND53PD LAT Grade-1 Cylindrical Lever Lock, Entrance Function, Latitude Lever

The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is regularly used in healthcare, education, government, office, retail, and other commercial applications.

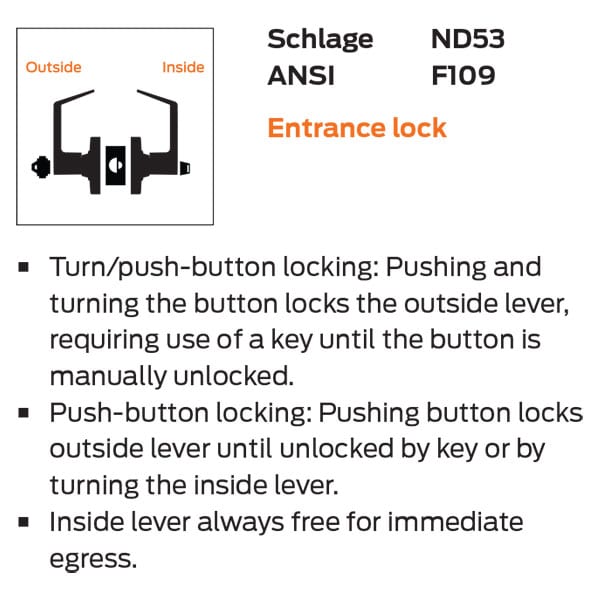

ANSI Function F109 – Key cylinder outside; push/turn button inside; deadlatch. Inside button locks outside lever by pushing button or pushing and turning button. Pushed button: unlock with key outside or by rotating inside lever. Pushed/turned button: key outside retracts latch only; unlock by returning inside button to home position then using key or rotating inside lever. Inside lever always free for immediate egress.

  • Significantly exceeds ANSI/BHMA Grade 1 requirements
  • Withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks
  • Not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles
  • The strongest cylindrical lock Schlage has ever built

codes

ANSI/BHMA Standard

Meets and Exceeds ANSI/BHMA A156.2 Series 4000 Grade 1
Backset

2-3/4"
Brand

Schlage
Cylinder Format

Conventional
Cylinder & Keys

5-pin or 6-pin conventional keyed different with 2 keys
Door Thickness

1-3/4"
Finish

Bright BrassAged BronzeSatin BrassSatin ChromeSatin BronzeBlackDark BronzeSatin Chrome AM (Antimicrobial)Satin NickelBright Chrome
Finishes

619 Satin Nickel613 Oil Rubbed Bronze606 Satin Brass626AM Satin Chrome Antimicrobial643e Aged Bronze612 Satin Bronze605 Bright Brass625 Bright Chrome622 Matte Black626 Satin Chrome
Fire Rating

UL/cUL listed up to 3 Hours – UL symbol on the latch front
Handing

Non-Handed
Keyway

Schlage S123 KeywaySchlage C Keyway
Latch

1/2” throw deadlocking - 1-1/8" x 2-1/4" face

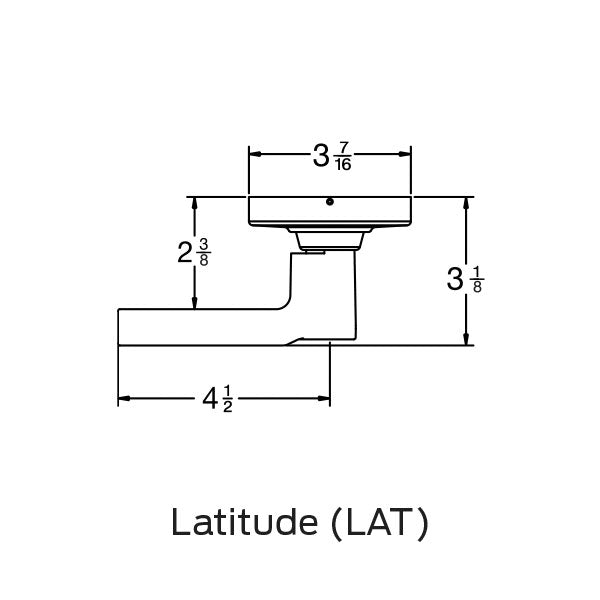

Lever Design

LAT (Latitude)
Lock Function

Entry (Entrance)
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage

Heavy Duty
Warranty

10 Years
