Product Overview

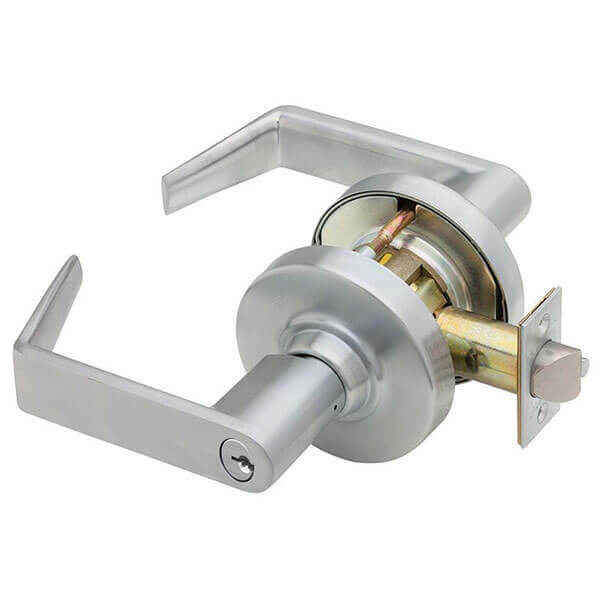

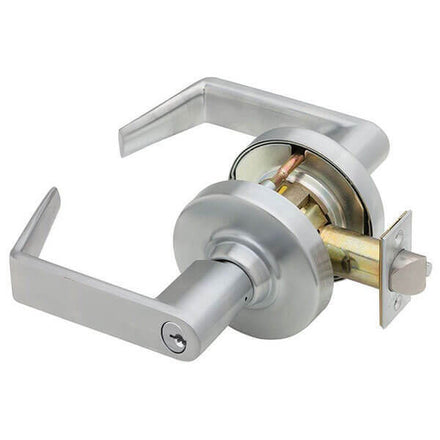

Schlage ND73PD Grade 1 Corridor Lock, Rhodes Lever, Standard Cylinder, Satin Chrome Finish
The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is regularly used in healthcare, education, government, office, retail, and other commercial applications.

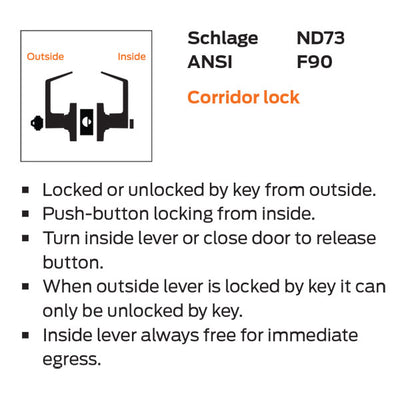

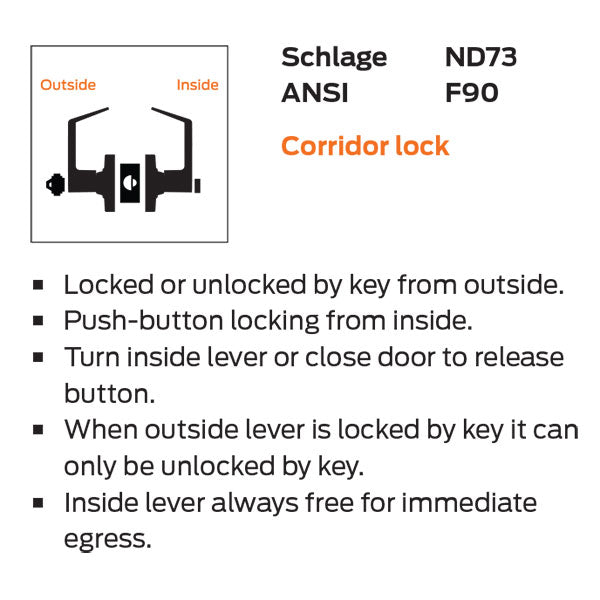

ND73 - Locked or unlocked by key from outside. Push-button locking from inside. Turn inside lever or close door to release button. When outside lever is locked by key it can only be unlocked by key. Inside lever always free for immediate egress.
- Significantly exceeds ANSI/BHMA Grade 1 requirements
- Withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks
- Not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles
- The strongest cylindrical lock Schlage has ever built
| ANSI/BHMA Standard |
Meets and Exceeds ANSI/BHMA A156.2 Series 4000 Grade 1 |
|---|---|
| Backset |
2-3/4" |
| Brand |
Schlage |
| Cylinder Format |
Conventional |
| Cylinder & Keys |
6-pin conventional keyed different with 2 keys |
| Door Thickness |
1-3/4" |
| Finish |
Satin Chrome |
| Finishes |
626 Satin Chrome |
| Fire Rating |
UL/cUL listed up to 3 Hours (A Label) - UL symbol on the latch front |
| Handing |
Non-Handed |
| Keyway |
Schlage C KeywaySchlage S123 Keyway |
| Latch |
1/2” throw deadlocking - 1-1/8" x 2-1/4" face |
| Lever Design |

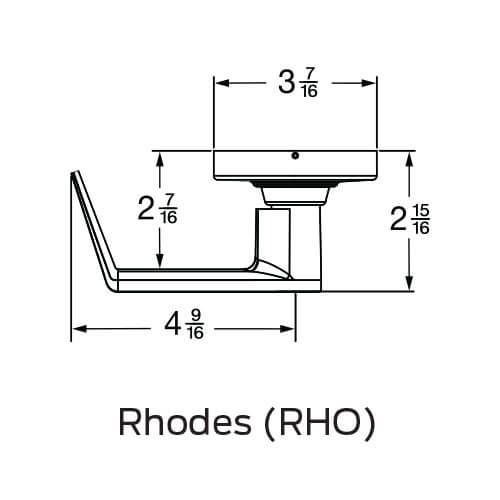

RHO (Rhodes) |
| Lock Function |
Corridor |
| Strike |
4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Usage |
Heavy Duty |
| Warranty |
10 Years |
