Schlage

Schlage ND78PD RHO (Rhodes) Classroom Security Lever Lock

$743.40
This item ships FREE! Usually Ships:  20-30 Business Days
  • Extra Heavy Duty, ANSI Grade 1 Certified
  • Lock/unlock outside by key on either side - inside always unlocked

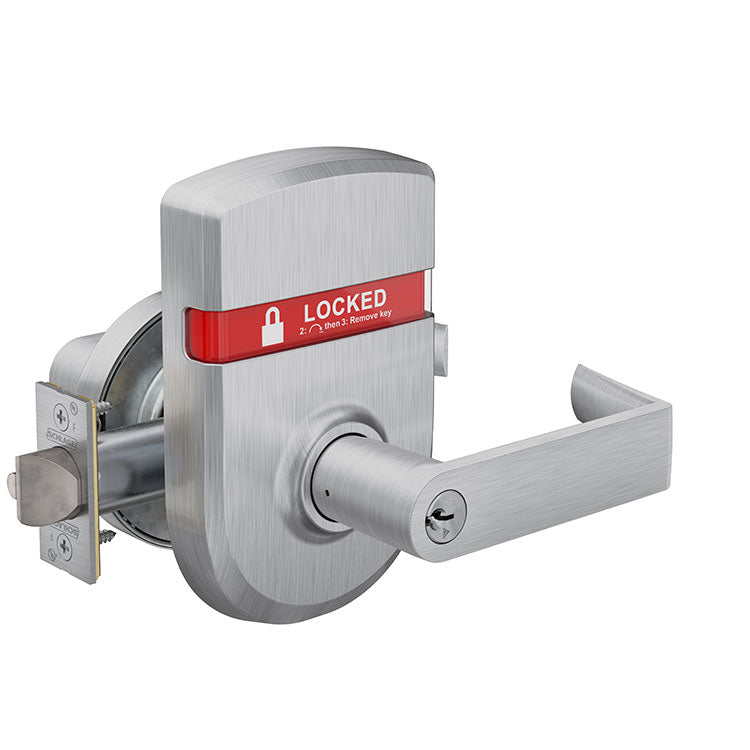

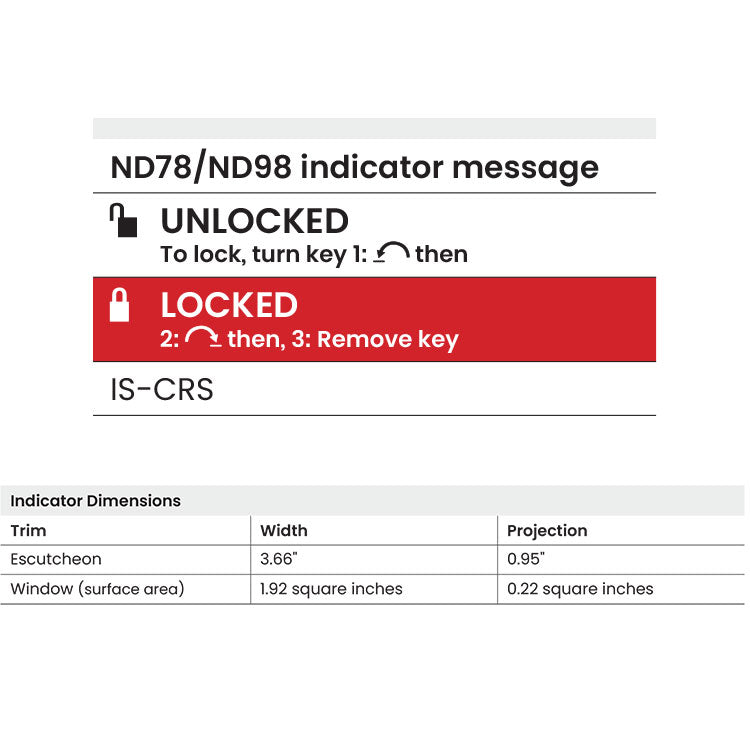

  • Includes inside indicator (LOCKED/UNLOCKED)

Available Options:

Clear

Product Overview

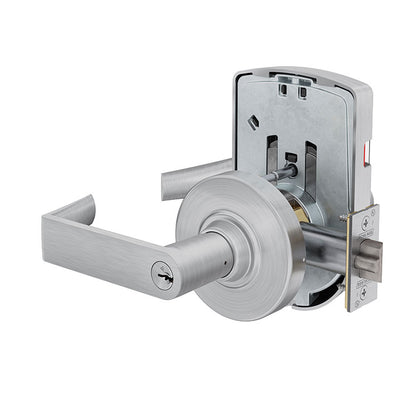

Schlage ND78PD RHO (Rhodes) Grade-1 Classroom Security Lever Lock (180 degree key rotation for lockdown) with IS-CRS (LOCKED/UNLOCKED) Inside Indicator Escutcheon Trim


The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is regularly used in healthcare, education, government, office, retail, and other commercial applications.

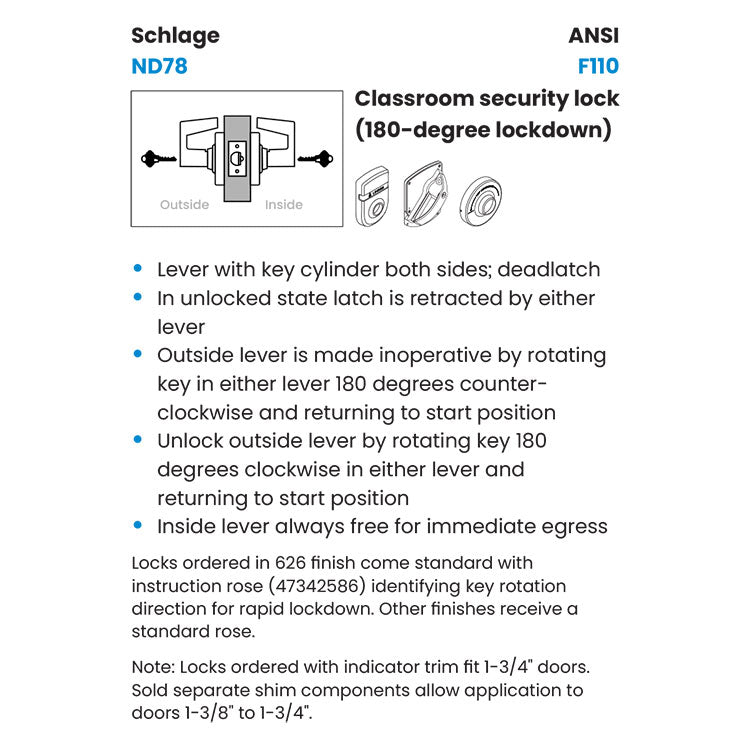

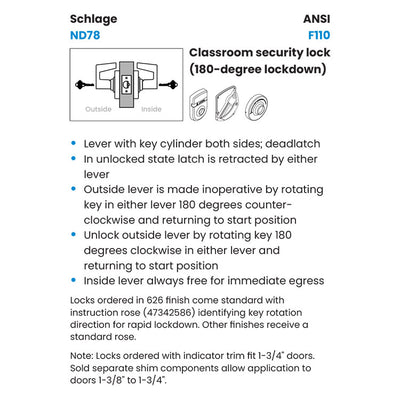

ANSI Function F110 - Lever with key cylinder both sides; deadlatch • In unlocked state latch is retracted by either lever • Outside lever is made inoperative by rotating key in either lever 180 degrees counterclockwise and returning to start position • Unlock outside lever by rotating key 180 degrees clockwise in either lever and returning to start position • Inside lever always free for immediate egress
  • Significantly exceeds ANSI/BHMA Grade 1 requirements
  • Withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks
  • Not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles
  • The strongest cylindrical lock Schlage has ever built
Brand

Schlage
Finishes

613 Oil Rubbed Bronze, 626 Satin Chrome, 626AM Satin Chrome Antimicrobial
Lock Function

Classroom Security
Keyway

Schlage C Keyway, Schlage S123 Keyway
Usage

Heavy Duty
ANSI/BHMA Standard

Meets and Exceeds ANSI/BHMA A156.2, Series 4000, Grade 1
ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code
Fire Rating

UL/cUL listed up to 3 Hours (A Label) - UL symbol on the latch front
Handing

Non-Handed
Cylinder & Keys

6-pin conventional, keyed different, with 2 keys
Backset

2-3/4"
Latch

1/2” throw, deadlocking - 1-1/8" x 2-1/4" face
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Lever Design

RHO (Rhodes)
Door Thickness

1-3/4"
Warranty

10 Years
Schlage_ND_Series_Standard_Installation_Instructions_111531_manf_after_1-31-2017 Schlage_ND_Series_Timing_Guide How to Install Von Duprin 98/99 Rim Exit Device
