Product Overview

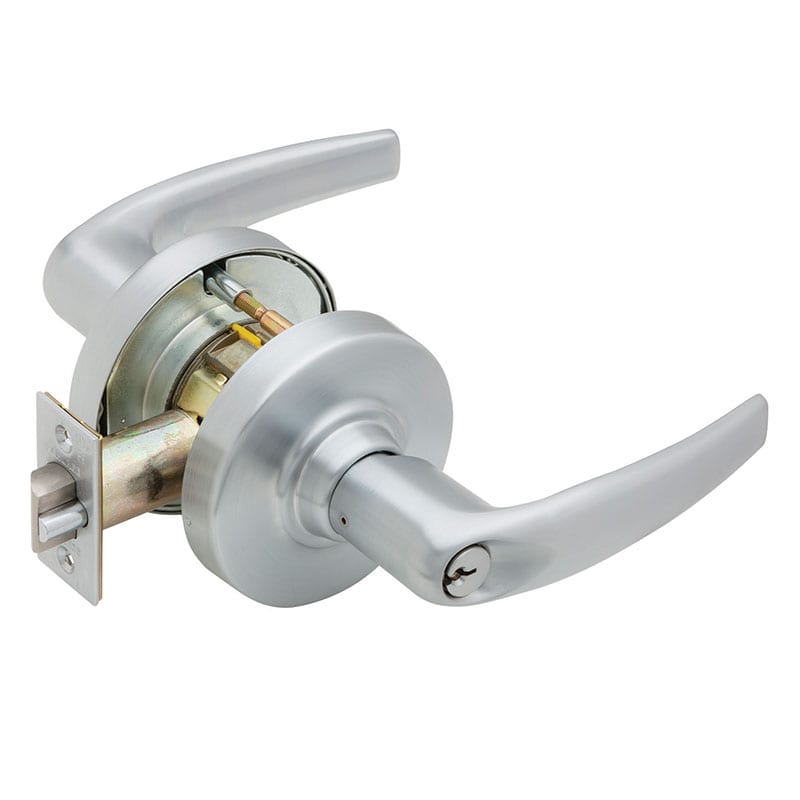

Schlage ND80PD ATH Grade-1 Cylindrical Lever Lock, Storeroom Function, Athens Lever
The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is regularly used in healthcare, education, government, office, retail, and other commercial applications.

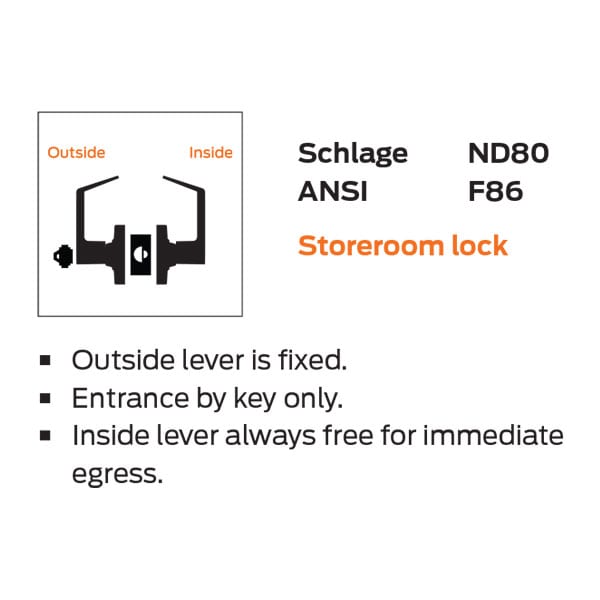

ANSI Function F86 - Outside lever is always locked; Entrance by key only - Inside lever is always unlocked

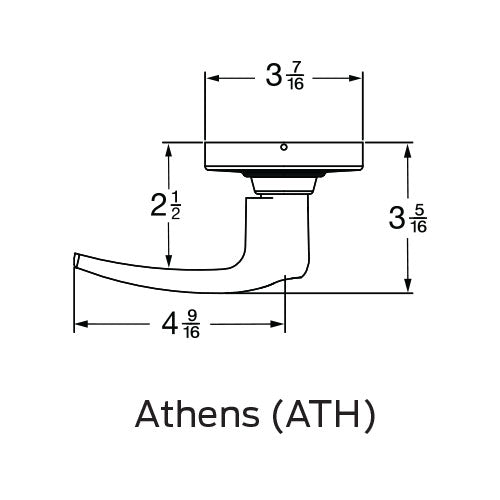

- ATH (Athens) Lever Design
- Significantly exceeds ANSI/BHMA Grade 1 requirements
- Withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks
- Not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles
- The strongest cylindrical lock Schlage has ever built
| ANSI/BHMA Standard |
Meets and Exceeds ANSI/BHMA A156.2 Series 4000 Grade 1 |
|---|---|
| Backset |
2-3/4" |
| Brand |
Schlage |
| Cylinder Format |
Conventional |
| Cylinder & Keys |
6-pin conventional keyed different with 2 keys |
| Door Thickness |
1-3/4" |
| Finish |
Satin ChromeSatin Chrome AM (Antimicrobial)Satin BronzeBlackDark BronzeSatin NickelBright ChromeBright BrassAged BronzeSatin Brass |
| Finishes |
643e Aged Bronze612 Satin Bronze605 Bright Brass619 Satin Nickel625 Bright Chrome622 Matte Black626 Satin Chrome626AM Satin Chrome Antimicrobial613 Oil Rubbed Bronze606 Satin Brass |
| Fire Rating |
UL/cUL listed up to 3 Hours (A Label) - UL symbol on the latch front |
| Handing |
Non-Handed |
| Keyway |
Schlage C KeywaySchlage S123 Keyway |
| Latch |
1/2” throw deadlocking - 1-1/8" x 2-1/4" face |
| Lever Design |
ATH (Athens) |
| Lock Function |
Storeroom |
| Strike |
4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Usage |
Heavy Duty |
| Warranty |
10 Years |
