Product Overview

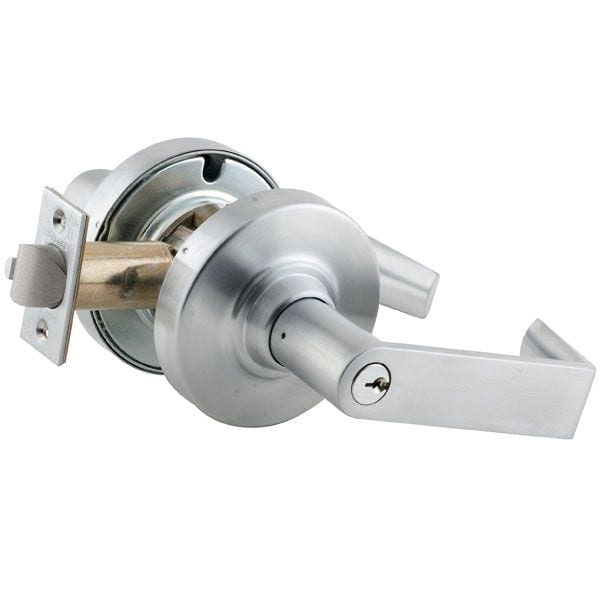

Schlage ND96PD RHO Grade-1 Cylindrical Lever Lock, Storeroom Function, Rhodes Vandlgard Lever
The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is regularly used in healthcare, education, government, office, retail, and other commercial applications.

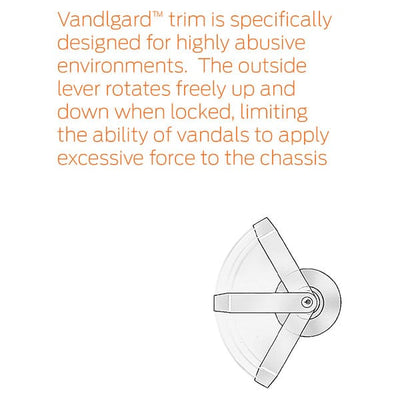

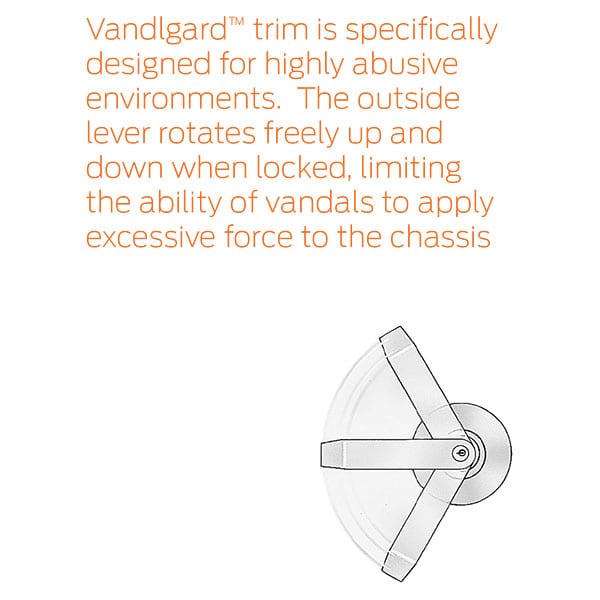

Vandlgard™ trim is specifically designed for highly abusive environments. The outside lever rotates freely up and down when locked, limiting the ability of vandals to apply excessive force to the chassis.

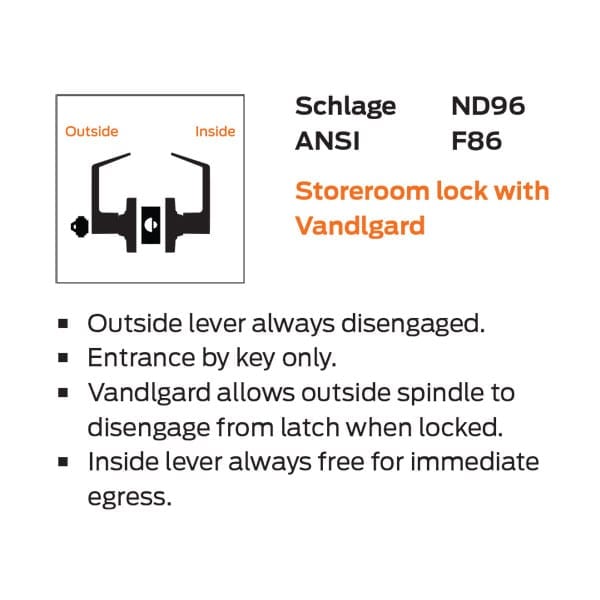

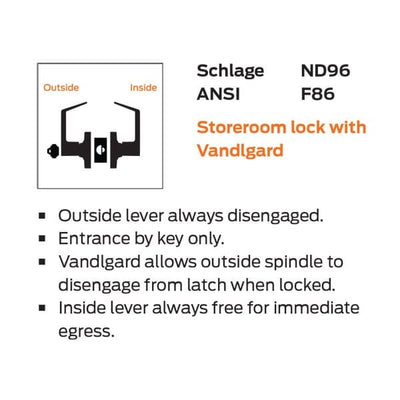

ANSI Function F86 - Outside lever always disengaged. - Entrance by key only. - Vandlgard allows outside spindle to disengage from latch when locked. - Inside lever always free for immediate egress.
- Significantly exceeds ANSI/BHMA Grade 1 requirements
- Withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks
- Not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles
- The strongest cylindrical lock Schlage has ever built
| ANSI/BHMA Standard |
Meets and Exceeds ANSI/BHMA A156.2 Series 4000 Grade 1 |
|---|---|
| Backset |
2-3/4" |
| Brand |
Schlage |
| Clutch Lever |
Yes |
| Cylinder Format |
Conventional |
| Cylinder & Keys |
6-pin conventional keyed different with 2 keys |
| Door Thickness |
1-3/4" |
| Finish |
Satin ChromeDark BronzeBlackSatin Chrome AM (Antimicrobial) |
| Finishes |
613 Oil Rubbed Bronze626AM Satin Chrome Antimicrobial622 Matte Black626 Satin Chrome |
| Fire Rating |
UL/cUL listed up to 3 Hours (A Label) - UL symbol on the latch front |
| Handing |
Non-Handed |
| Keyway |
Schlage S123 KeywaySchlage C Keyway |
| Latch |
1/2” throw deadlocking - 1-1/8" x 2-1/4" face |
| Lever Design |

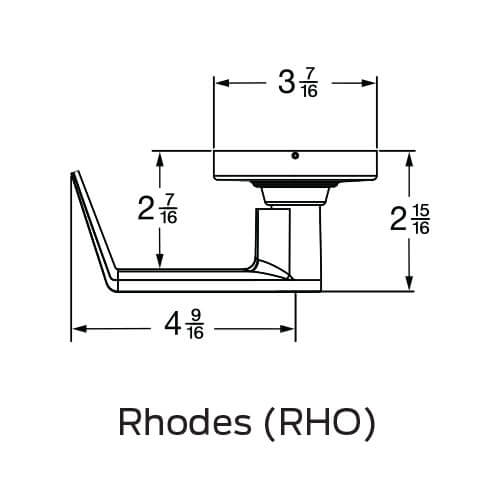

RHO (Rhodes) |
| Lock Function |
Storeroom |
| Strike |
4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Usage |
Heavy Duty |
| Warranty |
10 Years |
