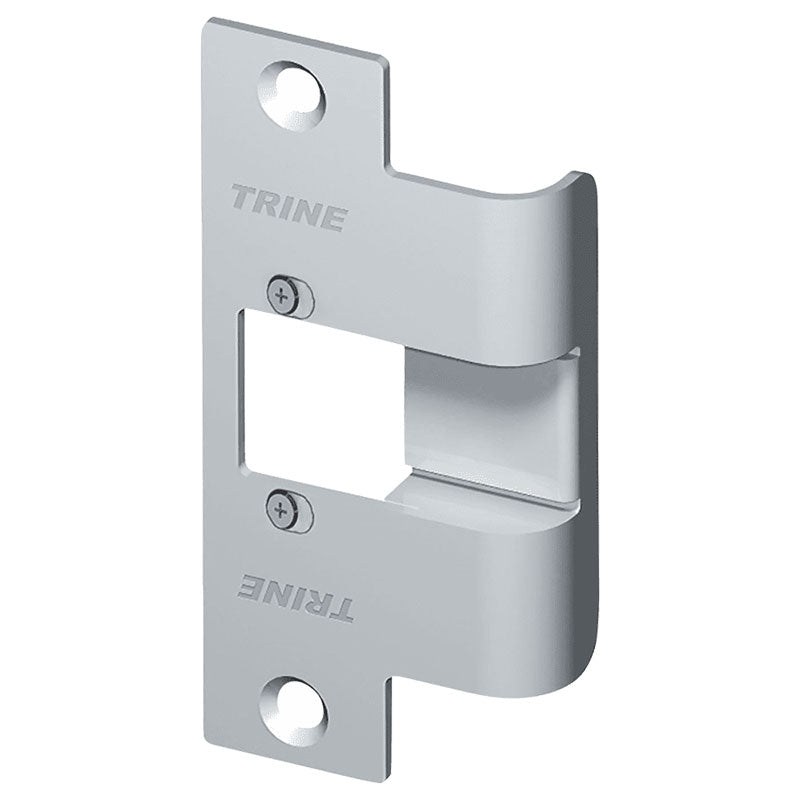

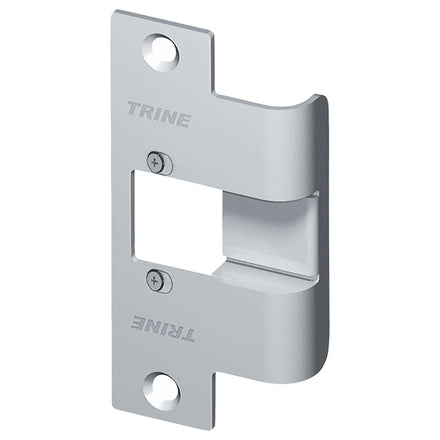

478X-375 - 3000 Series Electric Strike Faceplate, 4-7/8" x 1-1/4", 3/8" Extended Lip

$42.53
Usually Ships:  1-2 Business Days
  • Faceplate only, for use with 3000 Series strike body
  • For use with cylindrical locksets up to 5/8″ throw
  • Extended ramp to accommodate additional face of Timely frames (or similar)

Available Options:

Clear

Product Overview

Trine 478X-375 - 3000 Series Electric Strike Faceplate, 4-7/8" x 1-1/4", 3/8" Extended Lip, For Timely Frames (or similar) Application


Frame features an extended ramp to accomodate additional face of Timely frames (or similar). Ramp has a 3/8”.extension. For new or replacement installations. Use with cylindrical locksets and deadlatches having up to 5/8” throw, based on 1/8” door gap. Provides a finished look for wood frames with trim.
  • Match with any 3000 Mechanism: 3012, 3024, 30LC, 30RS
  • ANSI A115.1 slight frame modification

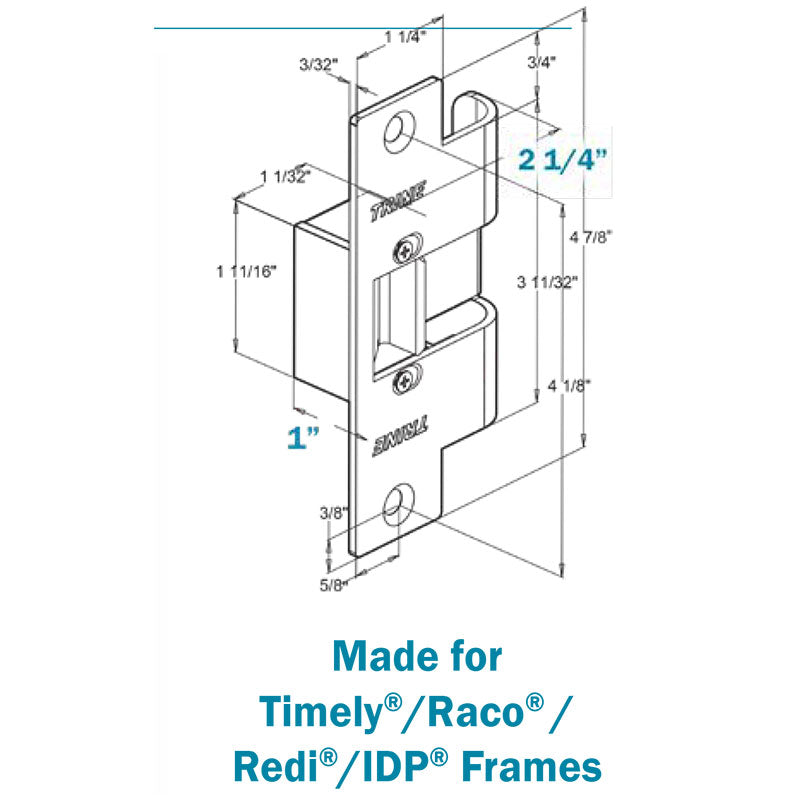

  • Face Plate 4-7/8" x 1-1/4" • Mortise Backset 1" • Cavity Depth 1/2" • Cavity Width 5/8" • Cavity Height 1 1/8"
  • No ugly black ramps!
  • Extended ramp (.375”) accommodates snap-on additional frame face of Timely® & Redi® Frames
  • Eliminates traditional 4 7/8” ANSI strike cutting and black ramp extensions
  • 1/8" Horizontal Adjustments help prevent door pre-load.
  • 60% less cutting of the frame.
  • Modular System: Always be prepared, go Modular. Use ANY of the 9 faceplates in the 3000 series with any 3012, 3024, 30LC or 30RS mechanism
Brand

Trine
Finishes

Dark Bronze Powder Coat, US3 (605) Bright Brass, US32D (630) Satin Stainless Steel
Faceplate

4-7/8" x 1-1/4"
Lock Type Compatibility

Cylindrical Lock, Deadlatch
Part Type

Electric Strike Faceplate
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
