Trudoor CL2-86 Storeroom Lever Lock

$60.80
Usually Ships:  Same Day
  • Meets & exceeds ANSI Grade 2 standards
  • Outside always locked, entry by key only
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

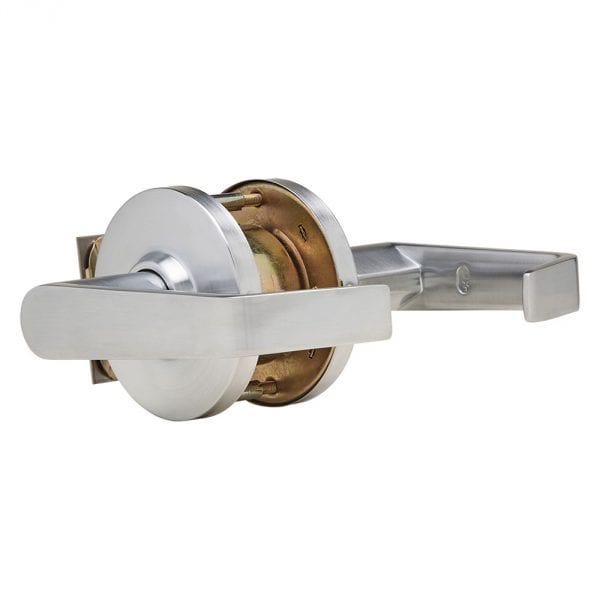

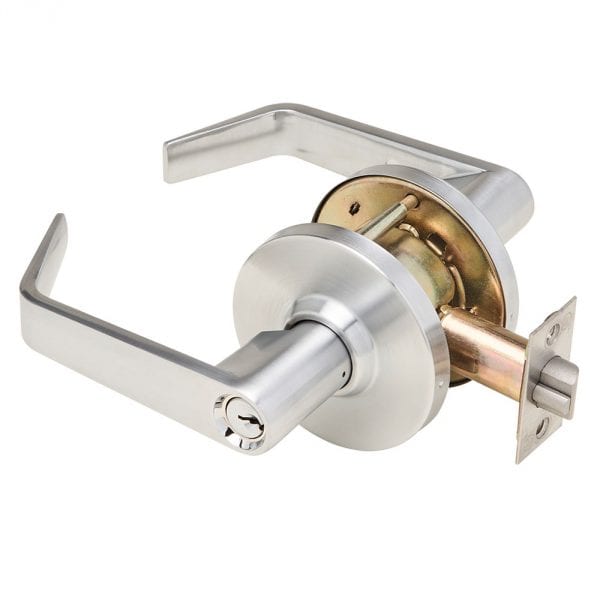

Trudoor CL2-86, CL2 Series Grade-2 Cylindrical Lever Lock, Storeroom Function

Trudoor® CL2 Series cylindrical locks are an ideal choice for a wide variety of medium-duty commercial applications where consistent reliability and easy installation are required at an economical price. CL2 locks are for use on exterior or interior doors in office buildings, retail stores, medical & assisted living facilities, government facilities, hospitality and other commercial or industrial buildings.

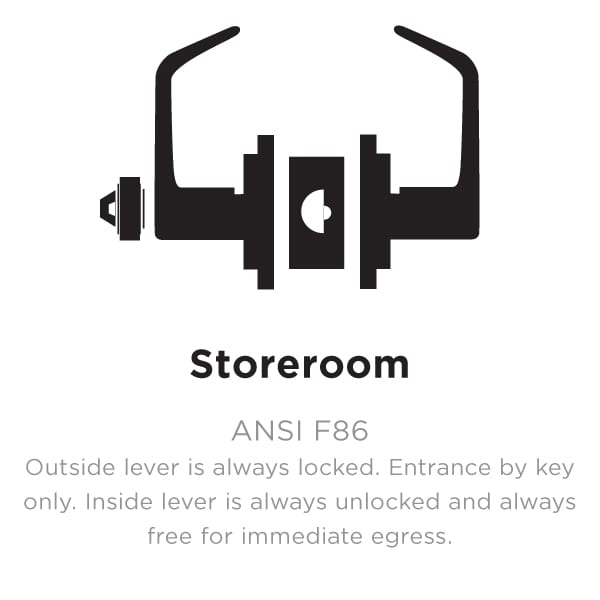

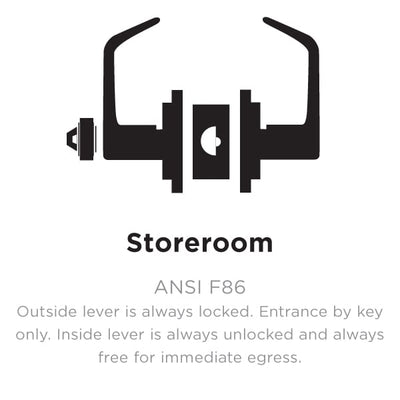

Storeroom Function, ANSI F86 - Outside lever is always locked. Entrance by key only. Inside lever is always unlocked and always free for immediate egress.

  • Quality construction and reliability at an affordable price
  • Anti-sag mechanism with independent lever return springs to prevent sag
  • Non-handed and reversible for easy installation
  • Optional thru-bolts for added strength
  • 626 Satin Chrome or 622 Matte Black finish
  • 2-3/4" backset latch and ASA strike standard (2-3/8" backset, t-strike, and full lip strike available in lock parts and accessories)

Code Compliance

  • Meets & Exceeds ANSI – A156.2, Series 4000, Grade 2 Standards
  • UL Listed for “A” Label 3 Hour Fire-Rated Doors
  • Meets ADA and ANSI A117.1 Accessibility Codes
  • Meets California code for 1/2" lever return to door face

Cross Reference

The CL2-86 can be specified as a substitute and/or replacement for: Arrow MLX82-SB / RL12, Cal-Royal SL05 / XP05, Corbin Russwin CL3857, Design Hardware J-86-F, Dorma C280 / CL780, Falcon B581 / W581, Hager 3580, Marks 175F, PDQ SD115 / GP115, Sargent 65G04 / 7G04, Schlage AL80PD / ALX80P,  Stanley QCL270, Yale 5305LN / 4605LN

ANSI Grade

Meets & exceeds ANSI – A156.2 Series 4000 Grade 2 standards

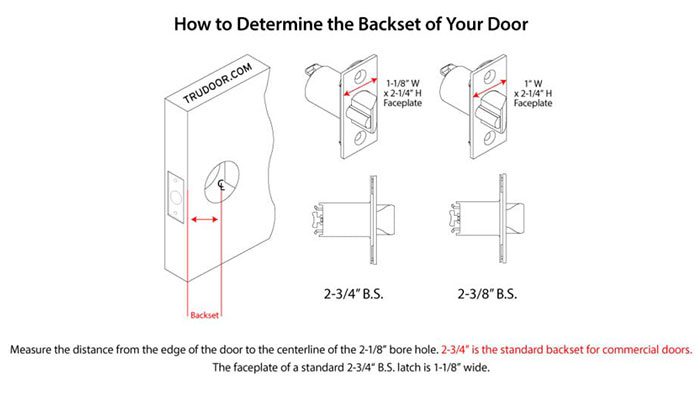

Backset

2-3/8"2-3/4"
Brand

Trudoor
Cylinder Format

Conventional
Cylinder & Keys

6-pin conventional keyed different with 2 keys
Door Applications

Interior or Exterior Hollow Metal Doors and Wood Doors
Door Thickness

1-3/8" to 1-3/4"
Fasteners

Combination screws for wood or metal doors & frames
Finish

BlackSatin Chrome
Finishes

622 Matte BlackUS26D (626) Satin Chrome
Fire Rating

UL Listed for “A” Label 3 Hour Fire Doors
Handing

Non Handed – Completely Reversible
Keyway

Schlage C Keyway
Latch

1/2" throw deadlatch – 1" x 2-1/4" face
Lock Function

Storeroom
Strike

4-7/8" ASA Strike2-3/4" T-Strike
Usage

Medium Duty
Warranty

Limited Lifetime Warranty
