Trudoor DL1 Heavy-Duty Grade-1 Single Cylinder Deadbolt Lock

$61.60
Usually Ships:  Same Day
  • Meets and exceeds ANSI A156.2 Grade 1 standards
  • Single cylinder x inside turn
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

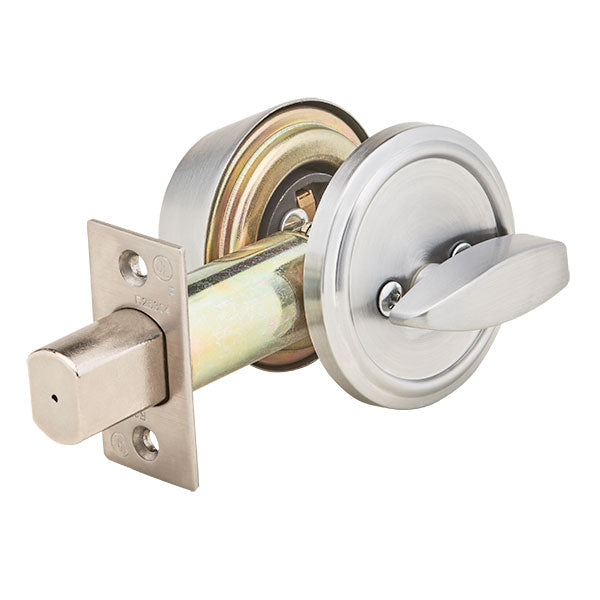

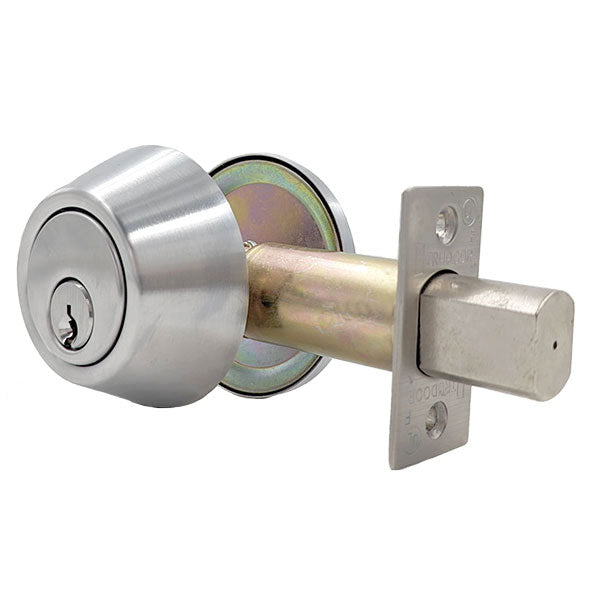

Trudoor DL1 Heavy-Duty Grade-1 Single Cylinder Deadbolt, 2-3/4" Backset, Schlage C Keyway

DL1 Series deadbolt locks are an ideal choice for heavy-duty commercial applications when added security is needed.

  • ANSI E21511 - Deadbolt thrown or retracted by key from outside or by inside thumbturn. Bolt automatically deadlocks when thrown.
  • Solid Brass latch bolt with 1" throw & anti-saw hardened steel pin insert
  • Meets & exceeds ANSI A156.2, Grade 1 standards
  • For use with interior or exterior metal and wood doors
  • ADA compliant thumb turn
  • 3 hour fire-rated (UL Listed)

Cross Reference

The DL1 can be specified as a value engineered substitute and/or replacement for: Cal-Royal CRB800, Design Hardware D1-S, Falcon D141, Hager 3115, Sargent 485, Schlage B660P, Yale D112

ANSI Function

E21511
ANSI Grade

Meets ANSI - A156.2 Grade 1 Standards
Backset

2-3/4"
Bolt

1" throw bolt 1-1/8" x 2-1/4" square corner face plate
Brand

Trudoor
Cylinder Format

Conventional
Cylinder & Keys

6-pin conventional keyed different with 2 keys
Deadbolt Type

Single Cylinder
Door Thickness

1-3/4"
Finish

Satin Chrome
Finishes

US26D (626) Satin Chrome
Fire Rating

UL Listed for “A” Label 3 Hour Fire Doors
Keyway

Schlage C Keyway
Strike

1-1/8” x 2-3/4“ square corner
Usage

Heavy Duty
