Product Overview

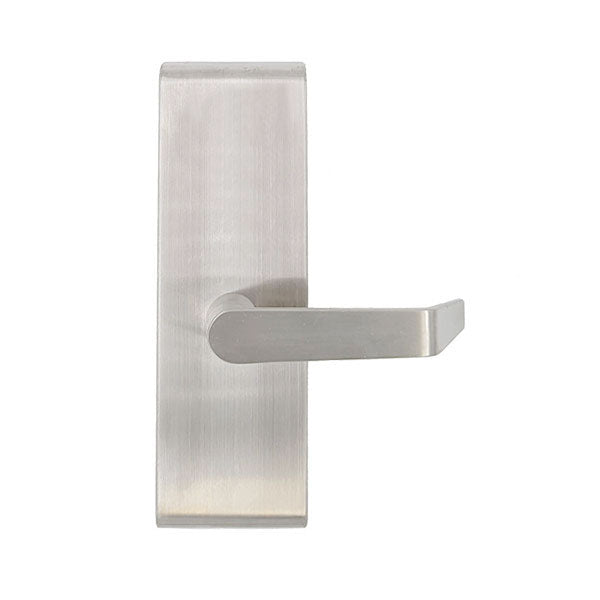

Trudoor TDE-14 Grade-1 Escutcheon Lever Trim, Passage (14) Function, Satin Stainless Steel
- For use with Trudoor TDE 1000 and 2000 Series exit devices
- ANSI function: 14 (lever always operable)
- Steel, zinc dichromated chassis, stainless steel exterior housing
- Thru-bolts to exit device for added strength
- 5″ solid stainless steel lever, 2-7/8″ total projection
- Escutcheon: 3″ wide x 9″ height x 3/4″ projection, covers 161 door prep
- 1-3/4″ door thickness standard
- Includes thru bolt posts and 1/4″-20 machine screws for installation
| ANSI Grade |
Meets ANSI/BHMA A156.3 Grade 1 standards |
|---|---|
| Brand |
Trudoor |
| Finish |
Stainless Steel |
| Finishes |
US32D (630) Satin Stainless Steel |
| Function |
Passage |
| Handing |
Non-Handed Field selected at the time of installation |
| Usage |
Heavy Duty |
| Warranty |
Limited Lifetime Warranty |
Trudoor TDE-14 Blank Escutcheon Passage Lever Trim for TDE 1000/2000 Series Exit Devices
