Von Duprin 2227EO-F Fire-Rated Surface Vertical Rod Exit Device

$827.37

This item ships FREE! Usually Ships: 1-2 Business Days

ANSI/BHMA Grade-1 Certified, Made in USA
UL listed fire door hardware, 3 hour-rated
Exit only model (Trim sold separately)

Available Options:

Clear

Finish
Length

Quantity:

Added to Cart

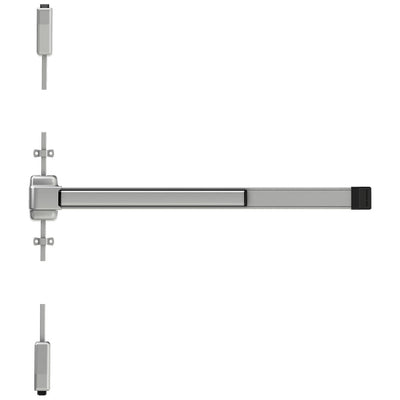

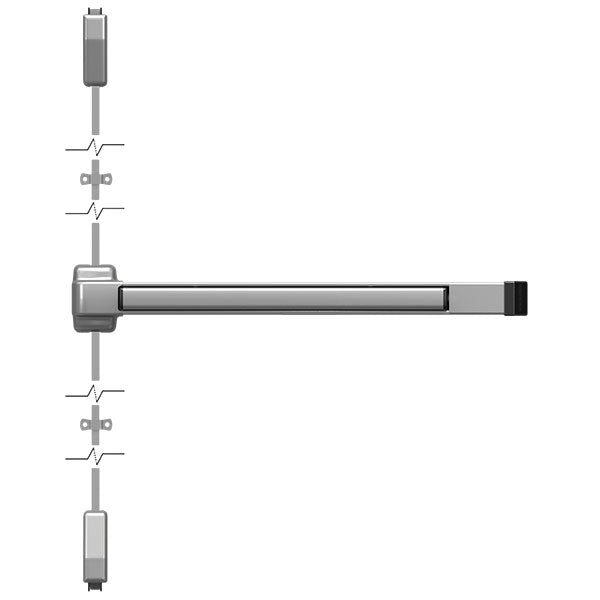

Von Duprin 2227EO-F Grade-1 Surface Vertical Rod Panic Exit Device, Fire-Rated, Exit Only, 7ft Height

The 22 Series wide stile device is a cost-effective solution for medium to low traffic areas where proven reliability is needed. The non-handed design of the 22 Series makes it more adaptable in the field. The 22 Series is designed and manufactured in accordance to ISO 9001 Quality Management System. It also is UL listed for Panic Hardware or Fire Hardware.

Exit Only (Von Duprin 22 Series Exit Device Trim Sold Separately)
Standard Sizes: 3' x 7', 4' x 7' (extension rods available for doors up to 10')

ANSI/BHMA Standard	ANSI/BHMA A156.3-2008 Grade 1 certified
Brand	Von Duprin
Buy American Act Compliance	Meets Buy Amercian Act - Made in USA
Device Type	Surface Rod Device
Dogging Feature	None
Door Height	7'0" (Standard)
Finish	BlackChrome Powder CoatedAluminumDark Bronze
Finishes	622 Matte Black526 Powder Coated Chrome695 Dark Bronze689 Aluminum
Fire Rating	UL listed A or B label Fire-Rated (3 Hours)
Hand	Non-handed
Latchbolt	Deadlatching 3/4" throw
Length	3'0" (2'4" to 3'0" Doors)4'0" (3'4" to 4'0" Doors)
Projections	3-3/4" Maximum 3" Depressed
Stile Type	Wide (Standard)

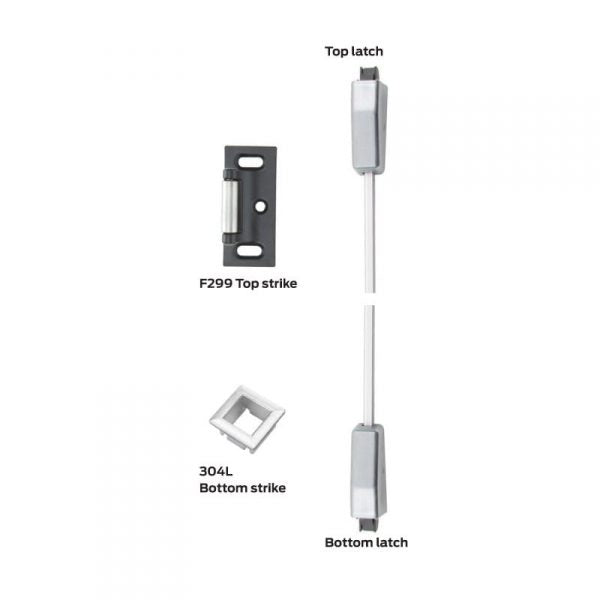

Strikes	299 Top Strike 304L Bottom Strike - 248L4 Bottom strike for use with flat threshold
Usage	Medium Duty
Vertical Rods	Rods Accommodate Doors up to 7'0" - Cut to Specification in Field (extension rod available for doors up to 10'0")
