Product Overview

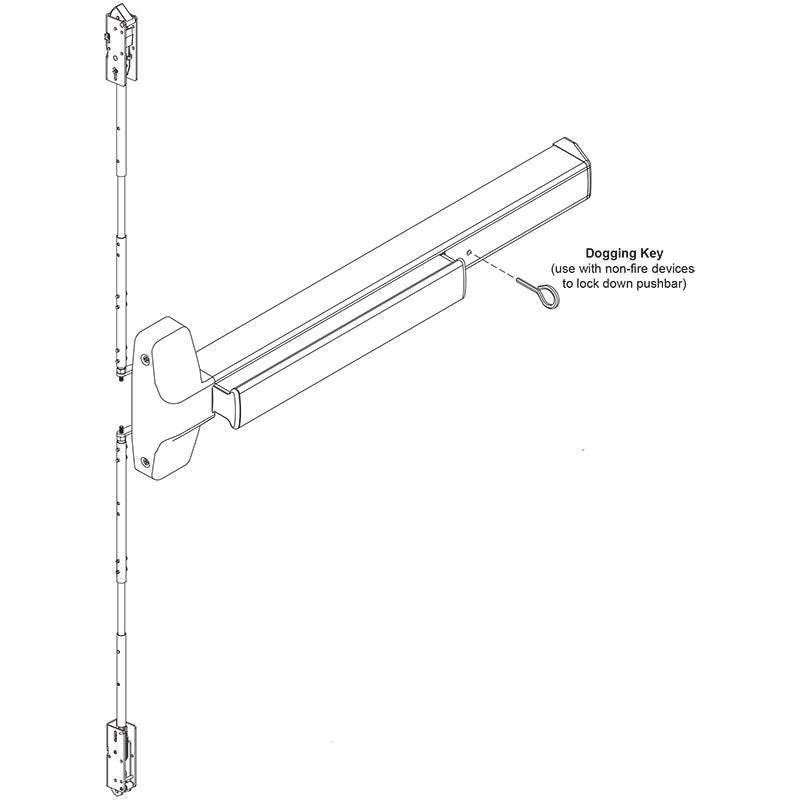

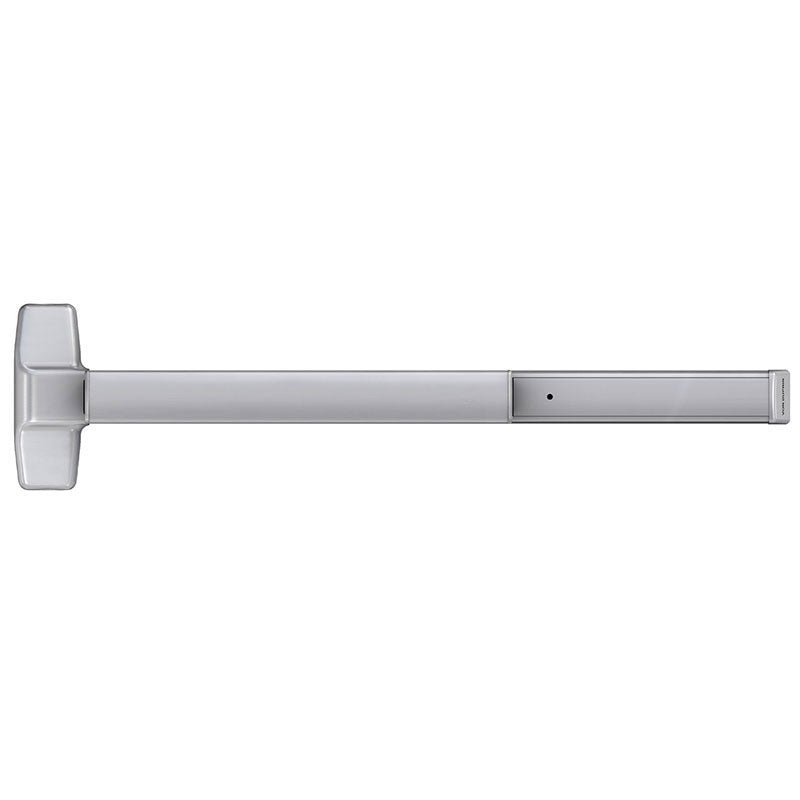

Von Duprin 7847EO Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, Panic Device, 80″ to 100″ Door Height, Exit Only, Less Trim, Hex Key Dogging
Enjoy the quality and trust you expect from Von Duprin at a mid-price option. Von Duprin 70 Series exit devices provide reliable performance and peace of mind for applications like warehouse, industrial, office, multifamily, retail, and commercial real estate spaces.
7847 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. These are certified to ANSI/BHMAA156.3 2014, Grade 1.
- EO = Exit Only, ANSI Function 01 (78 Series Outside Trim Sold Separately)
- Standard Sizes: 3′ x 7′ (2' 4" to 3' door width), 4′ x 7′ (2' 10" to 4' door width)
- Top rod adjustable from 6'8" to 8'4"
- ANSI/BHMA Certified, Grade-1
- UL listed for panic exit hardware
| Brand |
Von Duprin |
|---|---|
| Finishes |
313 Duranodic Dark Bronze, 643e Aged Bronze, US10 (612) Satin Bronze, US15 (619) Satin Nickel, US19 (315) Flat Black, US26 (625) Bright Chrome, US26D (626) Satin Chrome, US28 (628) Anodized Aluminum, US3 (605) Bright Brass, US32D (630) Satin Stainless Steel, US4 (606) Satin Brass |
| Device Type |
Concealed Rod Device |
| ANSI/BHMA Standard |
ANSI/BHMA A156.3 2014, Grade 1 Certified |
| Usage |
Heavy Duty |
| Fire Rating |
Non-Fire-Rated |
| Vertical Rods |
Round 2-piece adjustable rods – Top rod adjustable from 6'8" to 8'4". Bottom rod adjustable 35 5/8" to 49 5/8". Extension rod kits available for doors over 8'4" |
| Hand |
Field Reversible |
| Latchbolt |
Deadlocking anti-friction top & bottom bolt, 5/8" throw |

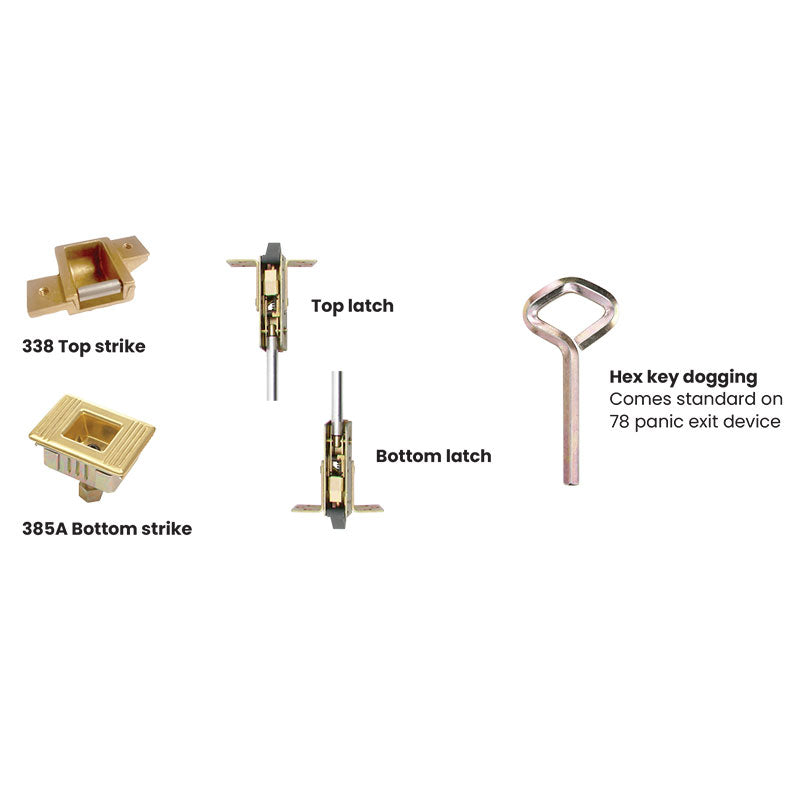

| Strikes |
385A |
| Dogging Feature |
Half turn hex dogging standard |
| Stile Type |
Wide (Standard) |
| Center Case |
7-7/8" x 2-3/4" x 2-3/8" |
| Projections |
Pushbar Neutral – 3-13/16" - Pushbar Depressed – 3-1/16" |
| Fasteners |
Includes screws for metal and wood doors |
| Door Applications |
1-3/4" Hollow Metal Doors |
| Warranty |
3 Year |
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
