Product Overview
The 88 Series are exit device crossbars with a classic design. The 88 Series is a standard device for applications where a crossbar is preferred and is ANSI/BHMA A156.3, 2008 Grade 1 certified.
- US26D Satin Chrome Finish
- EO = Exit Only (Trim Sold Separately)
- Crossbar length: 42" field sizeable
- Device centerline: 39-13/16"
- Crossbar centerline to finished floor: 36-13/16" at center
- Lock stile case: 8-1/4" X 2-3/4" x 15/16"
- Hinge stile case: 6" X 1-3/4" x 15/16"
- Crossbar tubing: 1" (25 mm) outside diameter
- Projection: Neutral – 4-3/4" - Depressed – 4"
- Fasteners: All necessary mounting fasteners are included
- Cylinder Plate for NLOP Function - included with EO device
| Brand |
Von Duprin |
|---|---|
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
| Dogging Feature |
Half turn hex dogging standard |
| Finish |
Satin Chrome |
| Finishes |
US26D (626) Satin Chrome |
| Handing |
Completely Reversible |
| Latchbolt |
3/4" throw |
| Length |
42" |
| Stile Type |
Wide (Standard) |
| Strike |
299 roller strike standard |
| Usage |
Heavy Duty |

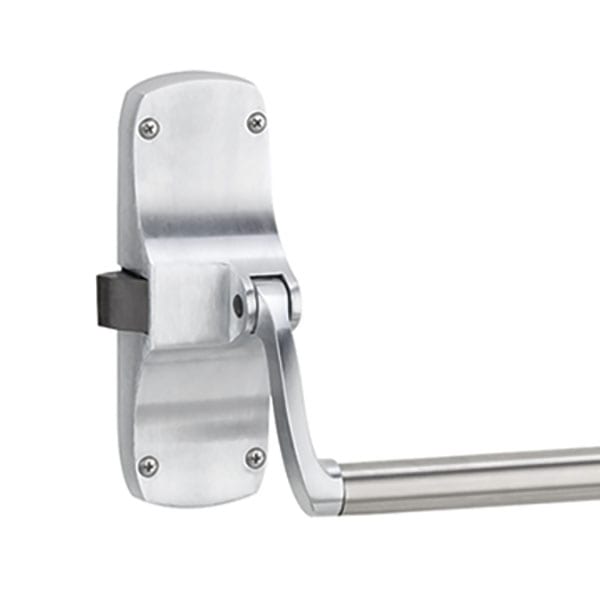

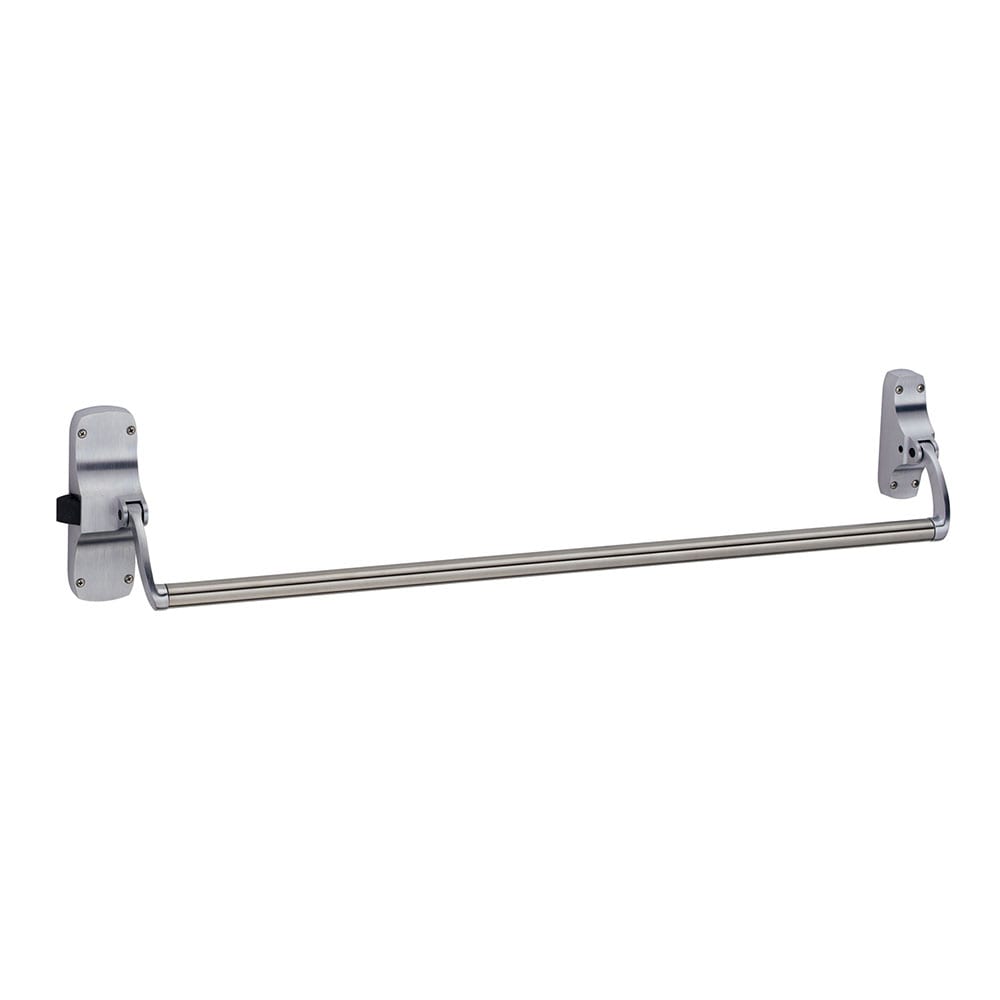

Von Duprin 88EO Rim Panic Exit Device
