Product Overview

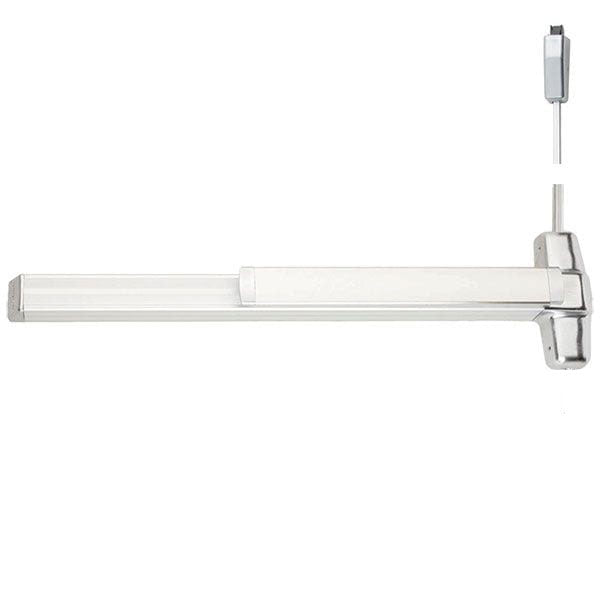

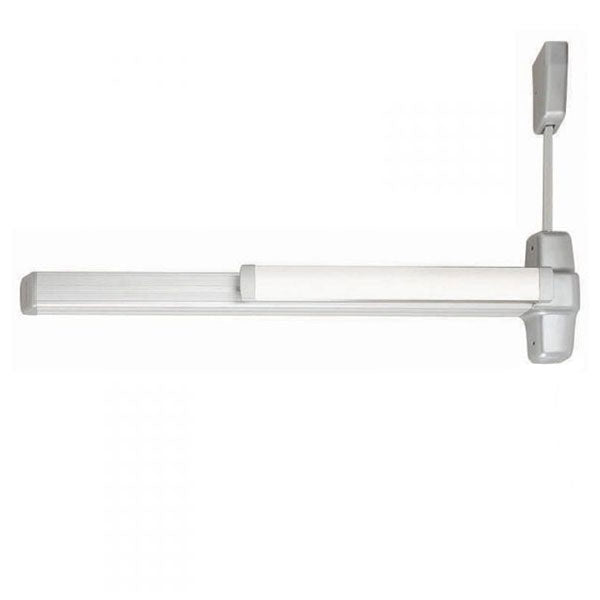

The 99 Series has been certified to the highest industry standards and are used in schools, hospitals, and government buildings. The 99 Series is a high-performance heavy-duty push pad exit device. Von Duprin customers are supported by industry-leading expertise. Allegion’s representatives average more than 15 years of experience, so you’re assured to receive knowledgeable advice on fire and life safety codes, installation resources, and more.
- 9927-F-LBR - UL Listed
- EO = Exit Only, ANSI Function 01 (98/99 Series Outside Trim Sold Separately)
- Standard Size: 3' x 7' (extension rod for 8' doors available in Exit Device Parts and Accessories)
- Designed for high use and abuse in institutional applications

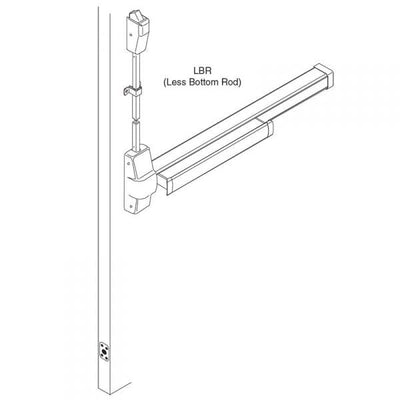

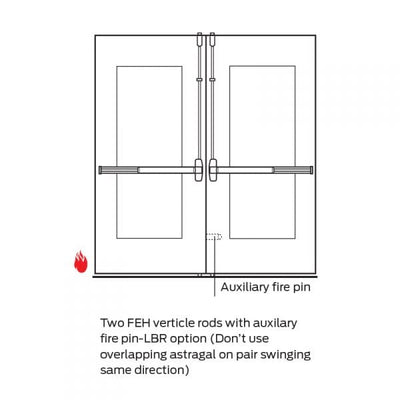

LBR (Less Bottom Rod) devices use a spring-loaded auxiliary latch bolt installed in the lower door edge. When exposed to heat the auxiliary latch bolt releases, keeping the doors in alignment and closed during a fire. UL listed 3 hours on hollow metal doors double egress, 90-minute swinging same direction, and 20-minute wood doors (consult wood door manufacturer). Fits door stiles as narrow as 3-5/8.
Single devices must be used in conjunction with an approved automatic or constant latching flush bolt.
| ANSI Grade |
Certified ANSI A156.3-2001 Grade 1 standards |
|---|---|
| Brand |
Von Duprin |
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
| Center Case |
8" x 2-3/4" x 2-3/8" |
| Device Type |
LBR (Less Bottom Rod) Surface Rod Device |
| Dogging Feature |
None |
| Door Applications |
1-3/4″ Thick Fire-Rated Doors |
| Fasteners |
Includes screws for metal and wood doors |
| Finish |
Anodized AluminumSatin ChromeDark Bronze |
| Finishes |
313 Duranodic Dark BronzeUS26D (626) Satin ChromeUS28 (628) Anodized Aluminum |
| Fire Rating |
UL listed 3 hours on hollow metal doors double egress 90 minute swinging same direction and 20 minutes wood doors (consult wood door manufacturer) |
| Hand |
Field Reversible |
| Latchbolt |
Deadlocking anti-friction top bolt 5/8" throw |
| Length |
3'0" (2'4" to 3'0" Doors)4'0" (3'1" to 4'0" Doors) |
| Projections |
Pushbar Neutral – 3-13/16" - Pushbar Depressed – 3-1/16" |
| Stile Type |
Wide (Standard) |
| Strike |

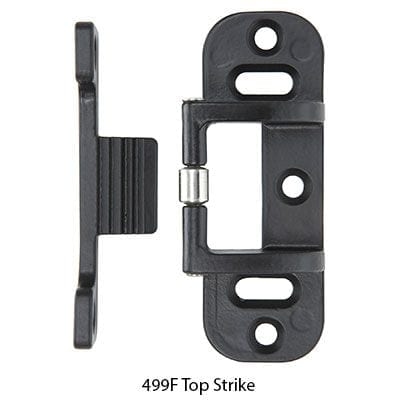

499F Top Strike |
| Usage |
Heavy Duty |
| Vertical Rods |
Rods Accommodate Doors up to 7'0" - Cut to Specification in Field (extension rod available for 8'0" doors) |
