Product Overview

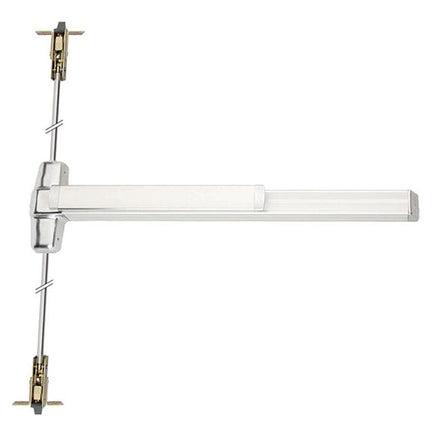

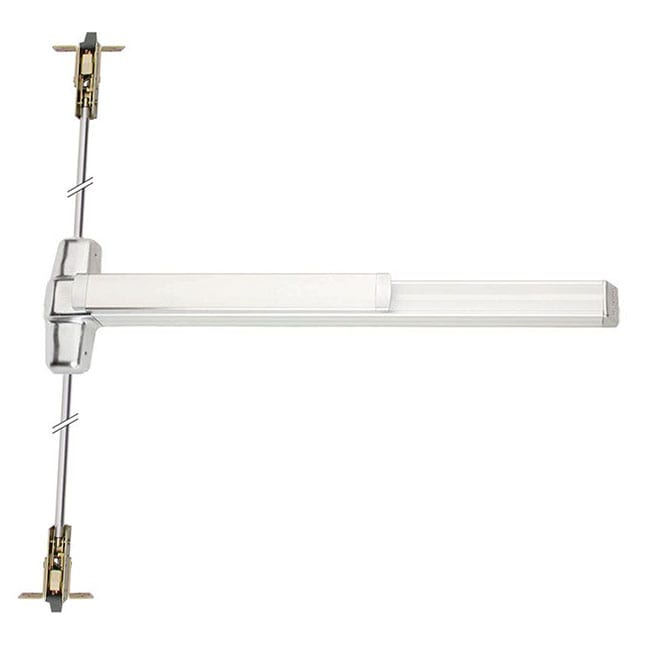

Von Duprin 9947WDCEO/9947WDCEO-F Grade 1 Concealed Vertical Rod Exit Bar for Wood Doors, Exit Only
The 99 Series has been certified to the highest industry standards and are used in schools, hospitals, and government buildings. 9947WDC Concealed vertical rod device for use on single or double wood doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2014 Grade 1.
- Scalp plate – Device is furnished standard with an 8" long scalp plate for easy access to rods.
- 9947WDCEO-F Model: UL Listed Fire Hardware (Fire-Rated)
- EO = Exit Only, ANSI Function 01 (98/99 Series Outside Trim Sold Separately)
| ANSI Grade |
Certified ANSI A156.3-2001 Grade 1 standards |
|---|---|
| Brand |
Von Duprin |
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
| Center Case |
8" x 2-3/4" x 2-3/8" |
| Device Type |
Concealed Rod Device |
| Dogging Feature |
Hex key dogging standard on non-fired-rated devices |
| Door Applications |
1-3/4" to 2-1/4" Thick Wood Doors |
| Fasteners |
Includes screw pack for 1-3/4" to 2-1/4" thick wood doors. |
| Finish |
Satin Chrome |
| Finishes |
US26D (626) Satin Chrome |
| Fire-Rated |
Fire-Rated (No Dogging)Non-Fire-Rated (w/ Dogging Feature) |
| Fire Rating |
Fire-Rated |
| Hand |
Non-handed |
| Latchbolt |
Deadlocking top bolt 5/8" throw |
| Length |
3'0" (2'4" to 3'0" Doors)4'0" (3'1" to 4'0" Doors) |
| Projections |
Pushbar Neutral – 3-13/16" - Pushbar Depressed – 3-1/16" |
| Stile Type |
Wide (Standard) |
| Strike |

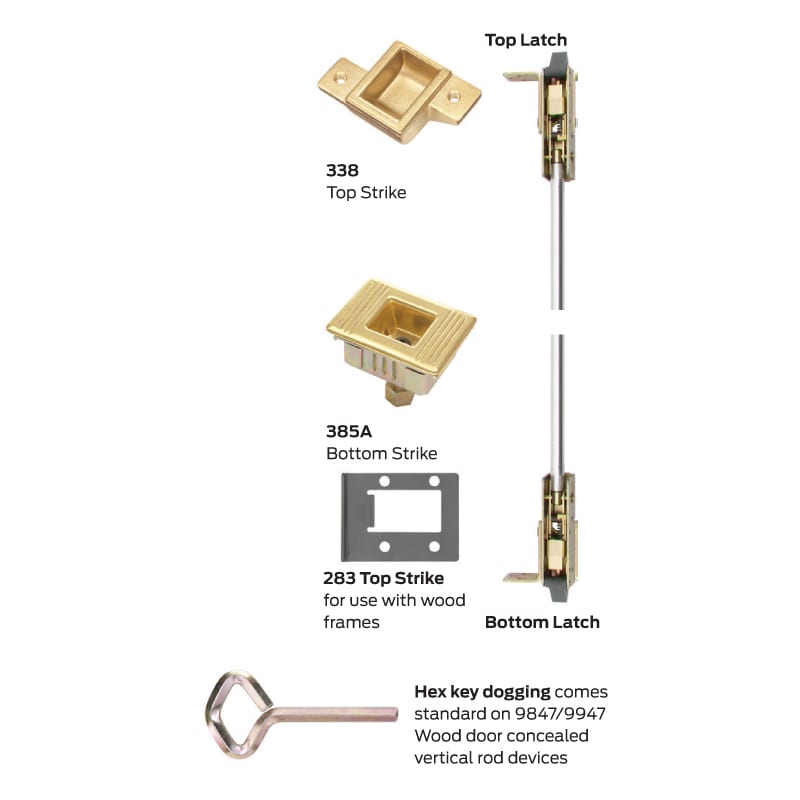

Top – 338 - Unfinished Bottom – 385A - Unfinished |
| Usage |
Heavy Duty |
| Vertical Rods |
Top rod adjustable from 6'8" to 8'4". Bottom rod adjustable 35-5/8" to 49-5/8" |
