Product Overview

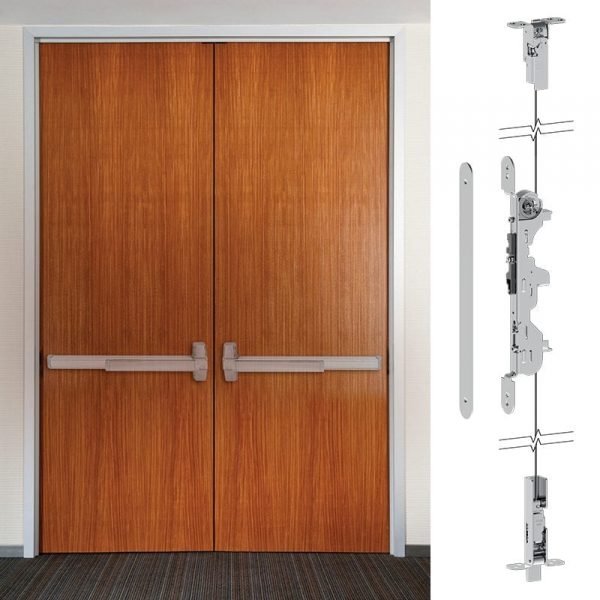

The Von Duprin wood door concealed (WDC) system is designed specifically for wood door applications where exit devices are required. Instead of traditional rods, concealed vertical cables are utilized. Making use of this proven technology enables quick installation and allows for easy maintenance.
This WDC system provides superior security without compromising aesthetics. The innovative latch design provides superior strike engagement and deadlocking without the need for additional hardware. In addition, the prep for concealed cables requires less material to be removed, which protects the structural integrity of the wood door. This allows the hardware to be more discrete than traditional concealed vertical rod systems that require unsightly metal wraps.
- EO = Exit Only, ANSI Function 01 (98/99 Series Outside Trim Sold Separately)

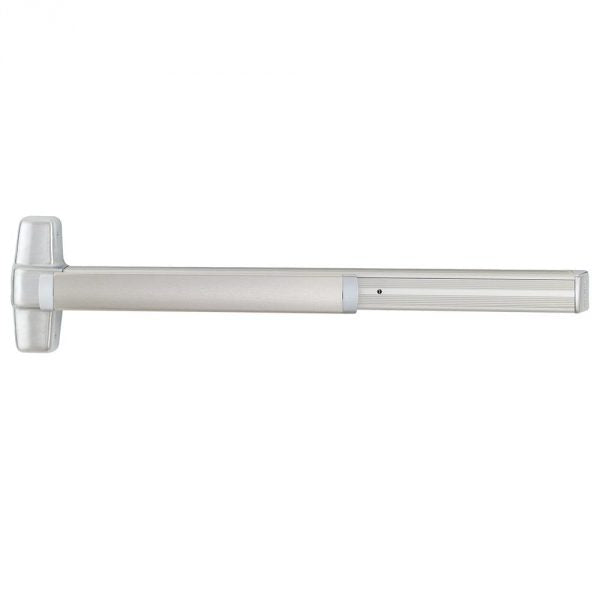

- US26D Satin Chrome Finish
- For nominal door heights of 6'8" to 7'0"

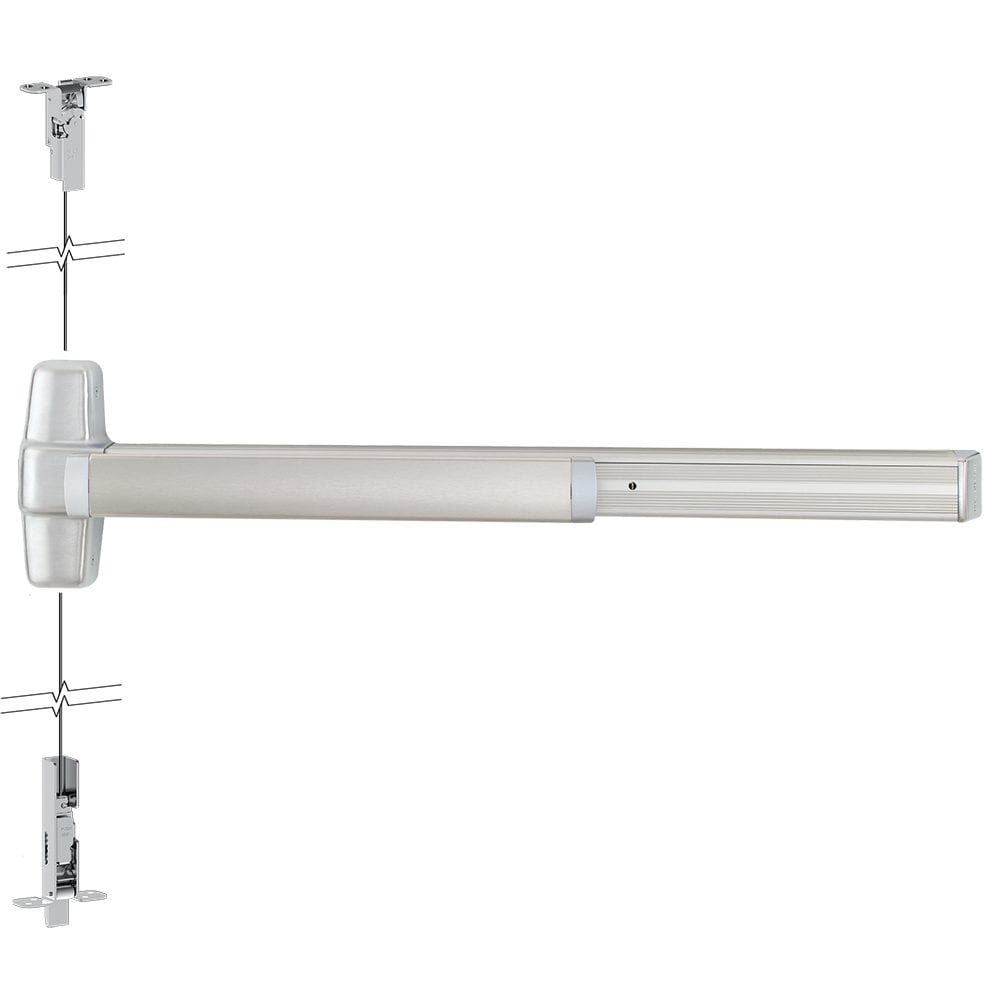

- Concealed vertical cables instead of rods for quick installation and adjustment
- Latches are designed for optimized door prep, retaining the structural integrity of the door
| ANSI Grade |
Certified ANSI A156.3-2001 Grade 1 standards |
|---|---|
| Brand |
Von Duprin |
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
| Center Case |
8" x 2-3/4" x 2-3/8" |
| Device Type |
Concealed Cable Device |
| Dogging Feature |
Half turn hex dogging standard |
| Door Applications |
1-3/4" to 2-1/4" Thick Wood Doors |
| Fasteners |
Includes screw pack for 1-3/4" to 2-1/4" thick wood doors |
| Finish |
Satin Chrome |
| Finishes |
US26D (626) Satin Chrome |
| Fire Rating |
None |
| Hand |
Non-handed |
| Latchbolt |
Deadlocking top and bottom bolt. 1-1/2" throw |
| Length |
4'0" (3'1" to 4'0" Doors)3'0" (2'4" to 3'0" Doors) |
| Projections |
Pushbar Neutral – 3-13/16" - Pushbar Depressed – 3-1/16" |
| Stile Type |
Wide (Standard) |

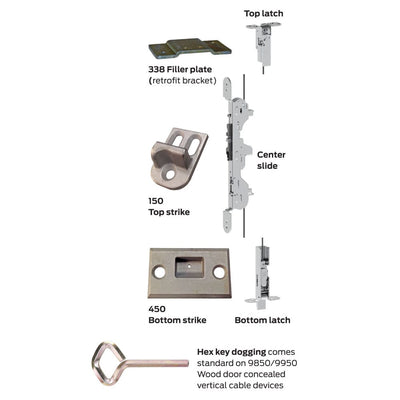

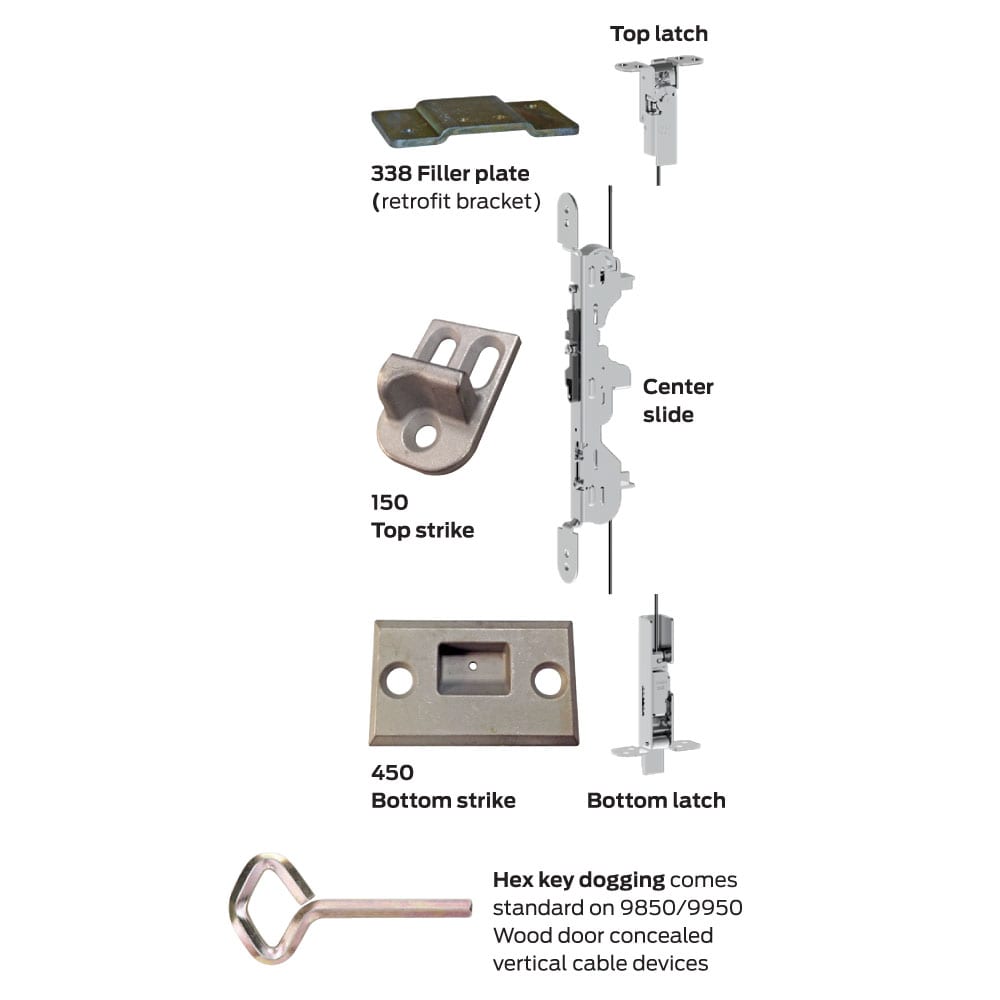

| Strike |
Top - 150 Bottom - 450 |
| Trim |
None - Exit Only (Outside Trim Sold Separately) |
| Usage |
Heavy Duty |
