Product Overview

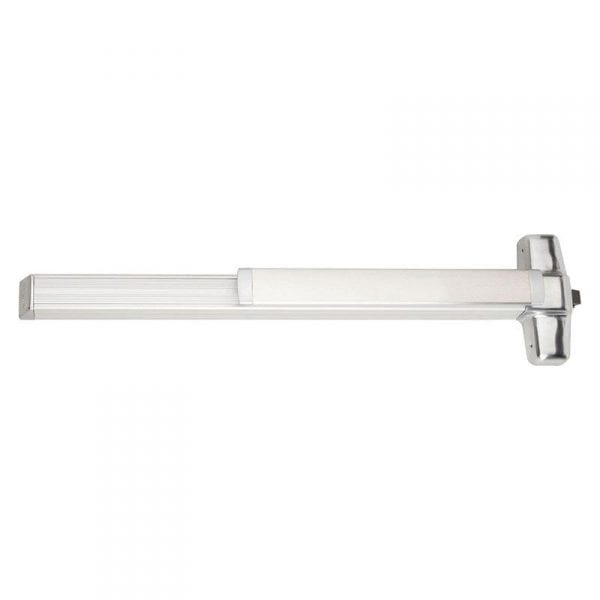

Von Duprin QEL99EO-F Grade 1 Rim Exit Bar, Wide Stile Pushpad, Exit Only, Fire-Rated, Less Trim, Motorized Latch Retraction, Less Dogging
Quiet electric latch retraction (QEL) provides electronic control of an exit device for environments where limited operational noise is desired. The QEL option is Von Duprin’s solution of choice for hospitals, libraries, museums and theaters where ambient noise can be disruptive.

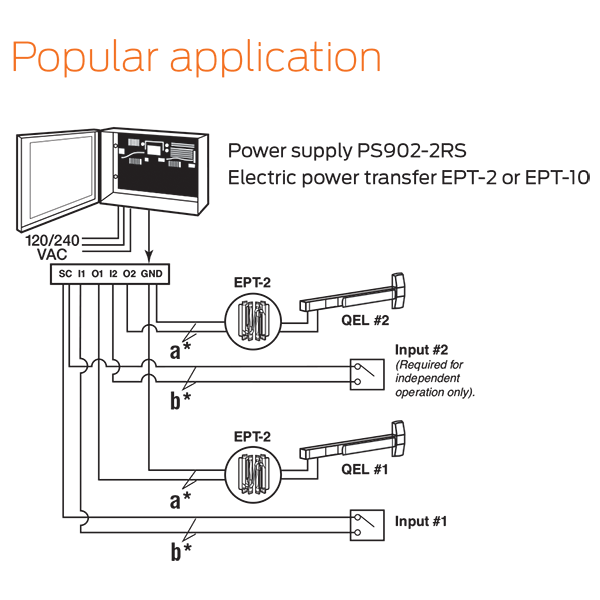

These devices always provide mechanical egress. The electrified latch retraction can also be activated by an access system or building automation system to unlatch the exit device momentarily. Often the QEL is used with a credential reader and access control system to unlock the door momentarily for authorized users.
- Energy-efficient motorized latch retraction utilizes standard 2 amp power supply, enabling longer wire runs from power source
- Quiet operation in both mechanical and electronic states
- Modular design allows for a simplified installation
- Pushbar is pulled in electronically for quieter operation when dogged
- UL listed fire exit hardware, up to 3 hours
| ANSI Grade |
Certified ANSI A156.3-2001 Grade 1 standards |
|---|---|
| Brand |
Von Duprin |
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
| Center Case |
8" x 2-3/4" x 2-3/8" |
| Dogging Feature |
No Manual Dogging - Electric Latch Retraction |
| Door Applications |
1-3/4″ Thick Doors |
| Electric Options |
Quiet Electric Latch Retraction |
| Fasteners |
Includes screws for metal and wood doors |
| Finish |
Anodized AluminumSatin ChromeBright ChromeBlackDark BronzeSatin BrassBright BrassSatin Bronze |
| Finishes |
313 Duranodic Dark BronzeUS10 (612) Satin BronzeUS28 (628) Anodized AluminumUS19 (315) Flat BlackUS3 (605) Bright BrassUS26D (626) Satin ChromeUS4 (606) Satin BrassUS26 (625) Bright Chrome |
| Fire Rating |
UL listed A or B label Fire-Rated (3 Hours) |
| Hand |
Non-handed |
| Includes Trim |
No |
| Latchbolt |
Deadlatching 3/4" throw |
| Length |
4'0" (3'1" to 4'0" Doors)3'0" (2'4" to 3'0" Doors) |
| Projections |
Pushbar Neutral – 3-13/16" - Pushbar Depressed – 3-1/16" |
| Stile Type |
Wide (Standard) |
| Strike |
299F fire-rated roller strike |
| Usage |
Heavy Duty |
